Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant economizers. Glan Chemicals guarantees cooperation.

Jining Green Chemical Technology Co., Ltd. (abbreviated to Jining Green Cleaning Co.) was established in 2010 and specializes in cleaning various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial equipment, corporate chemical equipment, power station equipment, boiler condensers, boilers, and economizers. We also handle air conditioning cleaning, heat exchange equipment cleaning, and cleaning for machinery and chemical equipment. In addition, we offer cleaning and descaling services for refrigeration and heating equipment.

Open Channel Cleaning

No two ash pipes can form a loop during cleaning; only single-pipe open circuit cleaning is allowed. The method involves connecting one end of the ash pipe to the cleaning unit, continuously preparing a certain concentration of cleaning solution in the mixing tank, and then continuously or intermittently injecting it into the ash pipe. This process requires adding cleaning equipment while the system is shutdown, which increases costs.

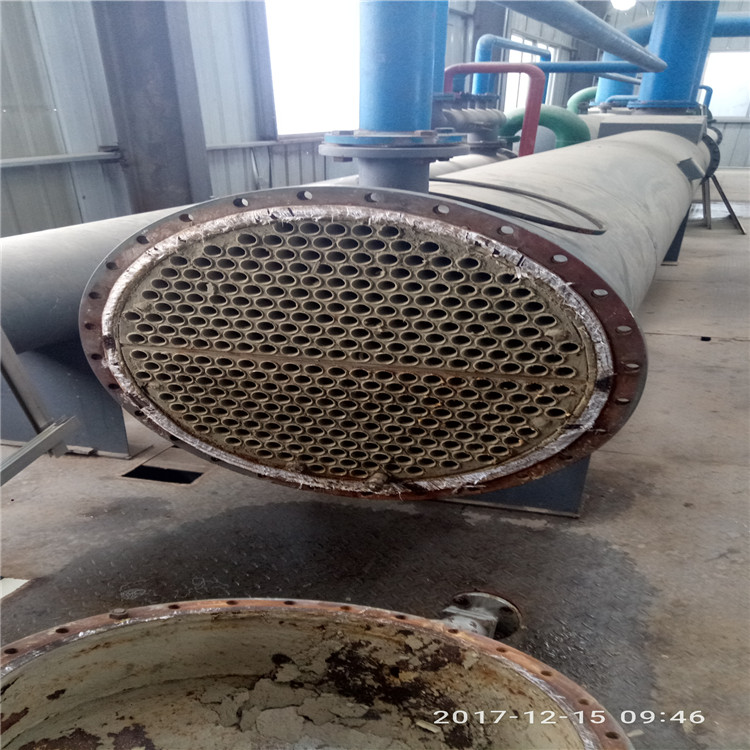

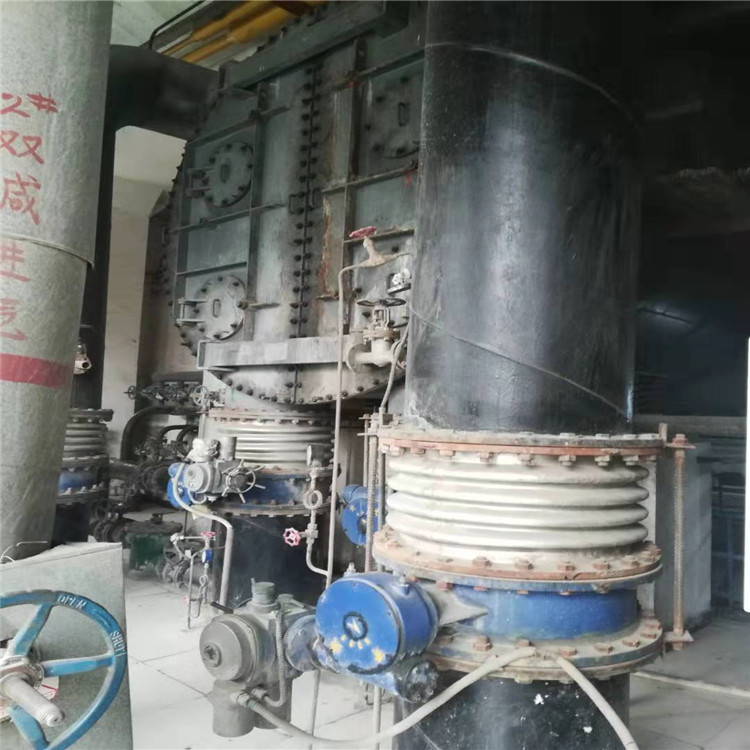

Condenser Cleaning in Changle, Weifang, Shandong

Continuous operation cleaning

This process involves continuously injecting a certain amount of acidic solution while operating under normal ash transport conditions without stopping. Simultaneously, a certain amount of ash-pipe cleaning inhibitor and pipeline cleaning descaler are added to the ash transport line. This is an open-loop cleaning process. The main function of the cleaning additive is to promote the reaction between the acidic solution and ash scale at a specific concentration and flow rate, while also increasing its solubility in water and reducing the formation of air blockages, ensuring the quality of ash pipe cleaning.

The procedure is: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaner based on the sludge water flow rate and acidity. During cleaning, take a sample at the front end of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stages of cleaning, take a sample at the end of the sludge pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.

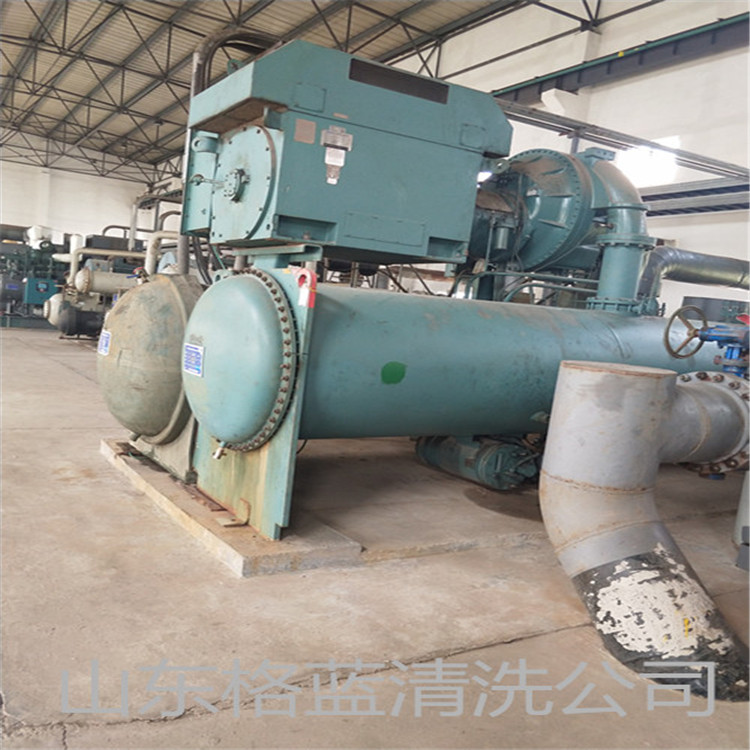

Cooler Cleaning in Changle, Weifang, Shandong

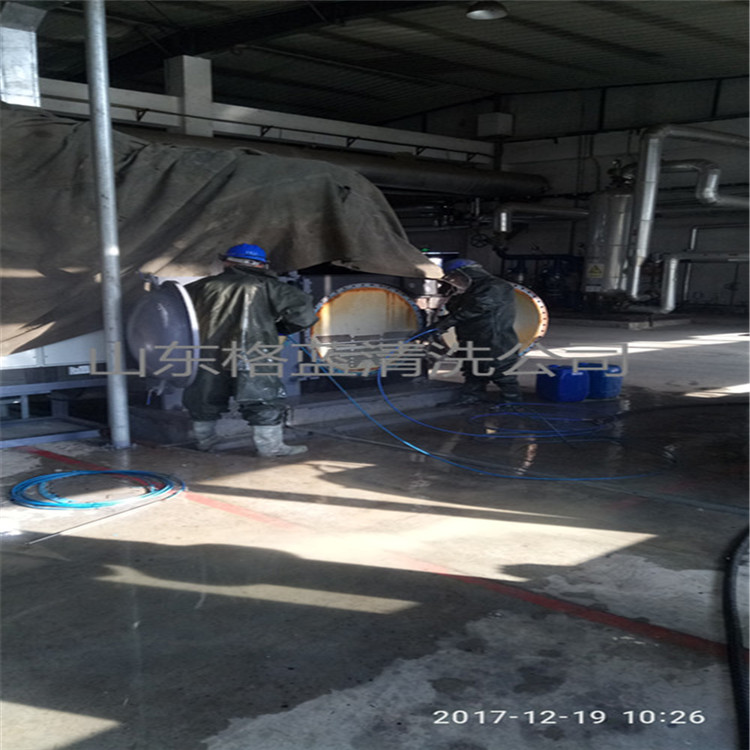

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers high efficiency, low costs, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
Advantages of high-pressure water technology include:

(1) Excellent Cleaning Quality: High-pressure water jet cleaning of pipes and heat exchanger bores can completely remove scale and blockages inside, revealing the metal substrate. The high-pressure water jet, with its immense energy and supersonic speed, can fully destroy tough scale and blockages without causing any damage to the metal.

High-pressure water cleaning will not damage the substrate being cleaned due to the pressure being less than the metal's compressive strength grade.
Cooler Cleaning, Shandong Weifang, Changle

(2) Fast Cleaning Speed: Due to the combined action of jet washing, wedging, shearing, and abrasion, scaling can be quickly dislodged and removed, making the cleaning speed several to tens of times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual methods.

Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemical must be rinsed off with clear water.
Condenser Cleaning - Changle, Weifang, Shandong

(3) No Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards. Therefore, it does not cause any pollution.

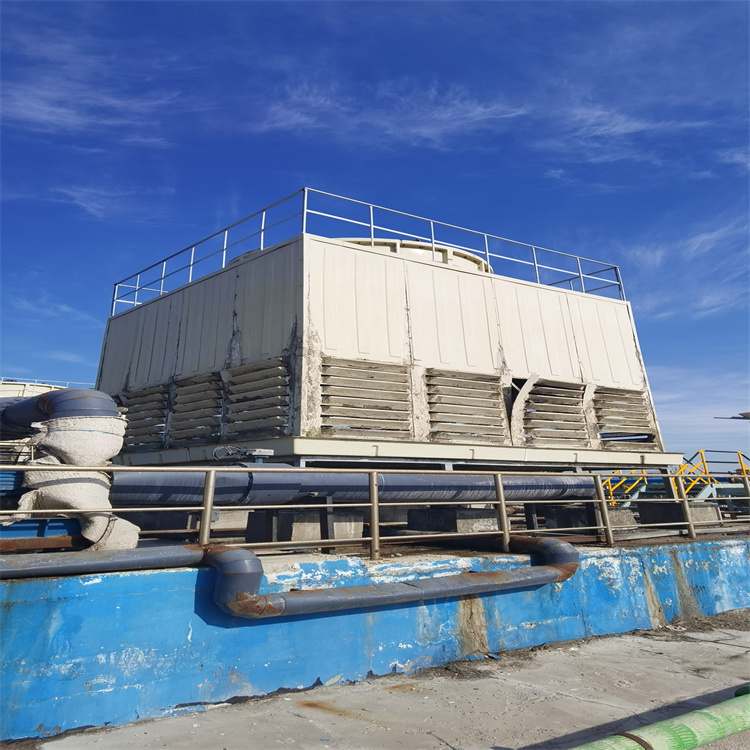

Cooling Condenser Cleaning - Changle, Weifang, Shandong

Pipe Scale

(1) Classified by chemical composition, it includes carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.
Cooler Cleaning, Shandong Weifang, Changle

(2) Categorized by physical properties, there are two types: scale that is firmly adhered to the pot shell and pipe walls, and sediment that is loosely textured and easily detached.
Scale primarily forms due to the precipitation and adherence of salts like calcium and magnesium from the boiler feedwater onto the metal surface upon heating. The thermal conductivity of scale is very low, approximately 2 to 5 times that of ordinary steel. Scale buildup on the boiler's heat transfer surface significantly deteriorates heat transfer efficiency, affects the boiler's performance; it can easily lead to metal material damage due to localized overheating, even causing pipe explosion accidents; it also accelerates galvanic corrosion, leading to pipeline scale corrosion and speeding up the deterioration of the heat transfer surface. Once scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning - Choose Green Chemicals for Reliability
