Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant equipment condensers - Glan Chemicals offers guaranteed cooperation.

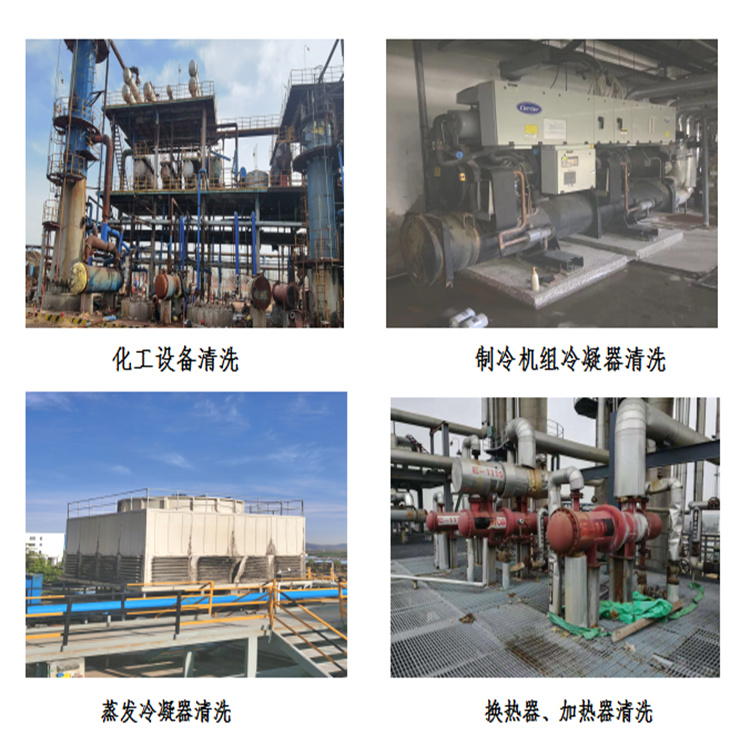

Jining Green Chemical Technology Co., Ltd. (abbreviated to Jining Green Cleaning Co.) was established in 2010 and specializes in the cleaning of various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power station equipment, condensers at power plants, boilers, and economizers. We also handle air conditioning cleaning, heat exchange equipment cleaning, and cleaning of machinery and chemical equipment. Additionally, we provide cleaning services for refrigeration equipment and heating equipment, including descaling.
Jining Greentech Cleaning Co. has dozens of cleaning machines of various models ranging from 10mpa to 250mpa, and more than a dozen chemical cleaning pump stations. We primarily serve power plants, chemical factories, oil refineries, food processing plants, corporate entities, and heating equipment. The company also offers long-term industrial heat exchanger cleaning and solution design services to clients in the industry.
Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.
Chemical cleaning scale removal process:
Recirculating Closed Loop Cleaning
Recirculating cleaning utilizes two original parallel ash pipelines to form a loop, creating a circulation system with the cleaning pump station. It introduces a certain concentration of acidic solution, which circulates within the ash water pipeline for cleaning. Additionally, as the acid washing reaches a certain level, the solution is continuously replenished with more acid. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out during shutdown and is complex and costly.
Open road cleaning
No two gray pipes can form a loop during cleaning; only a single gray pipe can be used for open-loop cleaning. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the dosing tank, and then injecting it into the gray pipe continuously or intermittently. This process requires the addition of cleaning equipment during shutdown, which increases costs.
Continuous operation cleaning
The process involves continuously injecting a specific amount of acidic solution while also introducing a certain quantity of running ash pipe cleaning inhibitor and pipeline descaling agent. This is an open-circuit cleaning method. The primary function of the cleaning aid is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also enhancing its solubility in water and reducing the occurrence of gas blockage, ensuring the quality of ash pipe cleaning.
The procedure is: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the ash conveying pipeline by considering the sludge flow rate and acidity. During cleaning, take a sample at the front of the ash pipeline every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, test the pH value at the end of the ash pipeline every 15 minutes. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.
2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental protection, ease of operation, and safety.
High-pressure water technology boasts the following advantages.
(1) Excellent Cleaning Quality: The high-pressure water jet cleaning method for pipes and the internal holes of heat exchangers can completely remove scale and blockages inside the pipes, revealing the metal substrate. The high-pressure water jet, with its immense energy and supersonic speed, is capable of completely destroying tough scale and blockages without causing any damage to the metal.
Since the pressure of high-pressure water is less than the compressive strength grade of metal, high-pressure cleaning will not damage the substrate being cleaned.
(2) Fast Cleaning Speed: Due to the combined action of water jet scouring, wedging, shearing, and grinding, scale can be quickly broken and removed, making the cleaning speed several to ten times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual methods.
Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemicals must be rinsed off with clear water.
(3) No Environmental Pollution: Since high-pressure water jet cleaning uses pure water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. Nor does it generate a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet, using pure water, is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ using other methods to below the national safety standards, thus causing no pollution.
3. Pipe Scale
(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.
(2) Categorized by physical properties, there are two types: scale that firmly adheres to the pot shell and tube walls, and sediment that is loosely textured and easily detachable.
Scale primarily forms due to the salts like calcium and magnesium in the boiler feed water precipitating and adhering to the metal surface upon heating. The thermal conductivity of scale is very low, around 2 to 5 times that of ordinary steel. Scale accumulation on the boiler heating surface severely degrades heat transfer efficiency, affecting boiler performance; it can easily cause metal materials to burn due to localized overheating, even leading to tube explosion accidents; it also accelerates galvanic corrosion, causing pipeline scale corrosion and speeding up the damage to the heating surface. Once scale forms, it should be removed promptly using mechanical or chemical methods.
Heat Exchanger and Refrigeration Equipment Cleaning - Choose GreenChem for Assurance
