Power Plant Condenser Cleaning in Shandong Jining Liangshan

Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant economizers. GlanChem cooperation is guaranteed.

Jining Greentech Chemical Technology Co., Ltd. (简称 Jining Greentech Cleaning Co.) was established in 2010 and specializes in the cleaning of various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power station equipment, condensers, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle cleaning and descaling for refrigeration and heating equipment.

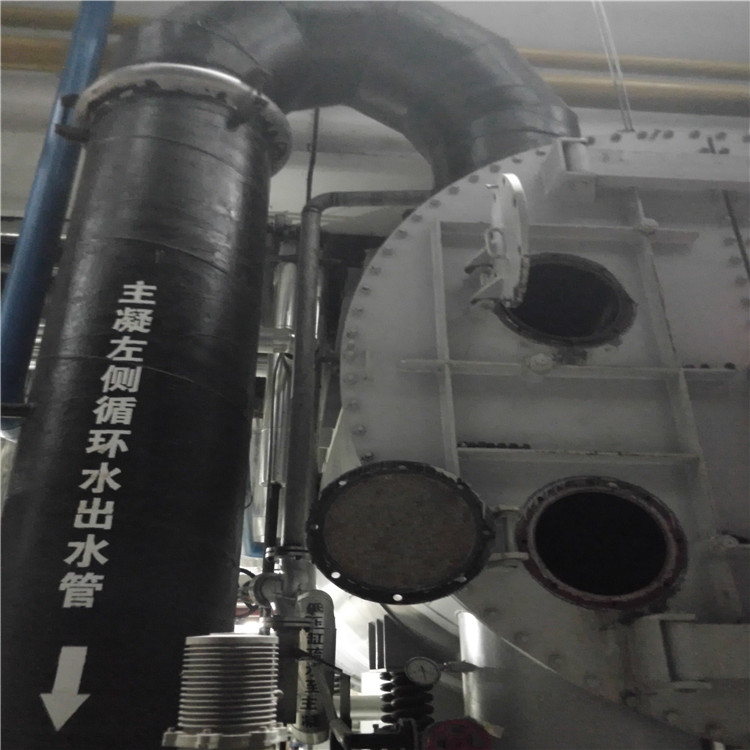

Steam Turbine Condenser Cleaning in Liangshan, Jining, Shandong

Jining Grean Cleaning Co. has dozens of cleaning machines with various models ranging from 10mpa to 250mpa, and over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to standardize and normalize the cleaning of heat exchange equipment.

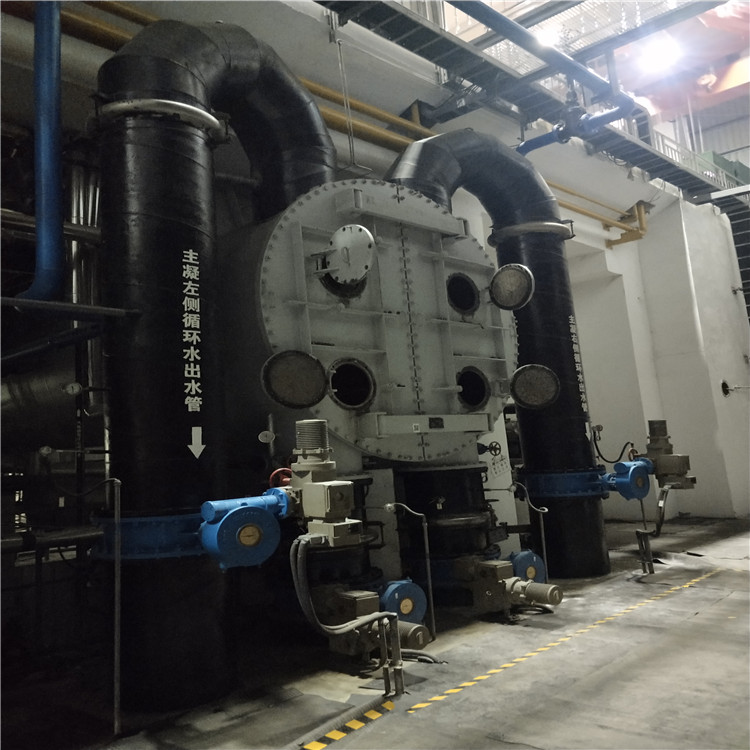

Steam Turbine Condenser Cleaning in Liangshan, Jining, Shandong

Chemical cleaning descaling process:

Recirculating Closed Loop Cleaning

Recirculating cleaning utilizes two existing parallel ash piping lines to form a loop, creating a recirculation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates through the ash water pipes for cleaning. As the acid washing reaches a certain level, the solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.

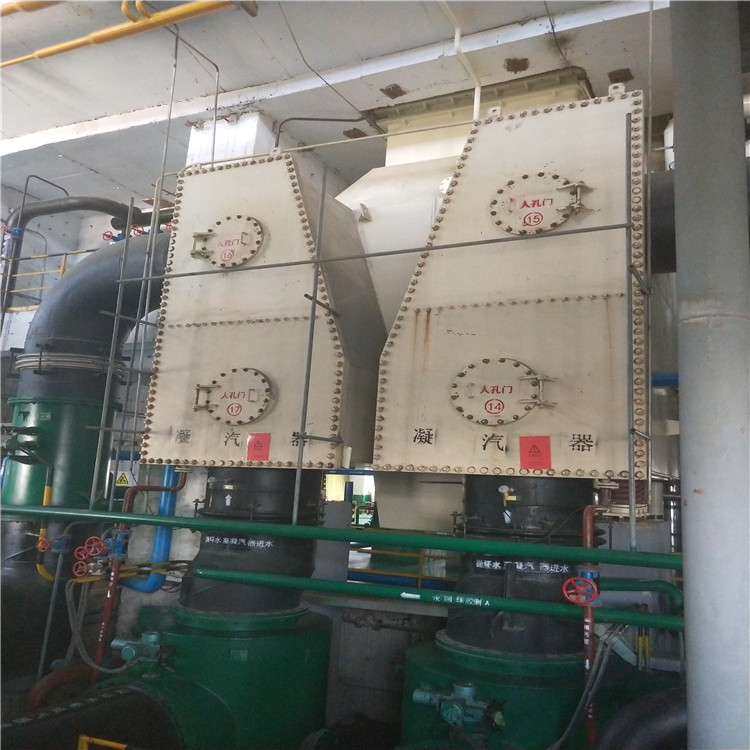

Steam Turbine Condenser Cleaning in Liangshan, Jining, Shandong

Open Channel Cleaning

No two grey pipes can form a loop during cleaning; only a single grey pipe can be used for open-circuit cleaning. The method involves connecting one end of the grey pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the dosing tank, and then injecting it into the grey pipe continuously or intermittently. This process requires the addition of cleaning equipment during shutdown, which increases costs.

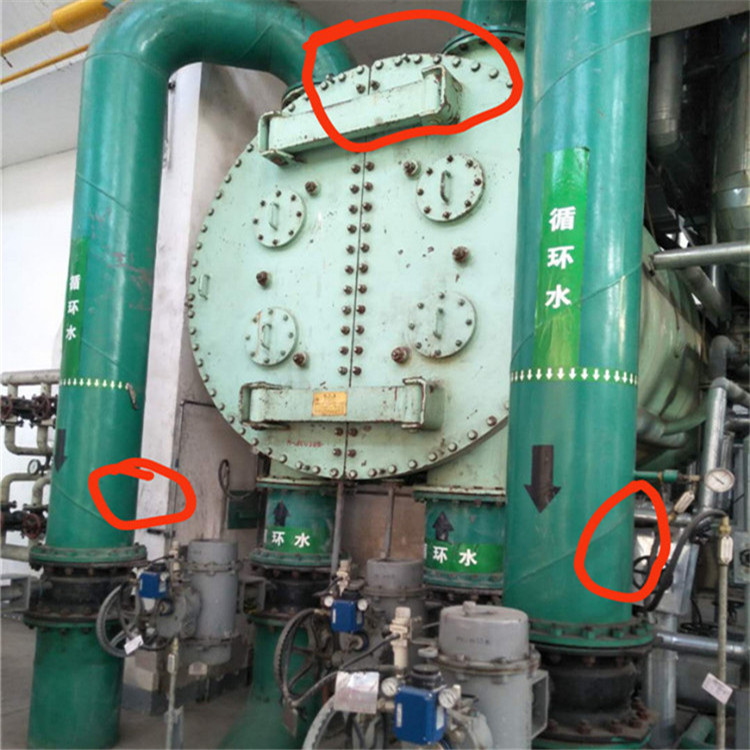

Steam Turbine Condenser Cleaning in Liangshan, Jining, Shandong

Non-stop cleaning

The process involves continuously injecting a certain amount of acidic solution while running, without interrupting the normal ash conveying of the ash pipe. Simultaneously, a certain quantity of ash conveying pipe running cleaning inhibitor and pipeline descaling agent is added for open circuit cleaning. The main function of the cleaning aid is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while increasing its solubility in water and reducing the generation of gas resistance, ensuring the cleaning quality of the ash pipe.

Operation method: Before cleaning, first estimate the required acid quantity based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate for running the inhibitor and pipeline cleaner stripping agent based on the sludge water flow rate and acidity. During cleaning, collect a sample at the front of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the flow rate of acid addition. In the later stage of cleaning, collect a sample at the end of the sludge pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be considered complete.
Coal-fired power plant condenser cleaning in Liaocheng, Shandong

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers high efficiency, low costs, non-damaging to workpieces, environmental friendliness, ease of operation, and safety benefits.
High-pressure water technology boasts the following advantages.

(1) High-quality Cleaning: Our high-pressure water jet cleaning for pipelines and heat exchanger bores can completely remove all scaling and obstructions, revealing the metal surface. The high-pressure water jet, with its immense energy and ultra-sonic speed, is fully capable of breaking down tough scaling and obstructions without causing any damage to the metal.

High-pressure water cleaning will not damage the base material being cleaned, as the pressure is less than the compressive strength grade of metal.
Power Plant Condenser Cleaning in Liangshan, Jining, Shandong

(2) Fast Cleaning Speed: Due to the combined action of abrasive, wedge splitting, shearing, and grinding from the water jet, scaling can be quickly broken and removed, which is several to ten times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual cleaning methods.

Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemical agents must be rinsed off with clean water.
Coal-fired power plant condenser cleaning in Shandong Jining Liangshan

(3) No Environmental Pollution: Since high-pressure water jet cleaning uses pure water as the medium, it does not generate a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not produce a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water as the medium is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust from 80mg/m³ with other methods to below the national safety standards. Therefore, it does not cause any pollution.

Coal-fired power plant condenser cleaning Shandong Jining Liangshan

3. Pipe Scale

(1) Categorized by chemical composition, they include carbonate scale, sulfate scale, silicate scale, and mixed scale, among others. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the primary components of sulfate and silicate scales are calcium sulfate and silicate compounds, respectively; mixed scale is typically a mixture of the three aforementioned types.
Steam Turbine Condenser Cleaning in Liangshan, Jining, Shandong

(2) Categorized by physical properties, there are two types: scale that is firmly adhered to the pot shell and tube walls, and sediment that is loosely textured and easily removable.
Lime scale primarily forms due to the salts like calcium and magnesium present in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times that of ordinary steel. When lime scale accumulates on the boiler's heat transfer surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to local overheating, potentially leading to tube explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heat transfer surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning - Choose GreenChem for Reliability
