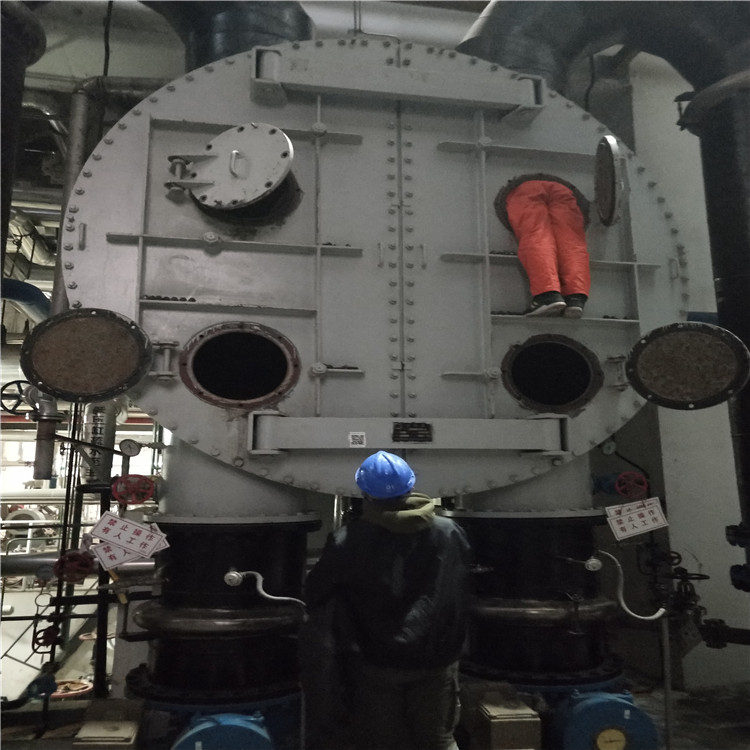

Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant equipment condensers. GlanChem Co. offers guaranteed cooperation.
Jining Green Chemical Technology Co., Ltd. (abbreviated to Jining Green Cleaning Co.) was established in 2010 and specializes in the cleaning of various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to research and develop industrial cleaning technologies. We undertake cleaning services for industrial, private enterprise, corporate chemical equipment, power plant equipment, condensers, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle cleaning and descaling of refrigeration and heating equipment.
Jining Grean Cleaning Co. has dozens of cleaning machines with various models ranging from 10mpa to 250mpa, as well as over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.
Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry, which has standardized and regulated the cleaning process for heat exchange equipment.
Chemical Cleaning Scale Removal Process
Recirculating closed-loop cleaning
Recirculating cleaning utilizes two existing parallel ash piping lines to form a loop, creating a recirculation system with the cleaning pump station. It involves adding a certain concentration of acidic solution, which circulates through the ash water pipes for cleaning. As the acid cleaning decreases to a certain level, the solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to create a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex and costly.
Open Road Cleaning
No two grey pipes can form a loop during cleaning; only single grey pipe open circuit cleaning is allowed. The method involves connecting one end of the grey pipe to the cleaning device, continuously preparing a certain concentration of cleaning solution in the solution tank, and then injecting it into the grey pipe continuously or intermittently. This process requires additional cleaning equipment during shutdown, resulting in higher costs.
Continuous cleaning without shutdown
The process involves continuously injecting a certain amount of acidic solution while operating under normal ash transport conditions, simultaneously introducing a certain quantity of ash transport pipeline cleaning inhibitor and pipeline descaling agent. This is an open-circuit cleaning process. The main function of the cleaning aids is to promote the reaction between the acidic solution and the ash scale at a certain concentration and flow rate, while also increasing its solubility in water, reducing the generation of air blockage, and ensuring the quality of ash pipeline cleaning.
The procedure is as follows: Before cleaning, estimate the required acid quantity based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaning agent by considering the sludge flow rate and acidity. During the cleaning process, take a sample at the front end of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, test the pH value at the end of the sludge pipe every 15 minutes. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed complete.
2. High-pressure water jet cleaning machinery:
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental protection, ease of operation, and safety.
Advantages of high-pressure water technology include:
(1) Excellent Cleaning Quality: High-pressure water jet cleaning of pipe and heat exchanger bores can completely remove scale and obstructions from inside the pipes, revealing the metal surface. The high-pressure water jet, with its immense energy and supersonic speed, can fully destroy tough scale and obstructions without causing any damage to the metal.
Due to the pressure of high-pressure water being less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.
(2) Fast Cleaning Speed: Due to the combined effects of jet washing, wedge splitting, shearing, and grinding, scaling can be quickly broken and removed, making the cleaning speed several to ten times faster than traditional chemical methods, sandblasting, simple mechanical, and manual methods.
Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemical must be rinsed off with clean water.
(3) No Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the air and harm health. Nor does it generate a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning using pure water is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust levels from 80mg/m³ using other methods to below the national safety standards, thus ensuring no pollution is caused.
Pipe Scale
(1) Classified by chemical composition, it can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale, among others. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types of scales.
(2) Categorically classified by physical properties, there are two types: scale that is firmly adhered to the pot shell and pipe walls, and sediment that is loosely textured and easily removable.
Lime scale primarily forms due to the salts of calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. The thermal conductivity of lime scale is very low, approximately 2 to 5 times that of ordinary steel. Lime scale on the boiler's heating surface significantly worsens heat transfer efficiency, affecting the boiler's performance; it can easily cause metal materials to burn due to local overheating, potentially leading to pipe explosion accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion and speeding up the damage to the heating surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.
Heat Exchanger and Refrigeration Equipment Cleaning - Choose Greentech Chemicals for Reliability
