Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. offers guaranteed cooperation.
Jining Green Chemical Technology Co., Ltd. (abbreviated to Jining Green Cleaning Co.) was established in 2010 and specializes in the cleaning of various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to develop industrial equipment cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power station equipment, power plant condensers, boilers, and boiler air preheaters; as well as air conditioning cleaning, heat exchange equipment cleaning, and the cleaning of machinery and chemical equipment. We also handle the cleaning of refrigeration and heating equipment for scale removal.
Jining Grean Cleaning Co. has dozens of cleaning machines ranging from 10mpa to 250mpa and over a dozen chemical cleaning pump stations. Our main services are provided to power plants, chemical factories, oil refineries, food processing plants, corporate entities, heating equipment, and more. The company also offers long-term industrial heat exchanger cleaning and design solutions to industry clients.
Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry, enabling the cleaning of heat exchange equipment to be standardized and standardized.
Chemical descaling process:
Recirculating Closed Loop Cleaning
Recirculation cleaning utilizes two original parallel ash pipeline lines to form a loop, creating a circulation system with the cleaning pump station. A certain concentration of acidic solution is added, which circulates within the ash water pipes for cleaning. As the acid washing decreases to a certain extent, the acidic solution is continuously replenished. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be laid to form a recirculation loop for cleaning. This process must be carried out while the system is offline, and it is complex and costly.
Pilot cleaning
No two gray pipes should form a loop during cleaning; only a single gray pipe should be used for open circuit cleaning. The method involves connecting one end of the gray pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the mixing tank, and then injecting it into the gray pipe continuously or intermittently. This process requires additional cleaning equipment during shutdown, resulting in higher costs.
Continuous cleaning without shutdown
This process involves continuously injecting a certain amount of acidic solution while operating the ash conveying pipeline, simultaneously adding a specific quantity of ash conveying pipeline cleaning inhibitor and pipeline descaling agent. This is an open-loop cleaning method. The main function of the cleaning aids is to promote the reaction between the acidic solution and ash scale at a certain concentration and flow rate, while also increasing its solubility in water, reducing the formation of airlock, and ensuring the quality of ash pipeline cleaning.
The procedure is as follows: Before cleaning, first estimate the required acid amount based on the total scale in the pipeline. Then, calculate the acid addition rate and the flow rate of the descaling agent and pipeline cleaning agent according to the sludge water flow rate and acidity. During cleaning, collect a sample at the front of the sludge pipe every 30 minutes to test the acidity and strictly control it by adjusting the acid flow rate. In the later stage of cleaning, take a sample at the end of the sludge pipe every 15 minutes to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be considered complete.

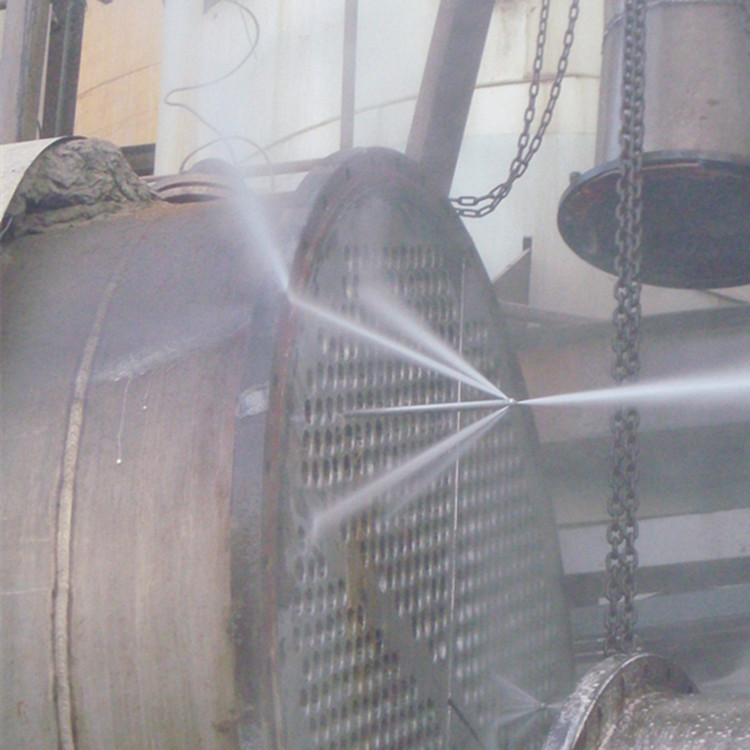

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
High-pressure water technology boasts the following advantages.
(1) Superior Cleaning Quality: During the high-pressure water jet cleaning of pipe and heat exchanger bores, all scaling and blockages inside the pipes can be thoroughly removed, revealing the metal surface. The high-pressure water jet, with its immense energy and supersonic speed, can completely break down tough scaling and blockages without causing any damage to the metal.
Due to the pressure of high-pressure water being less than the compressive strength grade of metal, high-pressure cleaning will not damage the base material being cleaned.
(2) Rapid Cleaning Speed: Due to the combined abrasive actions of water jetting, wedge splitting, shearing, and grinding, scale can be quickly broken and removed, which is several to tens of times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual cleaning methods.
Additionally, parts cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface chemicals must be rinsed off with clean water.
(3) No Environmental Pollution: As high-pressure water jet cleaning uses pure water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the air and harm health. Nor does it generate a large volume of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning with pure water is odorless, tasteless, and non-toxic. After atomization, the spray can also reduce the dust concentration in the work area, lowering atmospheric dust levels from 80mg/m³ using other methods to below the national safety standards, thus causing no pollution.
Pipe Scale
(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale, among others. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively; mixed scale is usually a mixture of the above three types.
(2) Categorized by physical properties, there are two types: scale that firmly adheres to the pot shell and pipe walls, and sediment that is loosely textured and easily detached.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feedwater precipitating and adhering to the metal surface upon heating. The thermal conductivity of lime scale is very low, around 2 to 5 times that of ordinary steel. Lime scale on the boiler heating surface significantly worsens heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to local overheating, potentially leading to accidents; it also accelerates galvanic corrosion, causing pipeline lime scale corrosion, and speeding up the deterioration of the heating surface. Once lime scale forms, it should be promptly removed using either mechanical or chemical methods.
