Scale Cleaning Shandong Weifang Anqiu

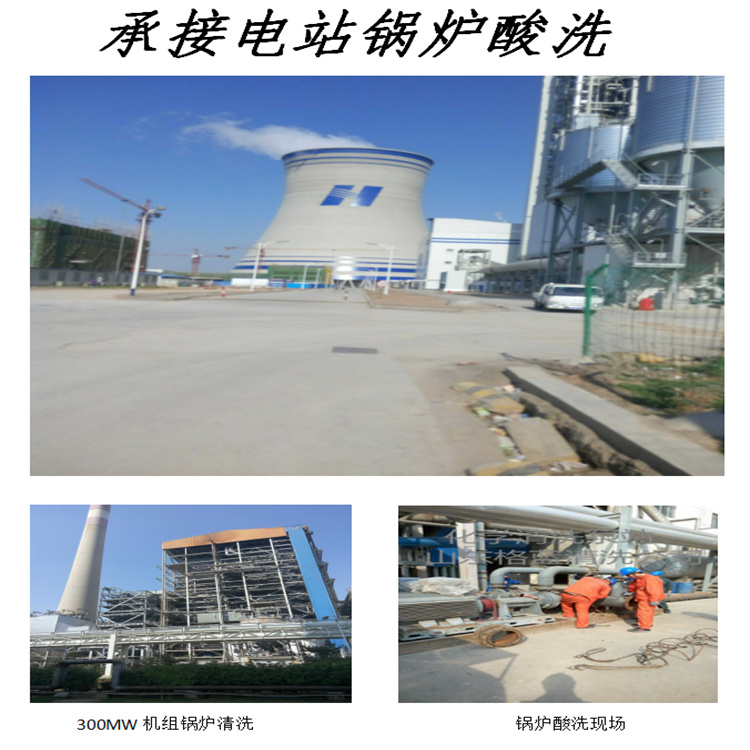

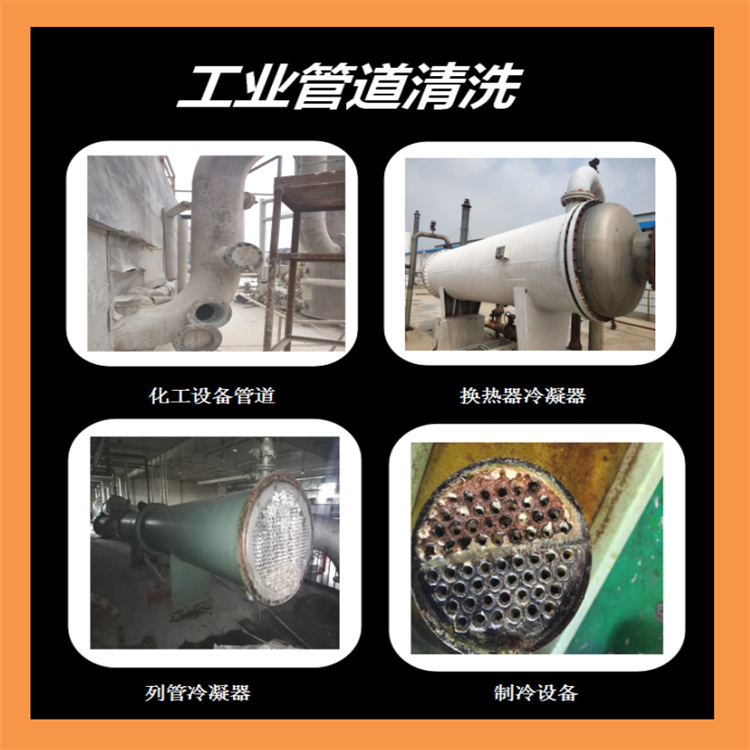

Clean various heat exchangers, condensers, industrial pipelines, boilers, and steam power plant condensers. Glan Chemical Co., Ltd. offers guaranteed cooperation.

Jining Green Chemical Technology Co., Ltd. (简称 Jining Green Cleaning Co.) was established in 2010 and is a professional company specializing in the cleaning of various industrial heat exchange equipment. The company boasts comprehensive business philosophy and the capability to develop industrial equipment cleaning technologies. We undertake cleaning services for industrial, private enterprise, and corporate chemical equipment, power plant equipment, condensers, boilers, and boiler air preheaters; as well as air conditioning and heat exchange equipment cleaning. We also handle the cleaning and descaling of refrigeration and heating equipment.

Jining Green Clean Company stocks dozens of cleaning machines with models ranging from 10MPa to 250MPa, and over a dozen chemical cleaning pump stations. Our primary services include power plants, chemical factories, oil mills, food factories, corporate entities, heating equipment, etc. The company also provides long-term industrial heat exchanger cleaning and solution design services for industry clients.

Our company has newly acquired domestic cleaning machines and imported cleaning equipment. We have hired experienced technical specialists in the cleaning industry to achieve standardized and standardized cleaning of heat exchange equipment.

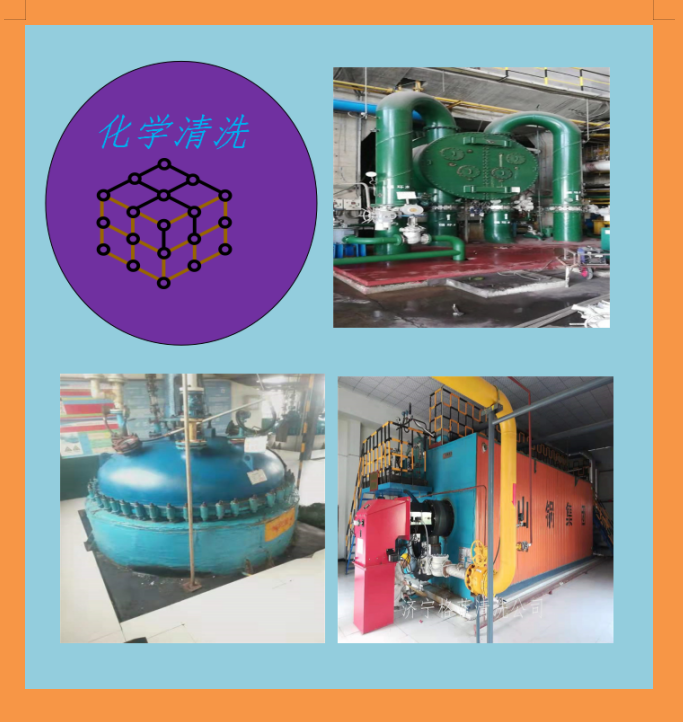

Chemical Cleaning Scale Removal Process

Recirculating Closed Circuit Cleaning

Recirculation cleaning utilizes two original parallel ash piping lines to form a loop, creating a circulation system with the cleaning pump station. A certain concentration of acidic solution is added, allowing it to circulate and clean within the ash water pipes. Additionally, as the acid washing decreases to a certain level, more acidic solution is continuously added. For short-distance single ash water pipelines, if conditions permit, a temporary pipeline can be installed to create a recirculation loop for cleaning. This process must be carried out while the system is shut down, and it is complex with higher costs.

Open channel cleaning

No two ash pipes should form a loop during cleaning; only a single ash pipe should be used for open circuit cleaning. The method involves connecting one end of the ash pipe to the cleaning unit, continuously preparing a specific concentration of cleaning solution in the blending tank, and then injecting it into the ash pipe continuously or intermittently. This process requires additional cleaning equipment during shutdown, leading to higher costs.

Continuous operation cleaning

The process involves continuously injecting a certain amount of acidic solution into the ash pipe while the normal ash transportation is not interrupted. At the same time, a certain quantity of ash pipe operating cleaning inhibitor and pipeline descaling agent are added. This is an open-circuit cleaning. The primary function of the cleaning aids is to promote the reaction between the acidic solution and ash deposits in a solution with specific concentration and flow rate, while also enhancing its solubility in water and reducing the generation of gas blockages, ensuring the quality of ash pipe cleaning.

The procedure is as follows: First, estimate the required acid amount based on the total scale in the pipeline before cleaning. Then, calculate the acid addition rate and the flow rate of the ash slurry pipeline by considering the flow rate and acidity of the gray water. During the cleaning process, collect a sample at the sampling point at the front of the ash pipe every 30 minutes to test the acidity and strictly control it by adjusting the flow rate of acid addition. In the later stage of cleaning, take a sample every 15 minutes at the end of the ash pipe to test the pH value. When the pH value reaches a certain level and remains unchanged for 30 minutes, the cleaning can be deemed completed.

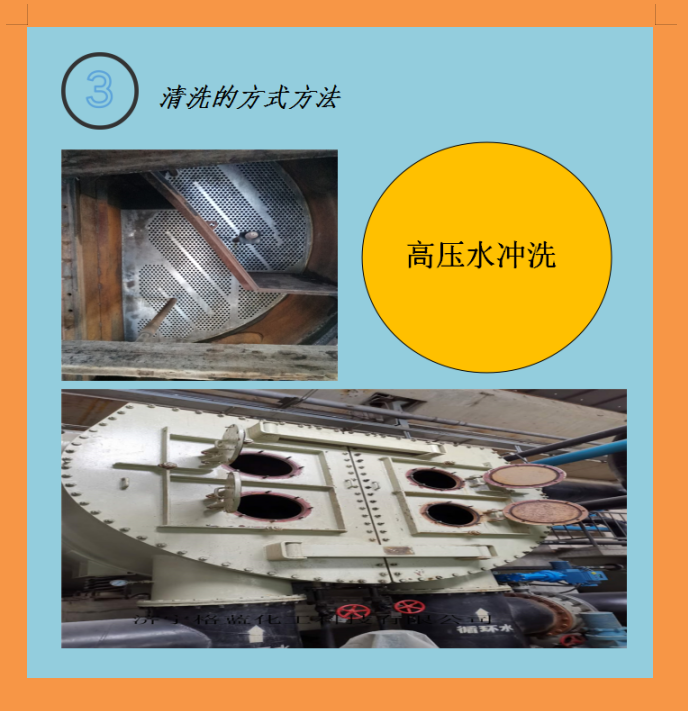

2. High-pressure water jet cleaning equipment
High-pressure water jet cleaning offers advantages such as high efficiency, low cost, non-damaging to workpieces, environmental friendliness, ease of operation, and safety.
Advantages of high-pressure water technology include:

(1) Excellent cleaning quality - High-pressure water jet cleaning of pipes and heat exchanger bores can thoroughly remove scale and obstructions inside, revealing the metal surface. The high-pressure water jet, with its immense energy and supersonic speed, can completely destroy tough scale and obstructions without damaging the metal.

High-pressure water cleaning will not damage the base material being cleaned, as the pressure is less than the compressive strength grade of the metal.

(2) Fast Cleaning Speed: Due to the combined effects of water jet washing, wedge splitting, shearing, and grinding, scale can be quickly broken and removed, which is several to ten times faster than traditional chemical methods, sandblasting and shot peening techniques, simple mechanical, and manual cleaning methods.

Components cleaned with high-pressure water jetting do not require secondary cleaning; however, after chemical cleaning, the surface must be rinsed with clean water.

(3) No Environmental Pollution - Since high-pressure water jet cleaning uses pure water as the medium, it does not produce a large amount of dust like sandblasting, shot blasting, or simple mechanical cleaning, which can pollute the atmosphere and harm health. It also does not generate a significant amount of waste liquid like some chemical cleaning methods, which can contaminate rivers, soil, and water quality. The water jet cleaning using pure water is odorless, tasteless, and non-toxic. After atomization, it can also reduce the dust concentration in the work area, lowering atmospheric dust levels from 80mg/m³ with other methods to below the national safety standards, thus causing no pollution.

3. Pipe Scale

(1) Classified by chemical composition, they can be categorized into carbonate scale, sulfate scale, silicate scale, and mixed scale, etc. The main components of carbonate scale are calcium carbonate and magnesium carbonate; the main components of sulfate scale and silicate scale are calcium sulfate and silicate compounds, respectively.

(2) Categorized by physical properties, there are two types: scale that is firmly adhered to the pot shell and tube walls, and sediment that is loosely textured and easily detached.
Lime scale primarily forms due to the salts like calcium and magnesium in the boiler feed water, which precipitate and adhere to the metal surface upon heating. Lime scale has a very low thermal conductivity, approximately 2 to 5 times less than ordinary steel. When lime scale accumulates on the boiler's heat transfer surface, it significantly worsens the heat transfer efficiency and affects the boiler's performance; it can easily cause metal materials to burn due to localized overheating, even leading to pipe explosion accidents; it accelerates galvanic corrosion, causing pipeline lime scale corrosion, and speeds up the damage to the heat transfer surface. Once lime scale forms, it should be promptly removed using mechanical or chemical methods.

Heat Exchanger & Refrigeration Equipment Cleaning - Choose Green Chemical for Confidence
