Product Name:

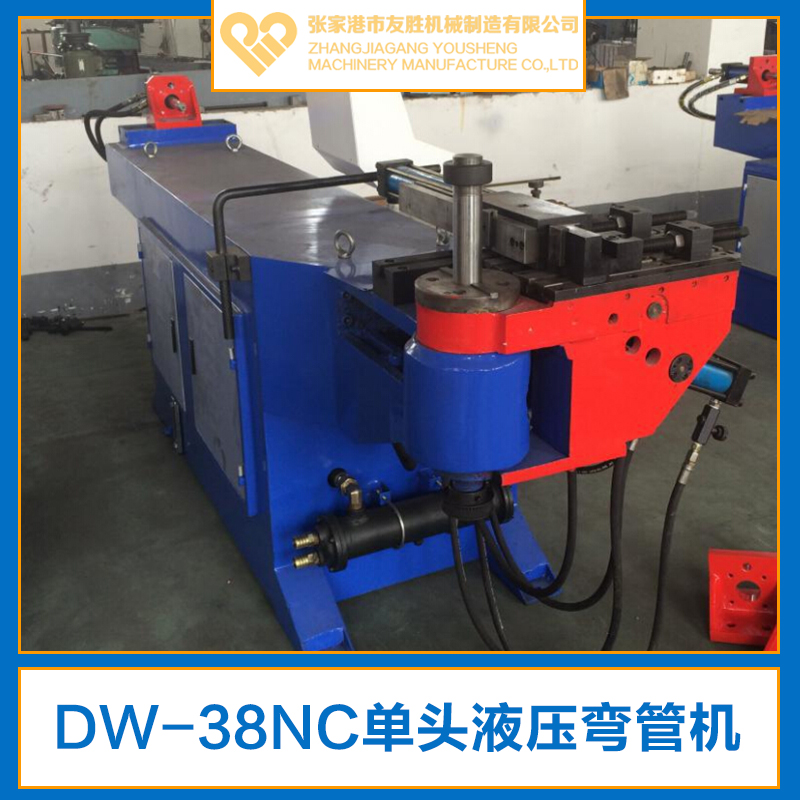

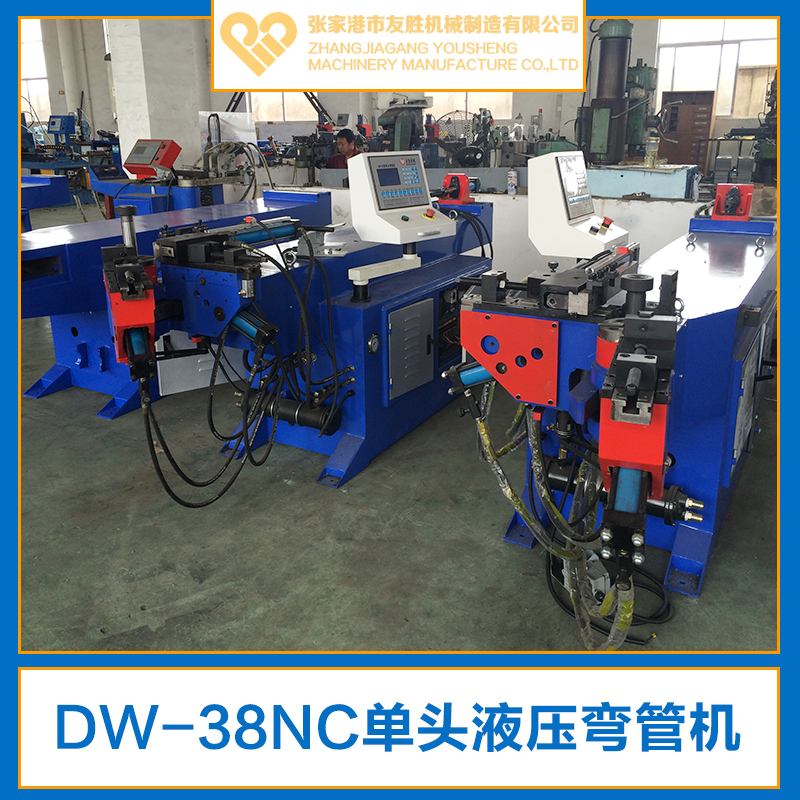

DW-38NC Single Head Hydraulic Bending Machine
Product Description:
Choose from various functions including manual, automatic, semi-circular, and full-circular options.
Two-angle settings (0-185°, selectable at will) — can be chosen individually or in a sequence of two.
Portable foot switch with automatic start, emergency stop, and momentary stop functions; high safety level.
Automated oil-liquid cooling circulation system for enhanced machine stability.
Mold changes are simple and convenient, facilitating flexible production.
The head and bend arm design is exquisite, offering maximum bending space.
The left and right arms can be separately designed for flexibility in choice.
NC numerical control type, simply set with numbers, easy to operate.
Product Specifications:
|
NC model |
Unit |
38NC |
50NC |
75NC |
89NC |
|
Hydraulic motor power |
KW |
4 |
5.5 |
11 |
15 |
|
Maximum Oil Pressure: MPa |
MPa |
12 |
12 |
12 |
12 |
|
Maximum Applicable Pipe Material |
Outer Diameter * Thickness mm |
￠38*2.0 |
￠50*2.0 |
￠75*2.0 |
￠89*2.0 |
|
Bend Tube Precision °/sec |
Degree |
±0.15 |
±0.15 |
±0.15 |
±0.15 |
|
Maximum Bend Radius |
m/m |
200 |
250 |
50-300 |
50-350 |
|
Maximum Bend Angle |
Degree |
185 |
185 |
190 |
190 |
Product Features:
Offering a variety of functions to choose from, including manual, automatic, semi-circular, and full-circular options.
Two-angle settings (0-185 degrees, selectable at will) - either choose one angle or a continuous range of two angles.
Portable foot switch with auto-start, emergency stop, and momentary stop/continue functions, offering high safety.
Automatic oil-liquid cooling cycle system, ensuring more stable machine operation.
Mold changes are simple and convenient, facilitating flexible production.
The machine head and bend arm are designed with precision, offering maximum bending space.
The left and right arms can be individually designed separately, offering flexible options.
NC numerical control, set by numbers only, simple operation.
