Product Name:

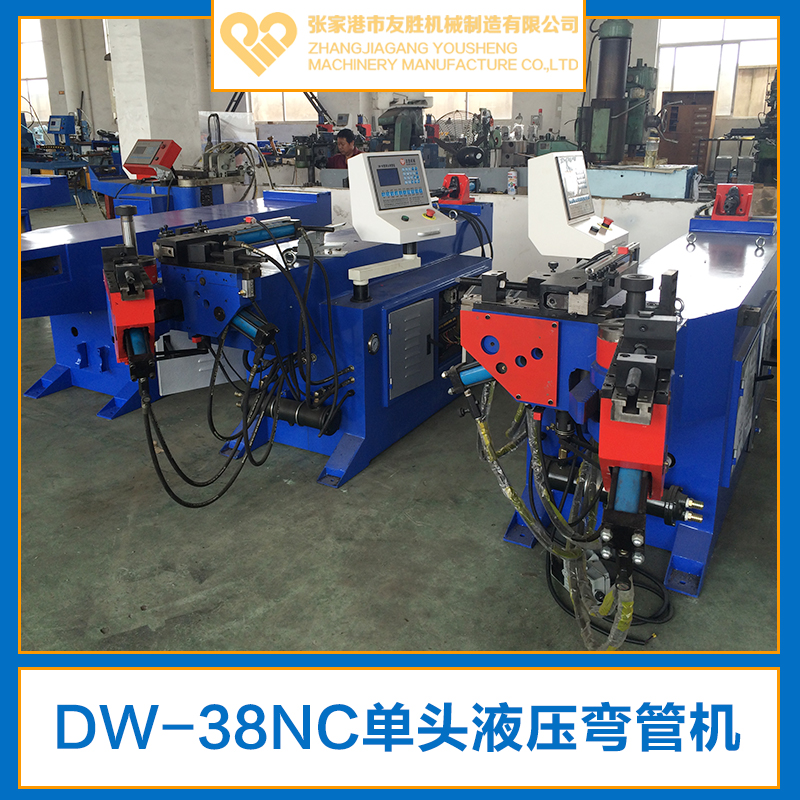

DW-38NC Single Head Hydraulic Bending Machine
Product Description:
Choose from various functions including manual, automatic, semi-circular, and full-circular options.
Two angle settings (0-185 degrees, selectable at will) can be chosen individually or as a continuous range of two.
Portable foot switch with automatic start, emergency stop, and quick stop with continuation features, offering high safety.
Automatic oil and coolant recirculation system for enhanced machine stability.
Mold replacement is simple and convenient, facilitating flexible production.
The head and elbow design is exquisite, offering maximum bending space.
The left and right arms can be individually designed separately, offering flexible options.
NC numerical control, simple operation with just numerical settings.
Product Specifications:
|
NC Model |
Unit |
38NC |
50NC |
75NC |
89NC |
|
Hydraulic motor power |
KW |
4 |
5.5 |
11 |
15 |
|
Maximum Oil Pressure: MPa |
MPa |
12 |
12 |
12 |
12 |
|
Maximum Applicable Pipe Material |
Outer Diameter * Thickness mm |
￠38*2.0 |
￠50*2.0 |
￠75*2.0 |
￠89*2.0 |
|
Bend Tube Precision °/sec |
Degree |
±0.15 |
±0.15 |
±0.15 |
±0.15 |
|
Maximum Bend Radius |
m/m |
200 |
250 |
50-300 |
50-350 |
|
Maximum Bend Angle |
Degree |
185 |
185 |
190 |
190 |
