Teflon high-temperature resistant anti-stick isolation cloth/conveyor belt for solar cell lamination machine/inside fully automatic lamination machine

Solar cell lamination machine Teflon high-temperature resistant anti-stick isolation cloth/conveyor belt, fully automatic lamination machine with internal vacuum and high-temperature conveyor belt

Solar cell lamination machine Teflon high-temperature resistant anti-stick isolation fabric and fully automatic lamination machine internal vacuum high-temperature conveying belt

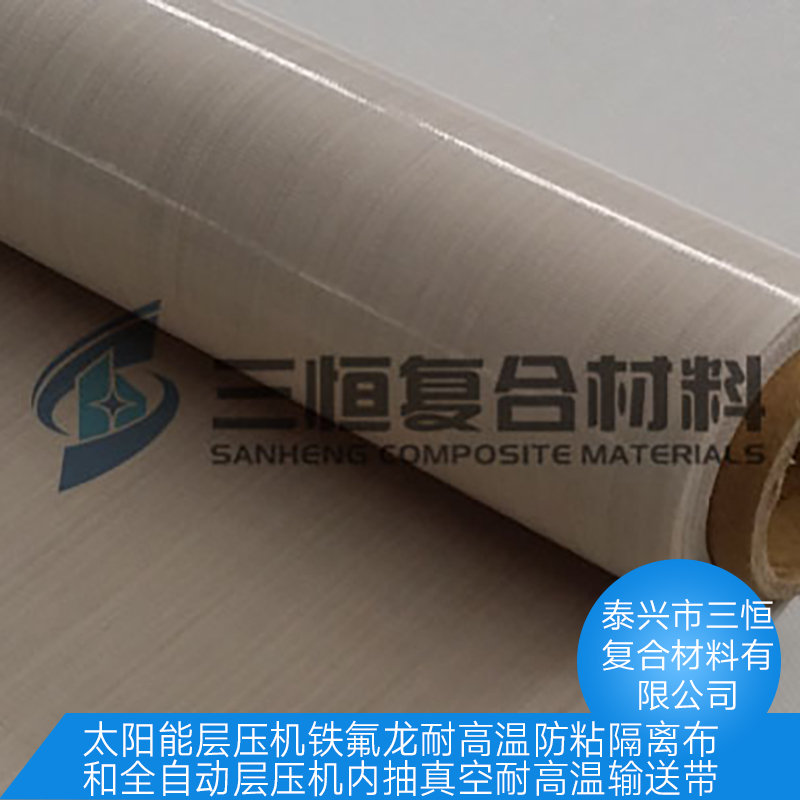

Solar lamination machineIronFluorine Teflon high-temperature resistant non-stick isolation fabric, and fully automatic lamination machine internal vacuum-resistant high-temperature conveying belt are made of high-quality, high-strength glass fiber yarn woven into the base material, coated with imported...PTFE(Teflon)Resin, sintered at high temperature.

I. The Principle of Use for Anti-stick Film in Laminating Machines:

During the lamination process of solar photovoltaic modules on the press, the lamination cloth is placed separately on the top and bottom layers of the photovoltaic module, serving as the cover cloth and underlay. Utilizing the anti-adhesive properties of the lamination cloth to preventEVAThe film and other materials adhere to the lamination machine at high temperatures.

The usage sequence for the anti-stick fabric in the lamination machine:

Laminated fabric+Glass+EVA+Battery cells+EVA+Back panel+Laminated fabric

Specs for the anti-stick film for the lamination machine:

  Standard width for small laminating machine (semi-automatic):1.25mInward

  Standard dimensions for large laminating machines (fully automatic):1.8m、2.0m、2.2m、2.4mPlease wait, the length is generally6Within 1 mile

  Standard Thickness:0.18mm（SH018）、0.23mm（SH023）、0.25mm（SH025）、0.3mm（SH030）、0.35mm（SH035）

  Standard Colors: Brown, Beige, White

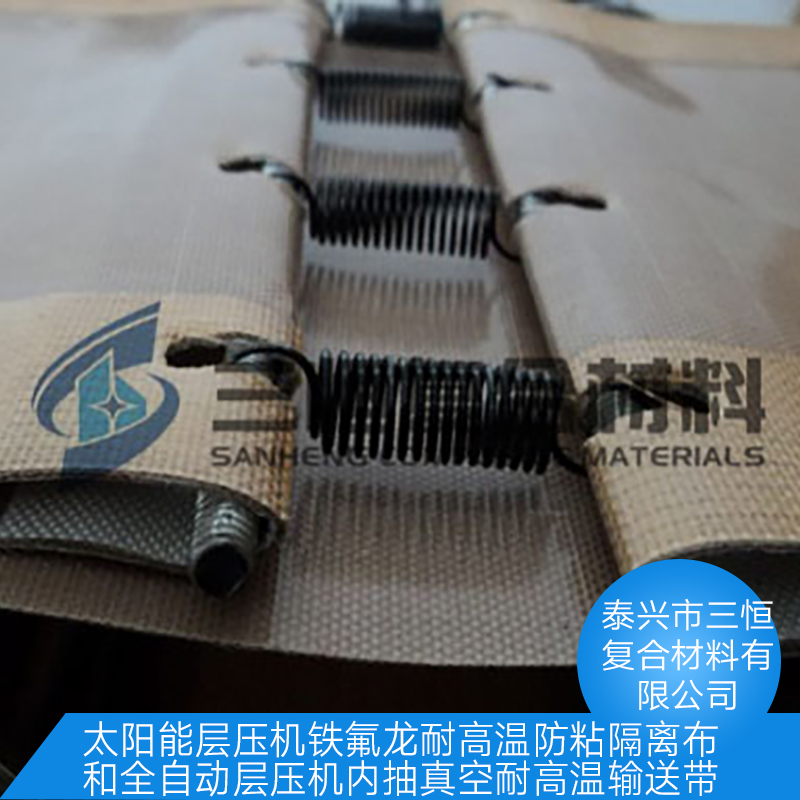

Two, conveyor belt inside the laminator, i.e., high-temperature anti-stick conveyor belt (trade name: Teflon conveyor belt)

  The main battery components in the fully automatic lamination machine are conveyed through a high-temperature anti-stick belt. Due to the vacuum inside the lamination machine, the surface of the anti-stick belt must have textures to prevent the fabric from adhering to the board. Additionally, this increases friction, which aids in the conveyance. The tension on the belt during conveyance should not be excessive.

Usage Specifications:

  Standard Sizes: (Extra Wide)1.8m、2.0m、2.2m、2.4m、2.8mWait, the length is generally10mLeft and right

  Standard Thickness:0.23mm（SH023）、0.25mm（SH025）、0.3mm（SH030）、0.35mm（SH035）

  Standard Colors: Brown, Black, White, Beige
