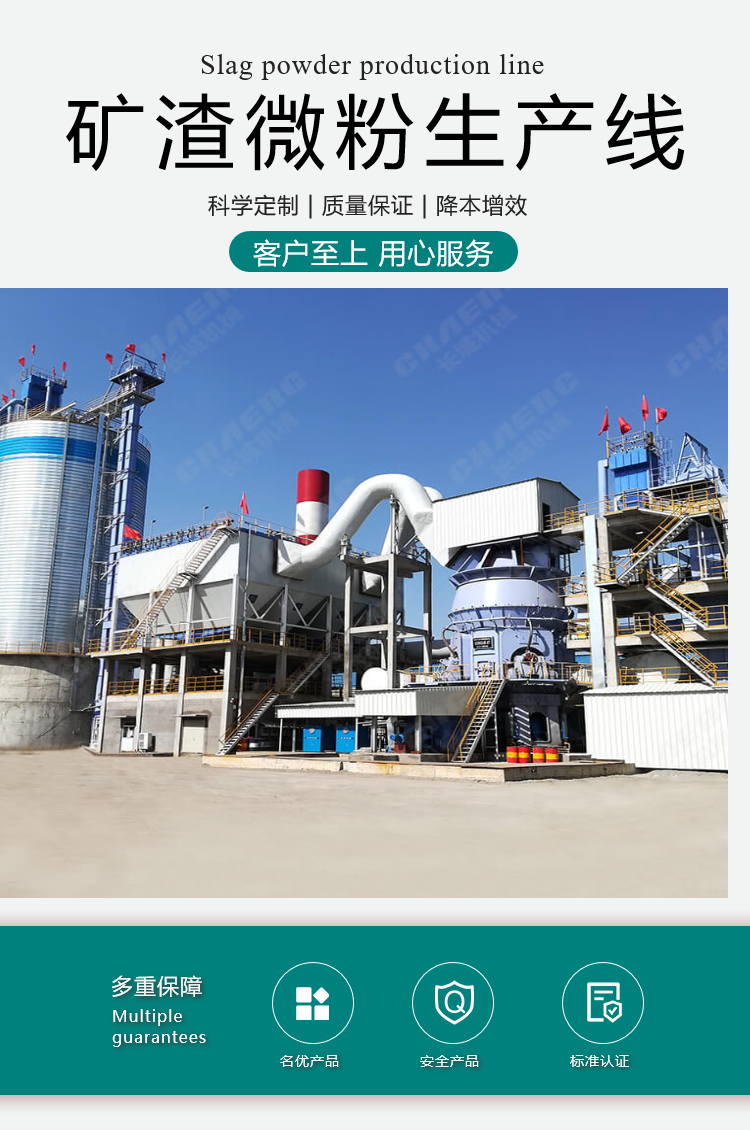

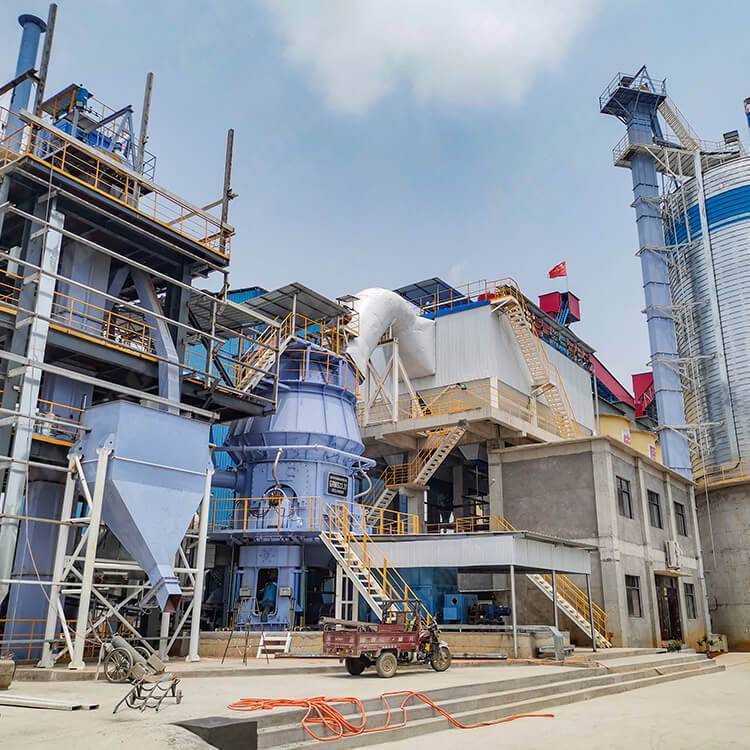

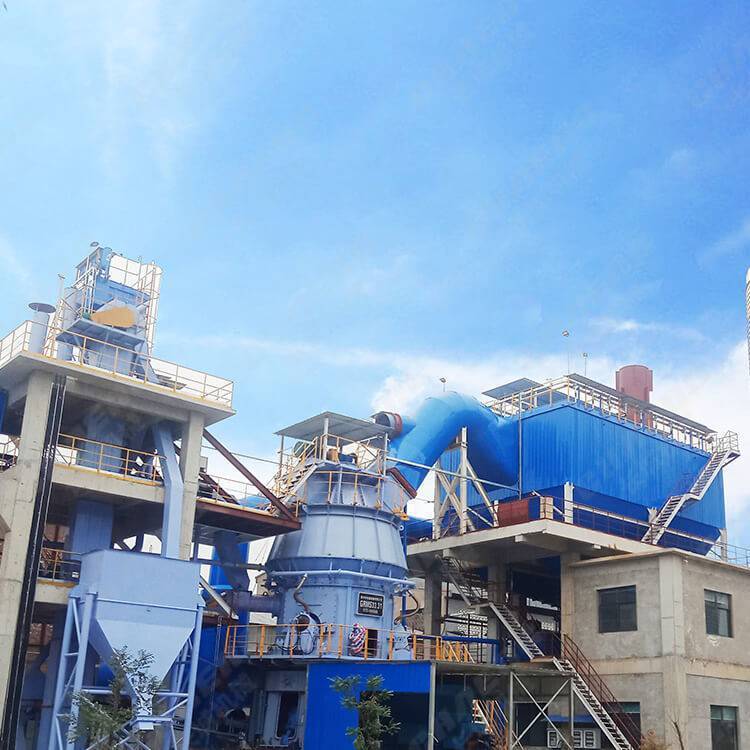

slag micro-fine production line, annual capacity of 300,000 tons slag grinding production line specifications

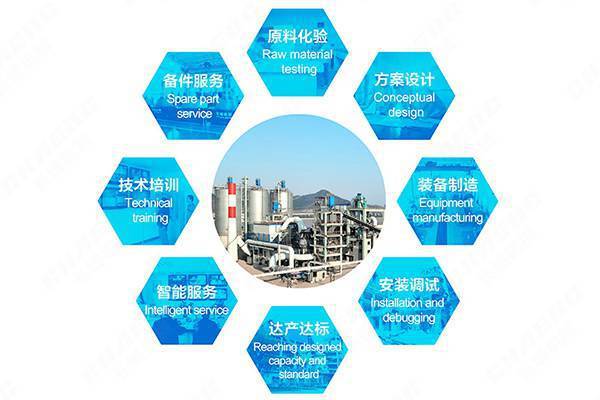

A slag micro-powder production line includes a belt feeding machine.+Vibration Sieve+Grinding Mill for Slag+组成 by hot blast furnace, dust collector, finished product warehouse, etc., in terms of production capacity, Xinxiang Great Wall can undertake20-150,000 tons per year slag micro-powder production lineEPC Turnkey Project, offering "turnkey" services including raw material testing, scheme design, equipment manufacturing, civil engineering, installation, debugging, staff training, and achieving production and quality standards.

Mineral slag micro-powder production process:

(1) Raw Material System

The slag raw material is transported to the slag yard by trucks, first undergoes preliminary dehydration, then is sent to the receiving bin, and finally conveyed to the drying room via conveyors.

(D) Drying System

The slag in the drying room storage is fed into the dryer by a vibrating feeder, and the heat required for drying is supplied by a coal-fired hot air furnace in front of the dryer. After drying, the slag is conveyed into a steel silo via a screw conveyor and a bucket elevator, and then sent to the mill after being iron-separated by a belt conveyor.

Section 3: Powder Grinding System

The dried slag is fed into a vertical mill for grinding. The ground slag is then separated by a classifier, mixed with the mill slag, and returned to the mill for further grinding through a spiral conveyor, forming a closed-loop system. Qualified slag powder is transported to the finished product storage by a spiral conveyor.

(4) Finished System

The finished product warehouse of the slag micro-powder production line is equipped with a spiral conveyor that transports the finished slag micro-powder for packaging and delivery to manufacturers in need.

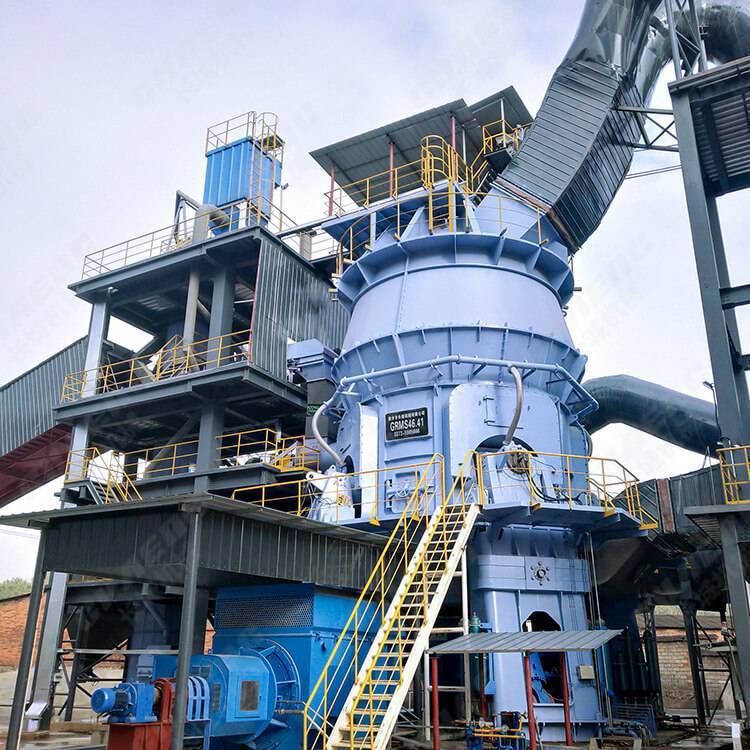

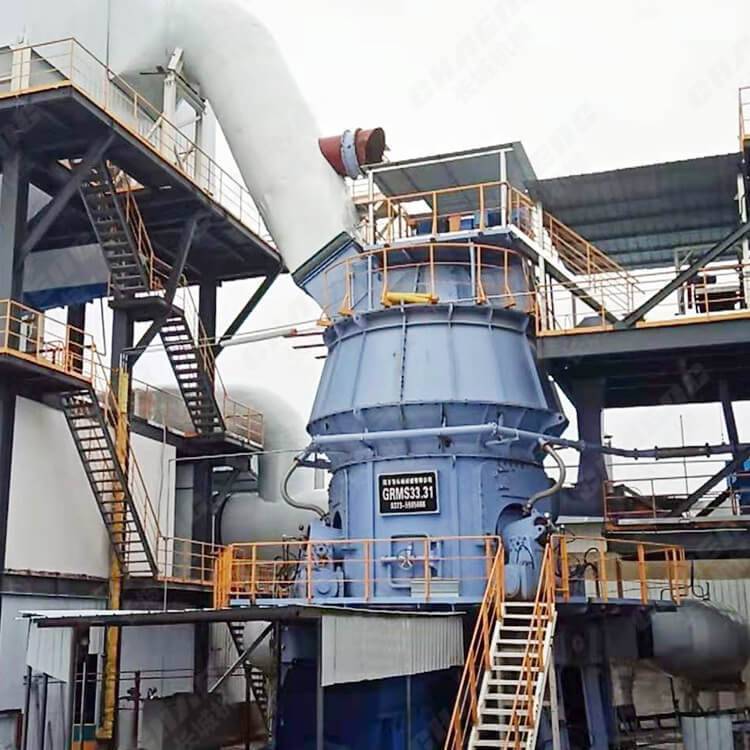

Slag Micro-fine Production Line Main Equipment——GRMS slag vertical mill

The grinding system has a specific surface area of 430 m²/kg for the mineral powder, and the activity of the mineral powder can reach its peak after 28 days.

The grinding powder system occupies about 70% of the area of the ball mill system, reducing civil engineering costs during installation.

The vertical mill system has a significant advantage over the ball mill system in terms of metal recovery from mineral powder, with a recovery rate of 0.2-0.3% per ton of mineral powder, whereas the ball mill's recovery rate is 0%.

The mineral powder produced by the ball mill has a uniform particle size distribution and good fluidity.

Product Advantages

1. Fast investment returns, with cost recovery within 1-2 years.

2. High-efficiency, energy-saving powder grinding equipment significantly boosts production efficiency.

3. Mature general contracting solutions with a production capacity of 1 million tons per year for equipment.

4. Nationwide customer case studies.

5. Standard emissions of waste gas and noise, clean, efficient, and environmentally friendly with energy conservation.

6. Power consumption of production line system does not exceed 40 kWh/t (35~40 kWh/t)

7. Advantage of shorter delivery time.

Regarding equipment, due to varying customer needs and different selection plans, each one is automatically generated by our backend system. Please refer to the Sales Manager for specifics!
