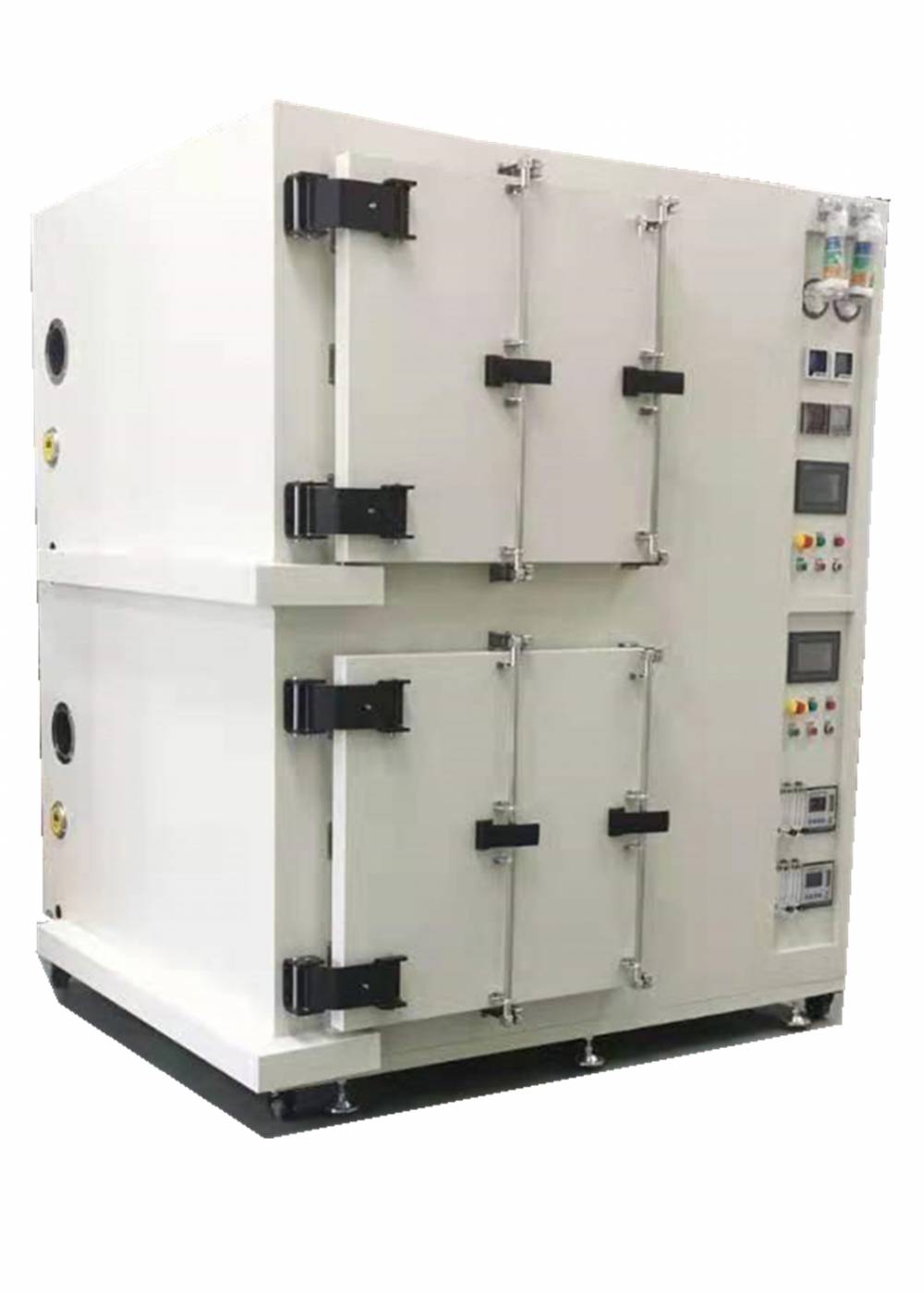

Oxygen-Free Oven, Intelligent Double-Layer Oxygen-Free Oven, Four-Door Oxygen-Free Oven, Water-Cooled Nitrogen Oven Overview:
Intelligent anaerobic ovens are used for special process requirements in the drying of precision electronic components, photolithography adhesive curing, and electronic ceramic materials, simulating a linear temperature rise environment. They are particularly suitable for the non-oxidation drying and baking process requirements in industries such as semiconductor manufacturing, COB packaging, hygiene, flexible PCB printing, and precise mold annealing. They are widely used in industries including electronic products, hardware products, hygiene, instruments and meters, factories, universities, and scientific research.
Oxygen-Free Oven, Intelligent Double-Layer Oxygen-Free Oven, Four-Door Oxygen-Free Oven, Water-Cooled Nitrogen OvenTechnical Specifications(All data provided is per carton parameter, with each carton controlled and operated individually)
Temperature Range: RT+10～300/400/500℃；
2. Inner Box Dimensions: 710×610×510mm（W×D×H）；
3. Dimensions:   Approximately 1500×1100×2300mm（W×D×H）；
4. Material: Inner lining made of SUS304# mirror polished stainless steel, seamless welding to protect the workpiece from any contamination; outer case made of high-quality cold-rolled steel with powder coating, corrosion-resistant and dust-proof.
5.升温 Rate (no load): 0-15°C/min
6. Cooling MethodsNatural Cooling / Water Cooling / Air Cooling；
7. Heater: Custom SUS304 stainless steel dust-free heater
8. Data Recording Feature: Multi-channel temperature recorder, oxygen concentration value logging.
9. Oxygen Content: ≤50ppm, real-time detection and display.
10. Temperature Control Stability: ≤±1℃
11. Temperature Uniformity: ≤±1.5%℃ (no load)
12. Sample Rack: Each carton contains 2 layers of sample racks, made of stainless steel with perforated plates, capable of supporting over 30KG.
13. Power/Supply Voltage: 380V/50Hz, 6.5KW
14. Control Section:
     Utilizing a human-machine interface + PLC control.
     Curvable heating and cooling modes
     RKC-PF900 Temperature Controller
     Six-channel temperature detection
     Independent over-temperature protection controller;
15. Nitrogen Control: Equipped with a 0-100L/min adjustable nitrogen flowmeter.
Oxygen-Free Oven, Intelligent Double-Layer Oxygen-Free Oven, Four-Door Oxygen-Free Oven, Water-Cooled Nitrogen Oven Smart Features:
1. The machine is equipped with MES communication functionality.
2. Human-machine interface and PLC, process/device/OP permissions can be differentiated based on the user.
3. The main temperature control is displayed in real-time on the human-machine interface.
4. Nitrogen flow display with human-machine interface, also capable of setting nitrogen ON/OFF through the human-machine interface, as per RECIPE settings.
5. Each machine is equipped with a scanner on both the upper and lower boxes.
6. Process condition parameters are input in a tabular format on the man-machine interface, and once entered in sequence, the system will automatically transfer to the temperature controller.
7. The system can connect with the customer's IT infrastructure. It offers the option to upload IT data via barcode, then receive process data either by comparison download from IT or by directly receiving the downloaded process data from IT. The system automatically writes the process to the temperature controller, achieving remote process download and avoiding errors in process selection by personnel.
8. The system provides main control point temperature, six-point temperatures, nitrogen flow values, and equipment status data for IT to connect and read, allowing clients to remotely monitor the equipment status at any time.
9. Over-temperature protector connected to man-machine interface, as per RECIPE settings.
10. Equipped with motor speed detection function, displaying the speed on the human-machine interface.
11. Abnormal history available for human-machine records.
