Ultraviolet Curing Oven, Vacuum Ultraviolet Oven, UV Curing Vacuum Oven, UV Debonding Machine Performance:

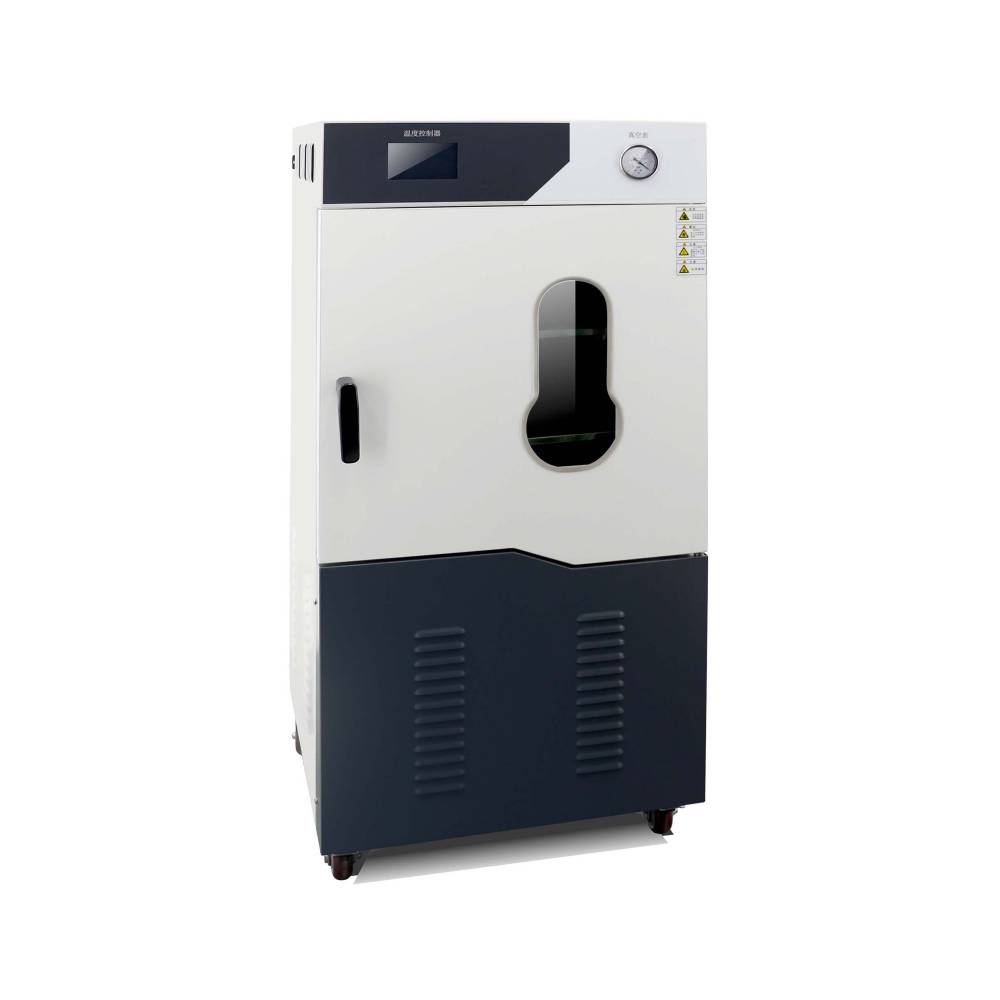

Ultraviolet (UV) Curing Oven

2. Equipment Model: JS-UVZF Series

3. Main Technical Parameters of the Equipment

3.1 Internal Dimensions: W450×D450×H300mm, customizable

3.2 Material: Inner box made of high-temperature-resistant SUS304 stainless steel.

3.3 Temperature Range: Room temperature or up to 300℃ high temperature

3.4 Temperature Accuracy: 0.5℃

3.5 Temperature Fluctuation: ≤±1℃

3.6 Power Supply: AC220V±10% / 50Hz, 2.5KW

3.7 Heating Rate: 0-6℃/min

3.8 Vacuum Degree: Ultimate vacuum ≤ 133Pa, oil-free scroll vacuum pump

3.9 Wavelength Range: 365.3, 365.4, 365.5, 365.6, ... nm available

3.10 Power Setting: Any setting between 1%--

3.11 Irradiation Mode: Touch, Foot, 0-10V

Timer Control

Recirculating stepped illumination

3.12 Luminescent Size: Variable

3.13 Irradiance Power Range: Variable

Ultraviolet Curing Oven / Vacuum Ultraviolet Oven / UV Curing Vacuum Oven / UV Debonding Machine - Applications:

UV curing vacuum ovens are primarily used for the curing of UV adhesives, UV inks, UV varnishes, UV paints, UV coatings, films, and other UV-sensitive materials. They are also employed in 3D printing curing, modification of new materials, polymer chemistry, photo-curing of semiconductor materials, and laboratory research in universities and research institutions.
