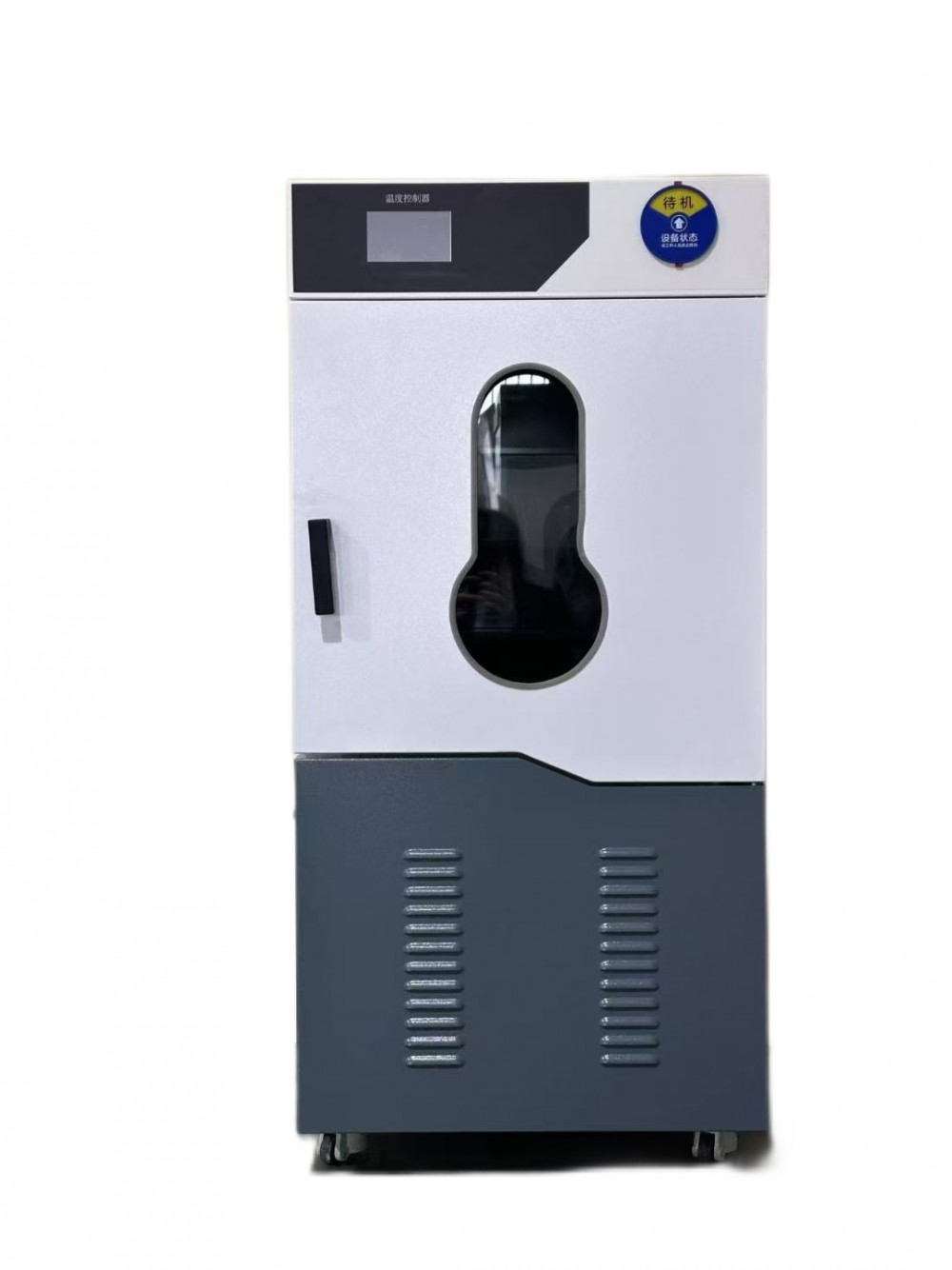

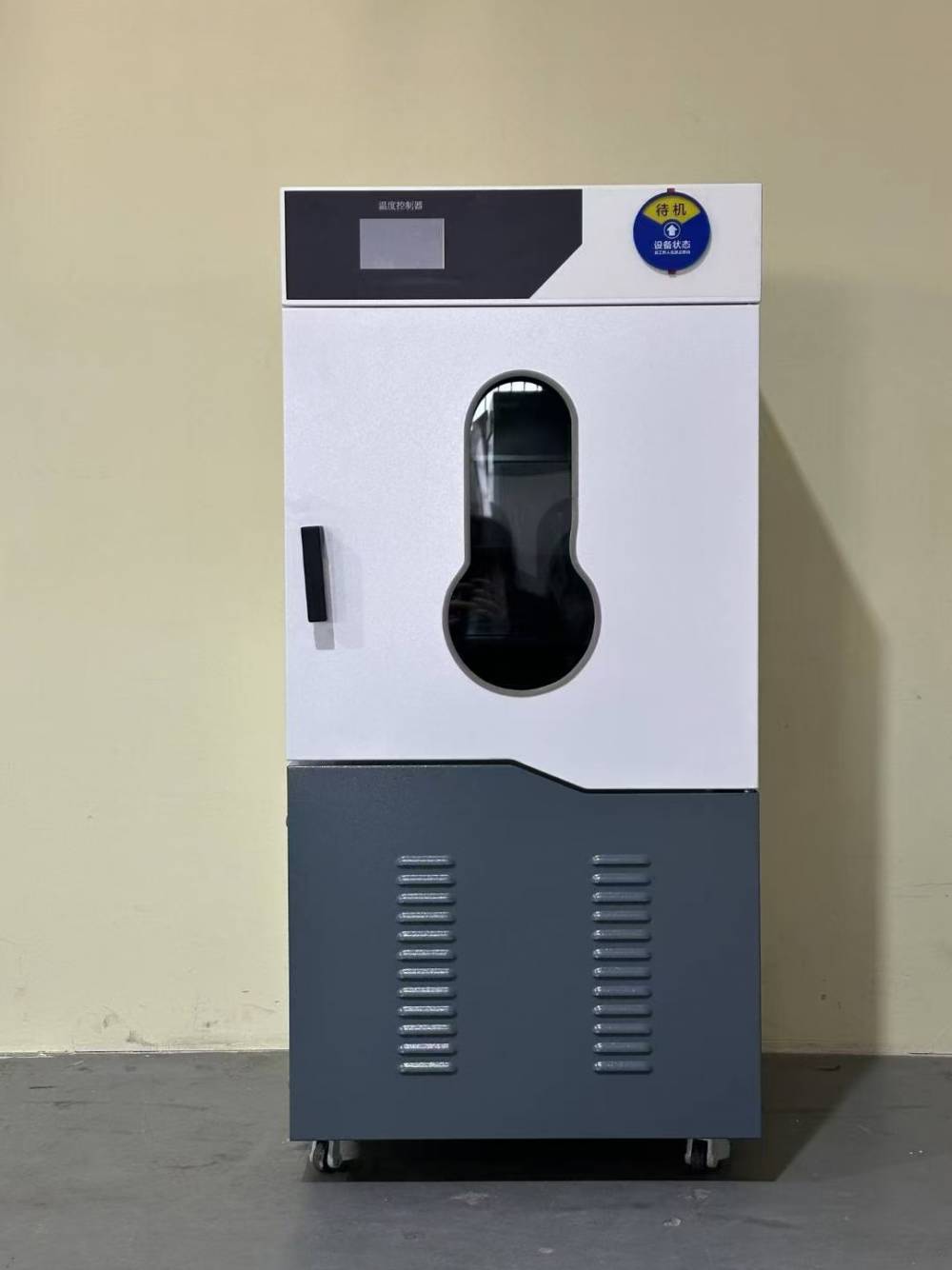

Programmable HMDS Vacuum Oven, HMDS Vacuum Oven, High Temperature HMDS Vacuum OvenUsage

VMTHMDS for photoresist bonding

Wafer Substrate Dehydration and Baking

Photoresist image inversion for metal stripping of semiconductor laser diode chips

Programmable HMDS Vacuum Oven HMDS Vacuum Oven High Temperature HMDS Vacuum OvenFeatures

Our advanced control system allows users to select temperature, processing time, and chamber size as needed. With exceptional HMDS bonding and uniformity performance, it achieves high yield.

Additionally, our technology can reduce the usage and cost of chemicals, achieve large-scale production capacity, and nearly zero chemical waste emissions, thereby realizing economic benefits.

Through process treatment, achieves image inversion effect, resolving the complexity of image inversion photoresist. Ensures >'s reliable operation time and dependability, featuring exceptional consistency and reproducibility validated by customers.

Programmable HMDS Vacuum Oven, HMDS Vacuum Oven, High Temperature HMDS Vacuum Oven Specifications

Model Number: JS-HMDS90AI

Studio Size (mm): 300*300*300, 450×450×450, 650*650*650, 1000*1000*1000 Customizable
Material: Inside box made of 316L grade stainless steel
Temperature Range: RT+10-200℃
Temperature Fluctuation: ≤±0.5
Vacuum Level: 1 torr
Operation Interface: Human-machine dialogue, one-click operation
Layer Quantity: 1-8 Layers
HMDS Control: Capable of Controlling Nighttime HMDS Addition
Vacuum Pump: Oil-Free Scroll Dry Pump
System Protection: HMDS Leak Alarm Alert, Over-temperature Protection, Overcurrent Protection, Overheat Protection

Programmable HMDS Vacuum Oven, HMDS Vacuum Oven, High Temperature HMDS Vacuum OvenFor semiconductor process production, research institutions, R&D platforms, university laboratories, and the new materials and new technology industries.
