Hard Coating Clean Drying Oven, Nitrogen Hard Coating Oven, JS-MOL125 Class 100 Cleanroom Oven

The purpose of the hard bake oven is to bake the developed substrate at a certain temperature. This smooths out the surface of the photoresist due to surface tension, reducing defects within the photoresist layer and helps refine the edge profiles of the photoresist patterns.

Hard Coating Clean Drying Oven  Nitrogen Hard Coating Oven  JS-MOL125 Class 100 Cleanroom OvenTechnical Performance:

Temperature Range: RT to 250℃
Uniformity: ±2%℃

Temperature Fluctuation: ±0.5℃ (no load)
Temperature Control Accuracy: ±0.1℃

Cleanliness: Class 100

Time Range: 99H 99M

Gas Atmosphere: N2

Internal Dimensions (mm):

450×450×450

500×500×550

600×700×800 (Customizable)
Power Supply: 380V, 50Hz

Mold Plates: 2-4 pieces (height adjustable)

Expandable Features:

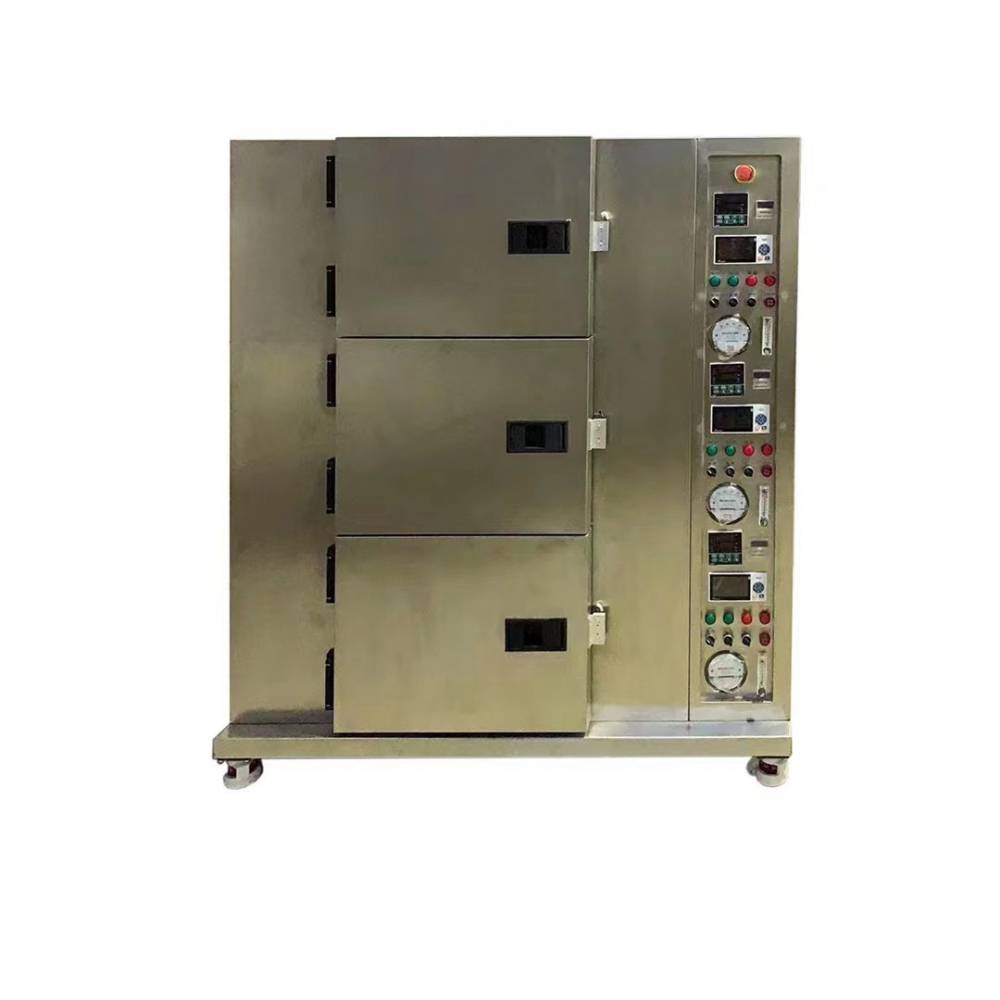

Double-chamber or multi-chamber

Smart network functionality, MES and other industrial automation software

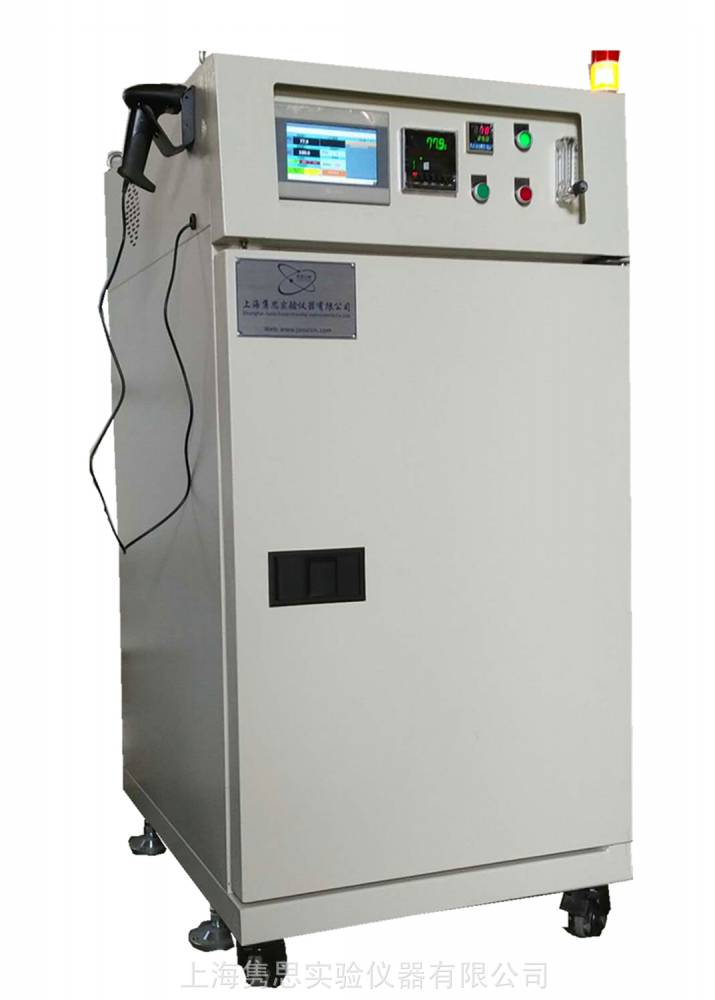

Scanner Gun, Scan Traceability, One-Tap Reading

Automatic door control, master computer programming, robotic arm handling products

Hard Coating Clean Drying Oven  Nitrogen Hard Coating Drying Oven  JS-MOL125 Class 100 Cleanroom Oven Manufacturer

Hard-coating ovens can also be used for the pretreatment baking before coating and hard-coating baking after coating, as well as high-temperature baking after development, of materials such as silicon wafers, silicon carbide, niobium lithium, glass, etc., in semiconductor manufacturing. They are also suitable for production and research departments in IC packaging, photoresist curing, silver adhesive curing, electronic liquid crystal displays, LCDs, CMOS, IS, and laboratories; as well as for drying, heat treatment, aging, and other high-temperature tests of non-volatile and non-flammable or explosive items.
