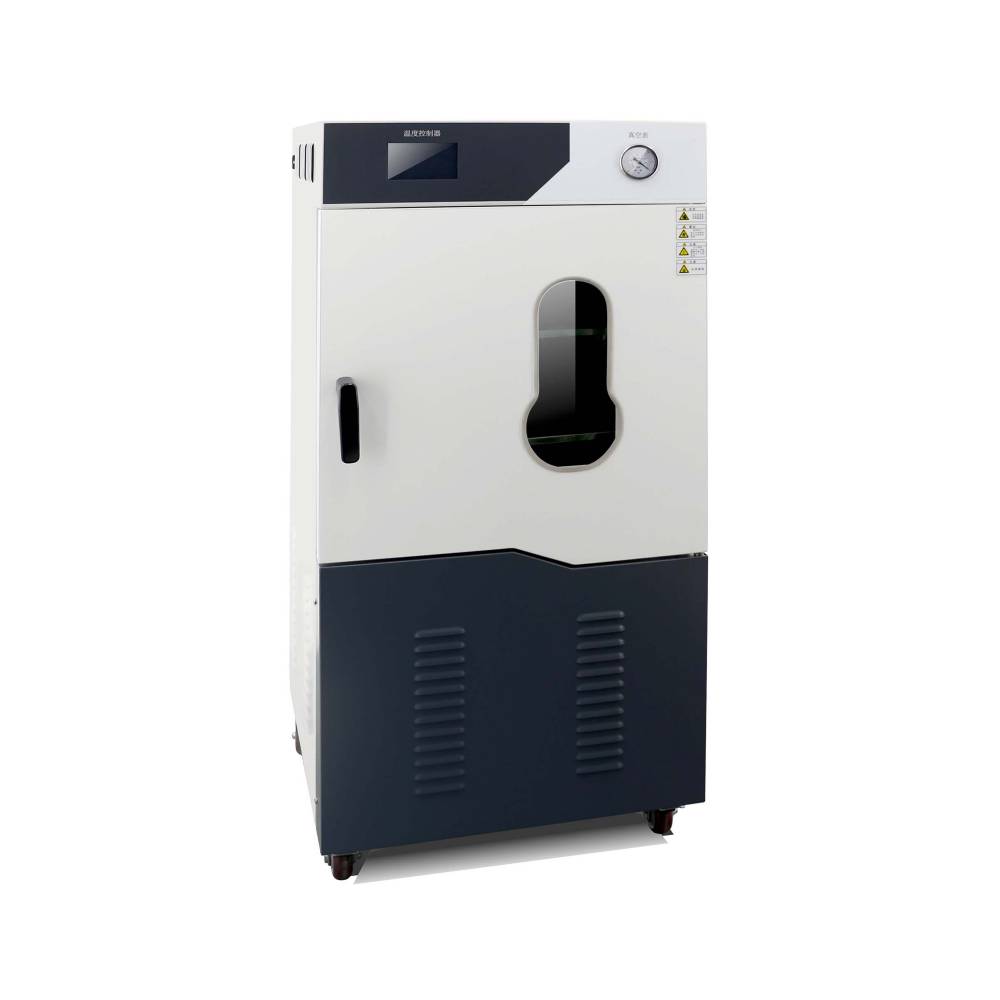

Vacuum Hot Air Oven High Temperature Hot Air Vacuum Oven Principle of Hot Air Circulation Vacuum Dryer
Vacuum Hot Air Oven Working Principle: During the circulation stage, the fan generates a strong airflow, uniformly distributing the hot air throughout the oven interior, ensuring thorough contact between the hot air and the item's surface to accelerate heat conduction. During the moisture removal stage, the surface moisture of the items inside the oven is evaporated by the hot air, and the moisture is expelled from the oven through the exhaust port.

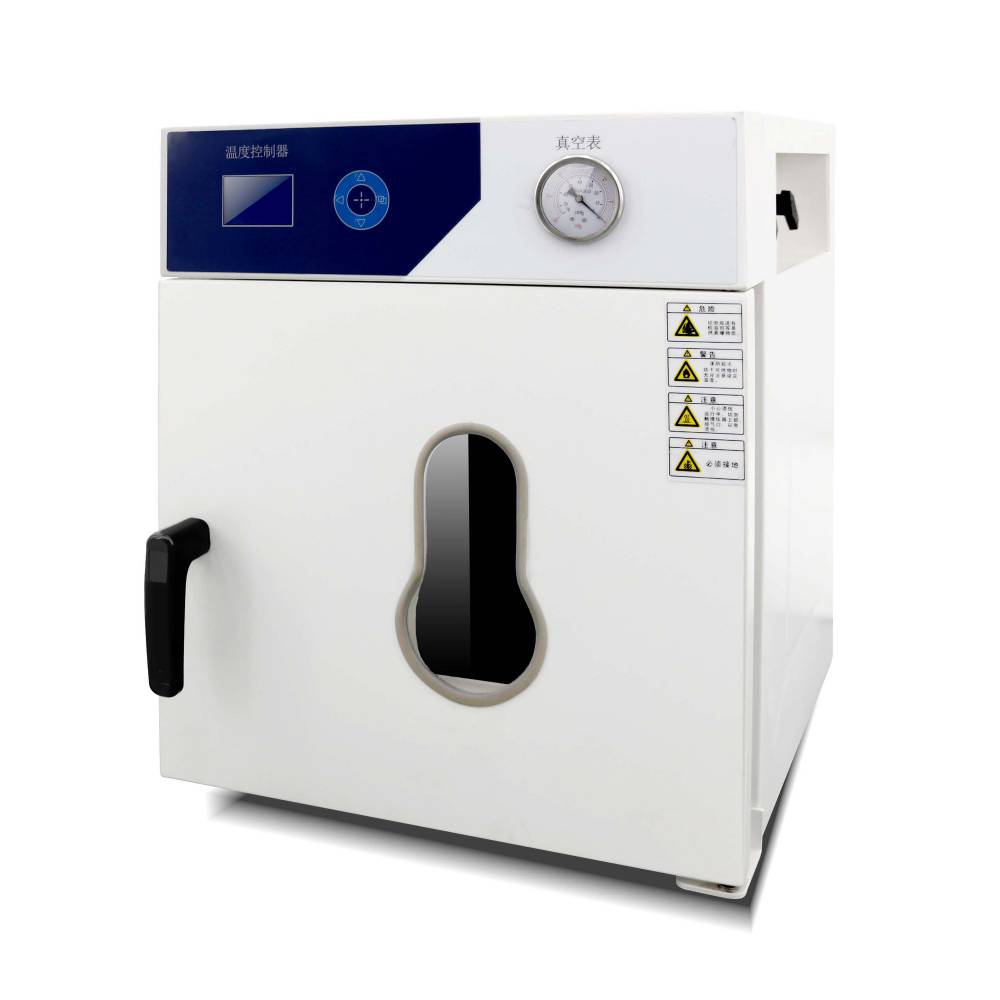

Vacuum Hot Air Oven High Temperature Hot Air Vacuum Oven Hot Air Circulation Vacuum Dryer
The air source is driven by a circulating fan motor, which rotates the fan wheel through an electric heater to expel hot air. The hot air then circulates through the ducts within the oven chamber, and the used air is drawn back into the duct to become the air source for another cycle, ensuring even heating and maintaining consistent indoor temperatures.
Control Method: Color touch screen operation, automatic operation
Temperature Range: 50-300/500°C
Temperature Accuracy: 0.1
Temperature fluctuation: ±1℃
Volume: 90L-5000L
Uniformity of temperature: ±1.5%℃
Vacuum Level: 1/100 Pa
Rising Rate: 1~8℃/m, adjustable
Cooling Methods: Air Cooling, Water Cooling
Oxygen Concentration: ≤10ppm
Material Inside Box: 316L Stainless Steel
Vacuum Pump: Oil-Free Vortex Pump
Insulation Material: Ceramic Fiber
Operation Method: Human-Machine Interface + PLC
Operation Function: One-click Auto-Run
Program Mode: Save and Edit Multiple Processes
The steps for using the vacuum hot air oven are as follows:
Place the to-be-dried samples in the drying chamber.
Close the drying chamber door and ensure it seals properly.
Turn on the vacuum pump switch on the drying chamber and start the vacuum process.
4 When the vacuum level reaches the desired value, turn off the vacuum pump switch, allowing the drying chamber to return to atmospheric pressure.
Vacuum Hot Air Oven / High-Temperature Hot Air Vacuum Oven / Hot Air Circulation Vacuum DryerNo Chinese content provided.
Vacuum hot air ovens are used for curing polyimide (PI) adhesive, CPI adhesive, BCB adhesive, low-k dielectric curing, LCP material heat treatment, bonding material pretreatment, FOWLP fan-out packaging, ITO film/aluminum/copper annealing, and PBO adhesive curing, among other specialized processes. Suitable for production and research departments in the fields of electronic liquid crystal displays, LCDs, CMOS, ICs, PCBs, semiconductor packaging, and laboratories.
