PI Curing High Temperature Oven Polyimide Anaerobic Oven High Temperature Curing Furnace Application
Polyimide (PI) refers to a general term for polymers with a main chain containing imide rings, primarily categorized into three types: thermoplastic polyimide, thermosetting polyimide, and modified polyimide. The thermoplastic PI includes homobenzimide, biphenyl, ether anhydride, and fluoroanhydride types; the thermosetting PI includes bismaleimide, acetylenic-terminated polyimide, and endcapped polyimide with bisphenol A-type dianhydride; the modified PI includes polyether imide and polyester imide, among others.
Polyimide is at the top of the performance pyramid for high polymer materials and is widely used in aviation, aerospace, microelectronics, nanotechnology, displays, separation membranes, and laser fields.
PI curing high-temperature oven, anaerobic imide curing ovenUsed in semiconductor/3rd generation semiconductor/new materials/new energy industries. Heat treatment for BCB, PI, CPI, PBO resins, LCP new materials, lithium batteries, and more.
PI Curing High Temperature Oven Pyrrole Imide Anaerobic Oven High Temperature Curing Furnace RFQ
Temperature Range: Room Temperature +50～400℃
Ramp Rate: 0-10°C/min, multi-step program with stepped temperature increase
Cooling Methods: Natural Cooling or Assisted Cooling (Water Cooled)
+Air-cooled
Oxygen content specification: ≤10ppm
Gas Type: Auto-open/close N2, full process nitrogen replacement
Cavity Type: Vacuum or Atmospheric (optional)
Cooling Unit: Water-cooled protection
Control Method: Automatic control, one-touch operation
Operation Interface: Color LCD touch screen, multiple process options

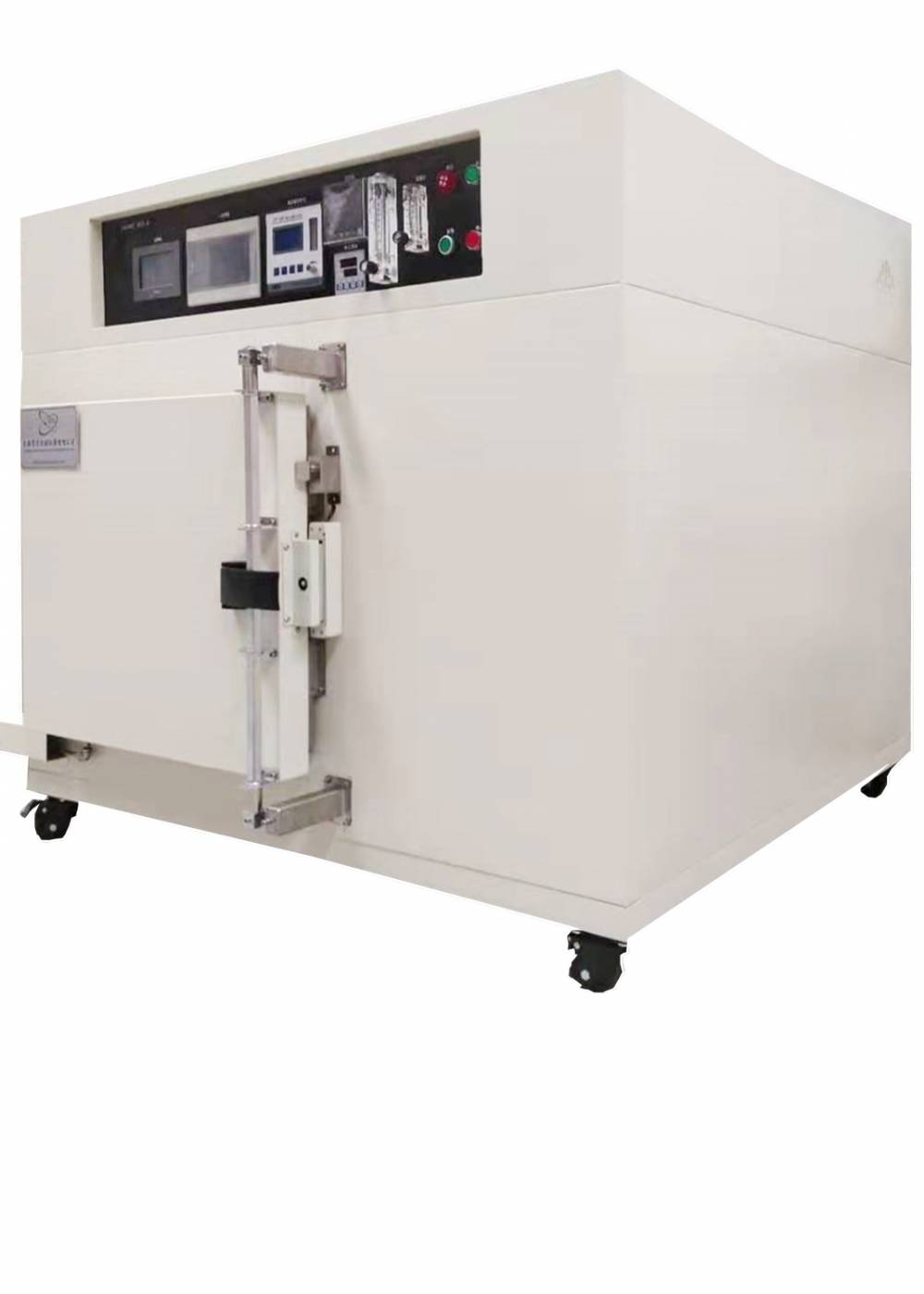

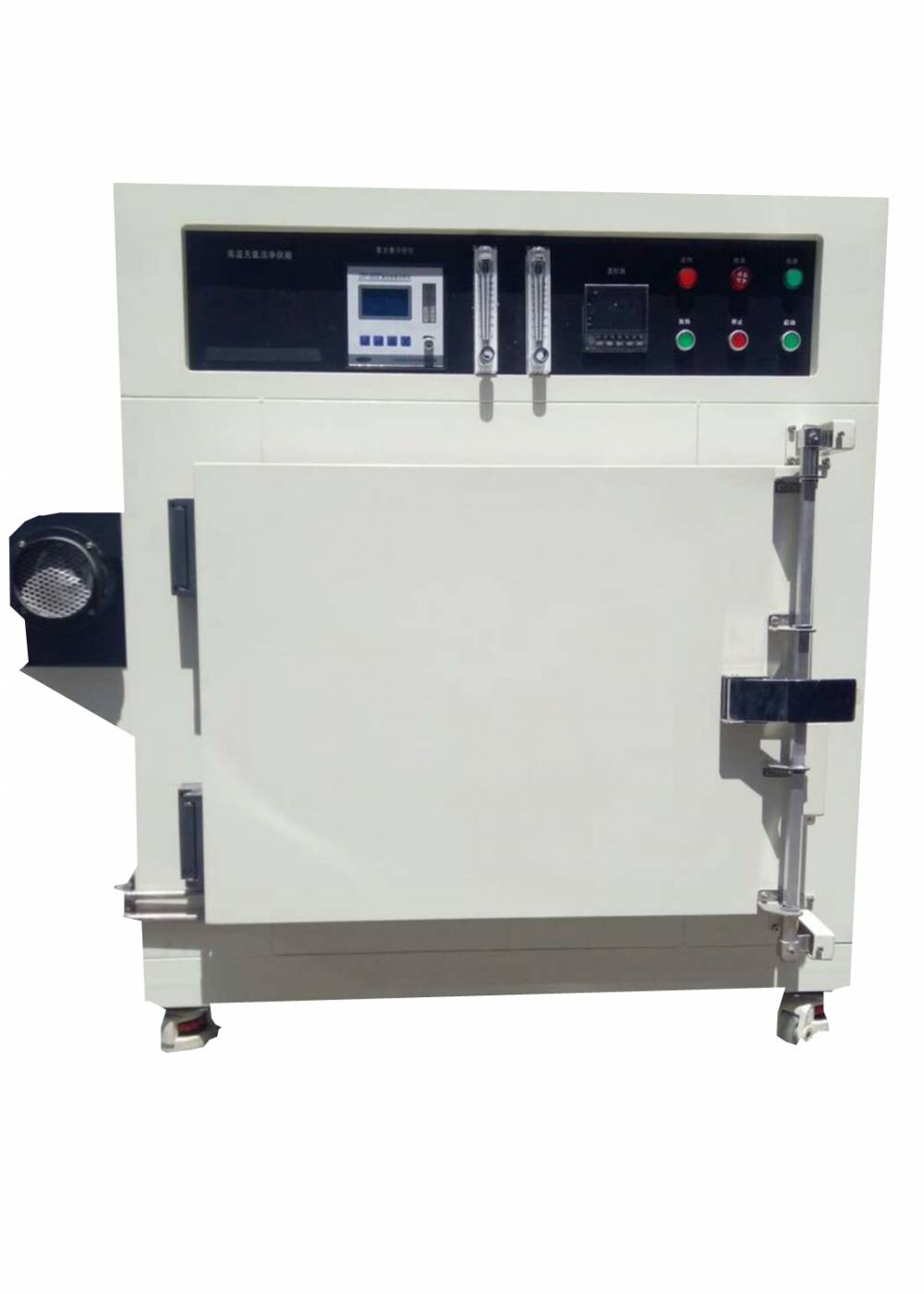

PI Curing High Temperature Oven, Pyrrole Imide Anaerobic Oven, High Temperature Curing Furnace Manufacturer
Oxygen-free ovens, vacuum oxygen-free ovens, dust-free ovens (curing ovens), HMDS pretreatment systems, sputtering machines, dust-free oxygen-free ovens, nitrogen ovens, blow vacuum ovens, ultra-low temperature test chambers, rapid temperature change test chambers, constant temperature and humidity test chambers, high and low temperature shock test chambers, and other equipment; available for non-standard customization.
