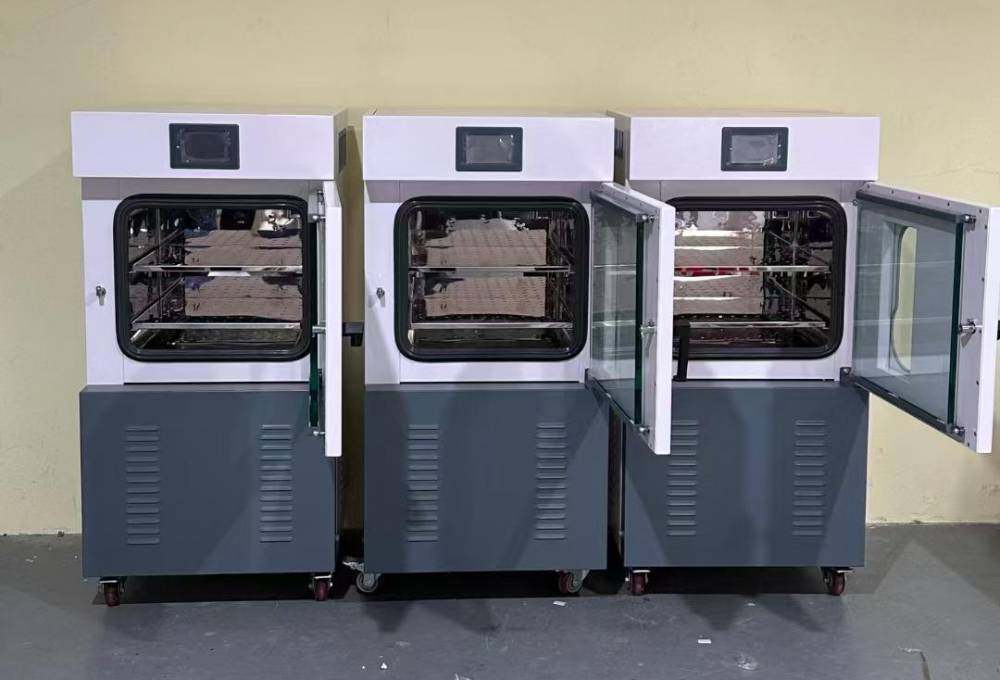

Chip Vacuum Storage Box, Vacuum Nitrogen Storage Cabinet, Vacuum Nitrogen Cabinet, Four Sets Vacuum Damp-Proof BoxesA specialized storage device for high-value items like chips, employing vacuum-sealed storage to effectively prevent oxidation and moisture damage, thereby extending their lifespan.
Vacuum storage boxes are primarily composed of parts such as vacuum pumps, storage chambers, and control panels. The vacuum pump is used to remove air, maintaining a vacuum environment within the storage chamber. The storage chamber is designed to hold items for storage while ensuring their airtightness. The control panel is used to manage the vacuum pump's operational status and displays various parameters and conditions during the storage process.
UtilizeChip Vacuum Storage Box, Vacuum Nitrogen Storage Cabinet, Vacuum Nitrogen Cylinder, Four Sets Vacuum Moisture-Proof BoxesPlease note the following points:
Ensure the vacuum pump operates normally and conduct regular inspections and maintenance.
Items must be properly packaged and sealed prior to storage to prevent air and moisture from entering.
Regular checks of the vacuum level within the vacuum chamber during storage are required to ensure it remains within a reasonable range.
After storage, the air inside the vacuum chamber must be released to prevent moisture from entering.
Chip Vacuum Storage Box Vacuum Nitrogen Storage Cabinet Vacuum Nitrogen Enclosure Four-Ton Vacuum Moisture-Proof Boxes
Volume: 350×450×450mm, Customizable
Cavity: 1/2/3/4/6/8 box types available
Material: Inner box made of SUS304 or 316L stainless steel
Optional Features: Temperature and Humidity Display/Control
Pressure: ≤5 Pa
Control Section: Color touch screen interface, with automatic/manual control options
Control System: Human-Machine Interface + PLC Control
Vacuum Pump: Spiral Dry Pump
Nitrogen Control: Adjustable Rotameter for Nitrogen Flow
