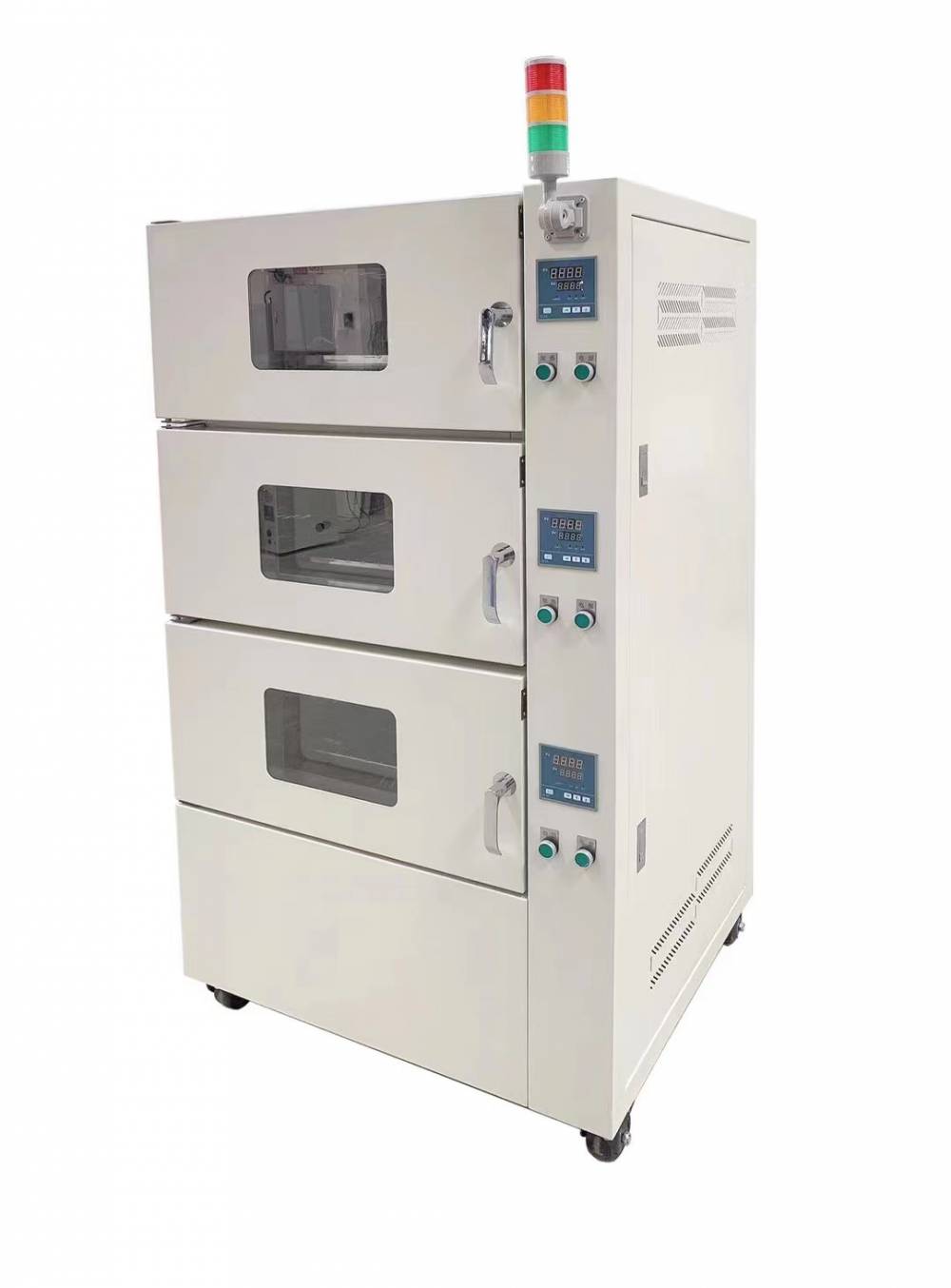

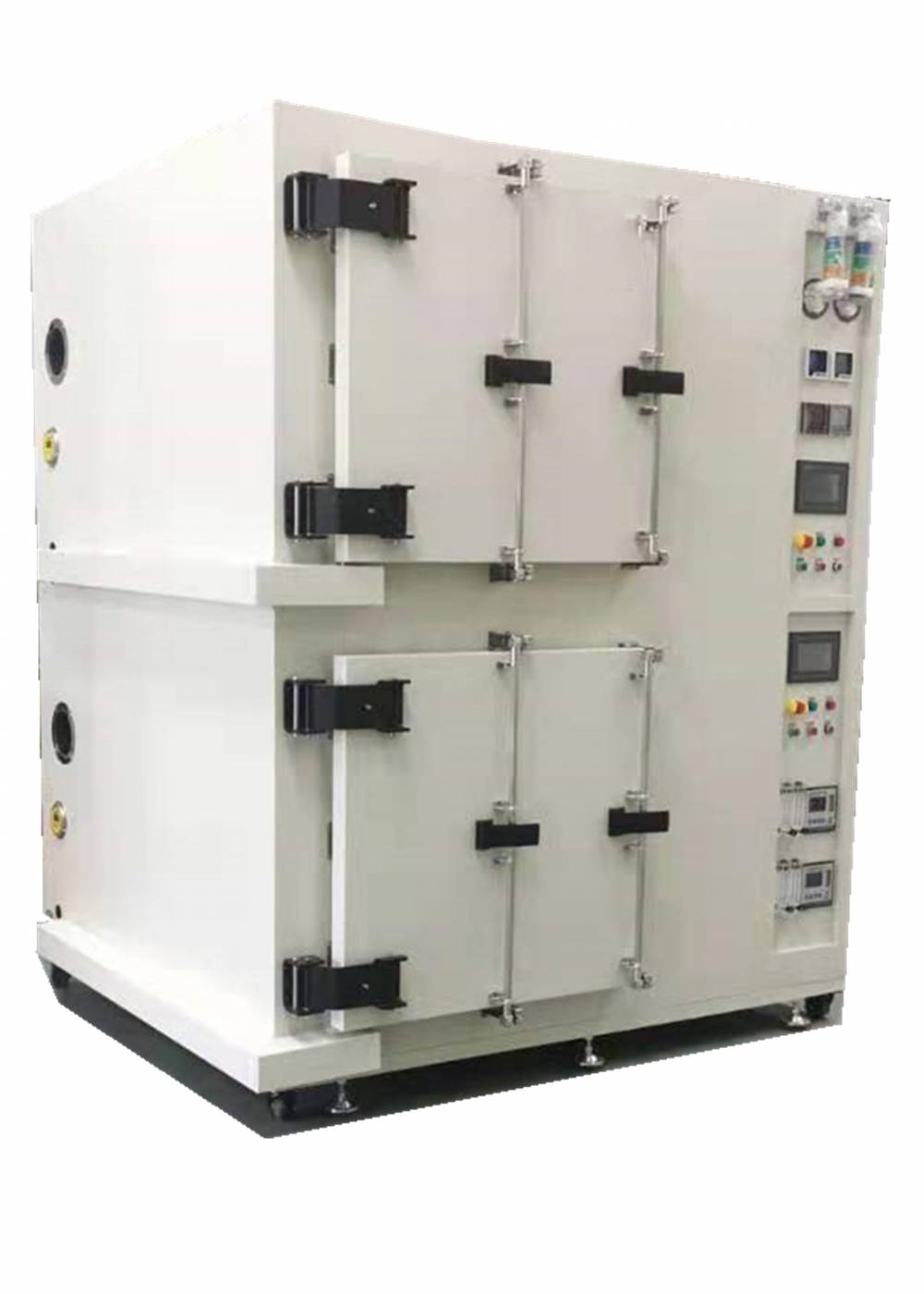

Precision Nitrogen Filling Oven, Multi-Box Nitrogen Oven, Nitrogen Filling Cleanroom Oven, Structural Features of Nitrogen Oven

The interior is made of SUS430# mirror-polished stainless steel sheet with reinforcing iron in concave shape.

2. Made of SUS41# cold-rolled steel plate, with anti-static powder coating.

3. Utilizes premium thermal insulation with a 90mm thick layer, plus a heat-insulating panel.

4. Utilizes high-temperature-resistant adhesive clamp, with temperature resistance ≥ 260°C.

5. Equipped with a modern door lock, featuring adjustable American deadbolts.

6. Multi-box control from top, bottom, left, and right with independent operation design; control box is located on the side of the machine.

7. Utilize nickel-chromium alloy ceramic heaters to circulate and heat the gas within the furnace and the supplementary indoor air at the intake, maintaining relative pressure balance between the furnace and the outside. Once the internal gas temperature reaches the set value, the heater automatically stops heating. When the internal temperature falls below the set value, the heater automatically activates to ensure stable internal temperature!

8. Recirculating Air System

Special airflow design ensures even heating temperature.

Utilizing a long shaft motor specifically designed for hot air oven use.

Utilize a high-power turbine.

Precision Nitrogen Filling Oven  Multi-Box Nitrogen Filling Oven  Nitrogen Filling Cleanroom Oven  Technical Specifications of Nitrogen Filling Oven:

Temperature Range: Room temperature to 200/300/400℃

Rise Time: Common rise time to 150℃ is approximately 25 minutes

Over-temperature Control: Over-temperature Protection + Independent Over-temperature Protector

Sensor temperature accuracy: ±0.3℃

Uniformity: ±1.5%℃

Controller accuracy: ±0.5℃

Surface Temperature: Not exceeding room temperature + 10℃ when commonly used at 150℃, excluding the oven door edges and exhaust outlets.

Safety Features:

Motor overcurrent protection, phase sequence protector, residual current circuit breaker, control circuit fuses, fuseless switches, and contactor accessories all use first-grade products that comply with national standards.

Over-temperature alarm with upper limit temperature, temperature hold function.

Can set constant temperature, disconnect heating after temperature is reached, and continue blowing air.

Extendable to a variety of products: HMDS ovens, intelligent HMDS vacuum systems, anti-stick coating machines, high-precision constant-temperature heating platforms, high-temperature oxygen-free ovens, PI ovens, nitrogen ovens, 100-class clean ovens, dust-free oxygen-free ovens, clean ovens, dust-free ovens, high-temperature dust-free oxygen-free ovens, vacuum oxygen-free ovens
