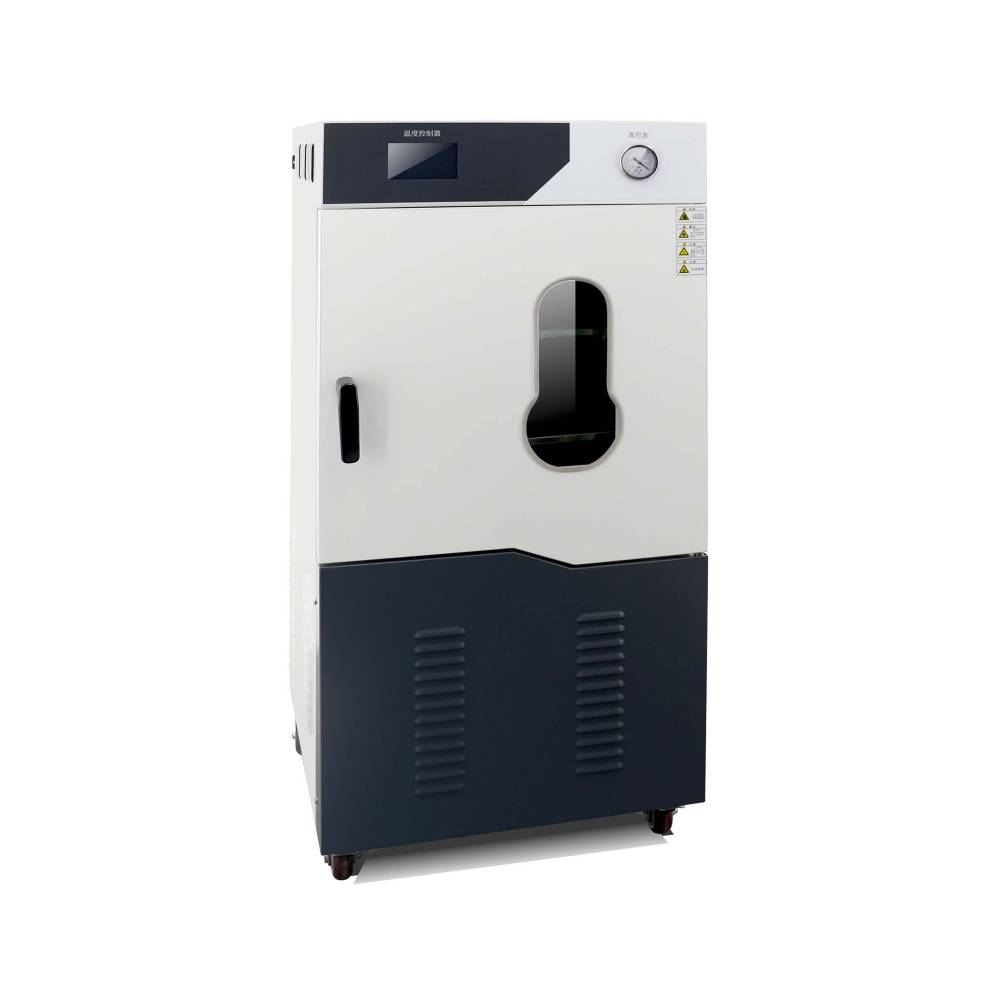

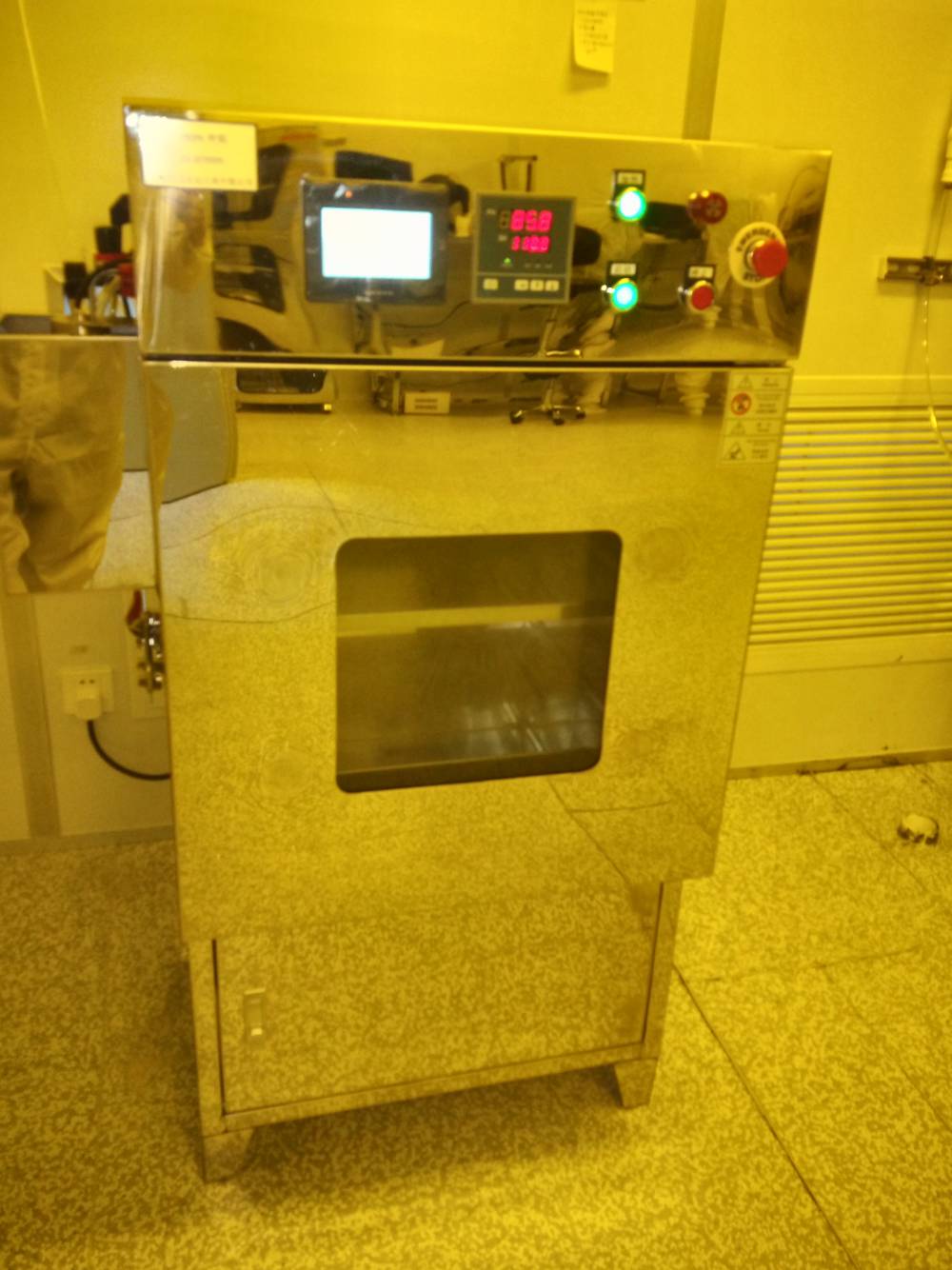

Nitrogen vacuum oxygen-free drying oven, high-temperature oxygen-free vacuum drying oven technical specifications

3.1 Dimensions (Customizable)

Internal腔尺寸: 350W x 350D x 350H (mm)

3.2 Material

The inner box is made of 316L grade stainless steel, while the outer box is constructed from high-quality cold-rolled steel with electrostatic powder coating.

3.3 Temperature Range

RT+10-450℃

3.4 Temperature Resolution

0.1℃

3.5 Temperature Fluctuation

≤±1℃

3.6 Operation Mode

Human-Machine Interface + PLC Control

3.7升温速率 3.7 heating rate

≤10℃/min

3.8 Cooling Method

Rapid cooling

3.9 Vacuum Negative Pressure Value

≤133pa

3.10 Power Supply and Total Power

AC380V±10% / 50HZ

3.11 Nitrogen Control

Dual-channel nitrogen flowmeter, saves nitrogen consumption in oxygen-free and low-oxygen environments

3.12 Safety Protection Device

Safety grounding protection device, over-temperature protection and alarm device, leakage protection device.

3.13 Vacuum Pump

Oil-Free Screw Dry Pump

3.14 Substitute Gas:

Nitrogen

3.15 Support Device:

Foot cups and swivel wheels

3.16 Manufacturer Brand: Junsi

     Nitrogen vacuum oxygen-free drying oven, high-temperature oxygen-free vacuum drying ovenVacuum curing of bonding materials before bonding, LCP film heat treatment, BCB/PI adhesive curing, and other processes. Widely used in semiconductor, electronic products, new materials, healthcare, and other industries, suitable for factories, universities, research institutions, and other venues.

High-temperature oxygen-free ovens, cleanroom ovens, HMDS vacuum ovens, sputtering machines, dust-free oxygen-free ovens, vacuum storage cabinets, nitrogen ovens, ultra-low temperature test chambers, rapid temperature change test chambers, constant temperature and humidity test chambers, high and low temperature shock test chambers, and more equipment, along with customized solutions.---Professional manufacturing/services by Shanghai Junsi Instrument!
