Dongguan Iron Battery Forklifts - Iron Battery Forklift Rental - Price - Quotation - Lease

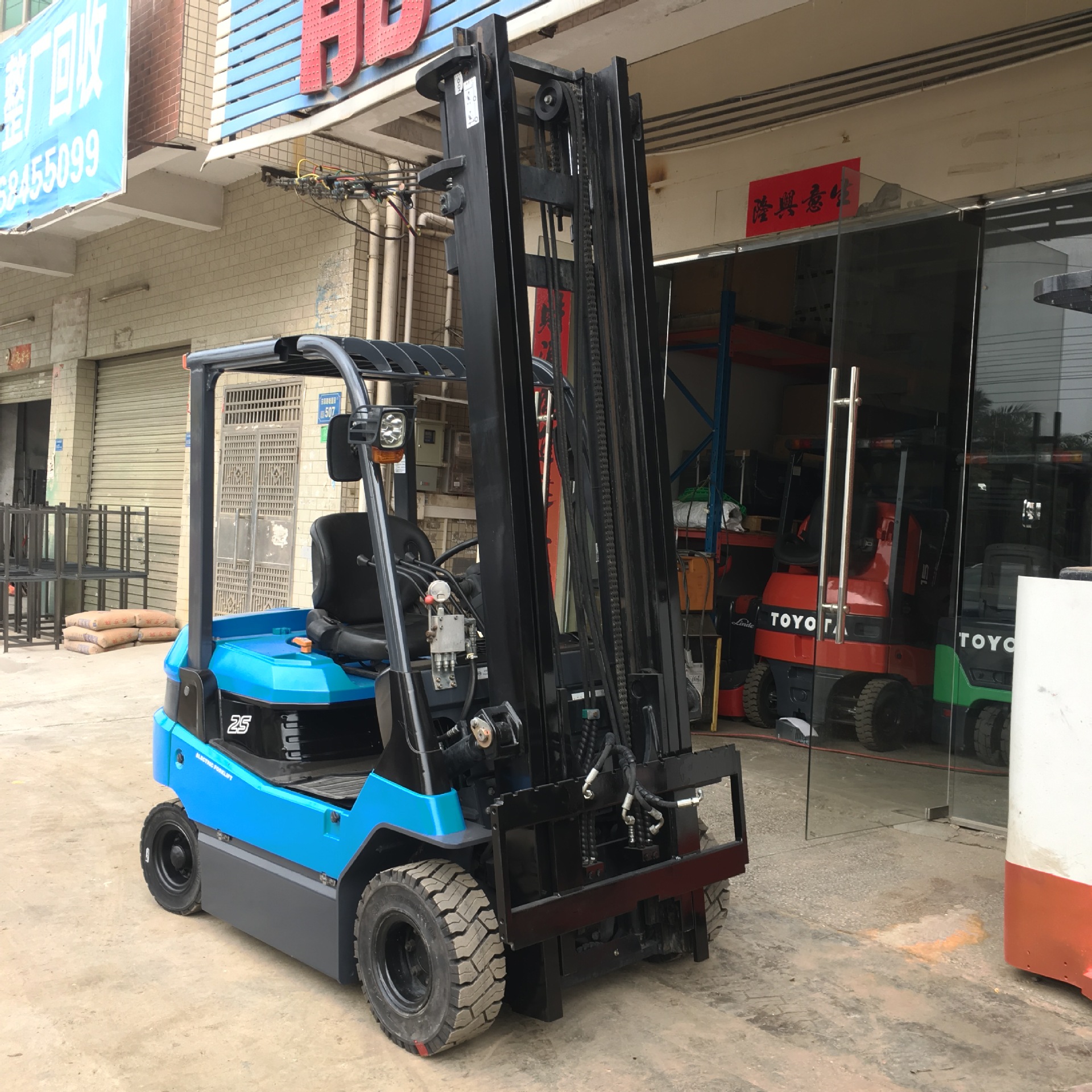

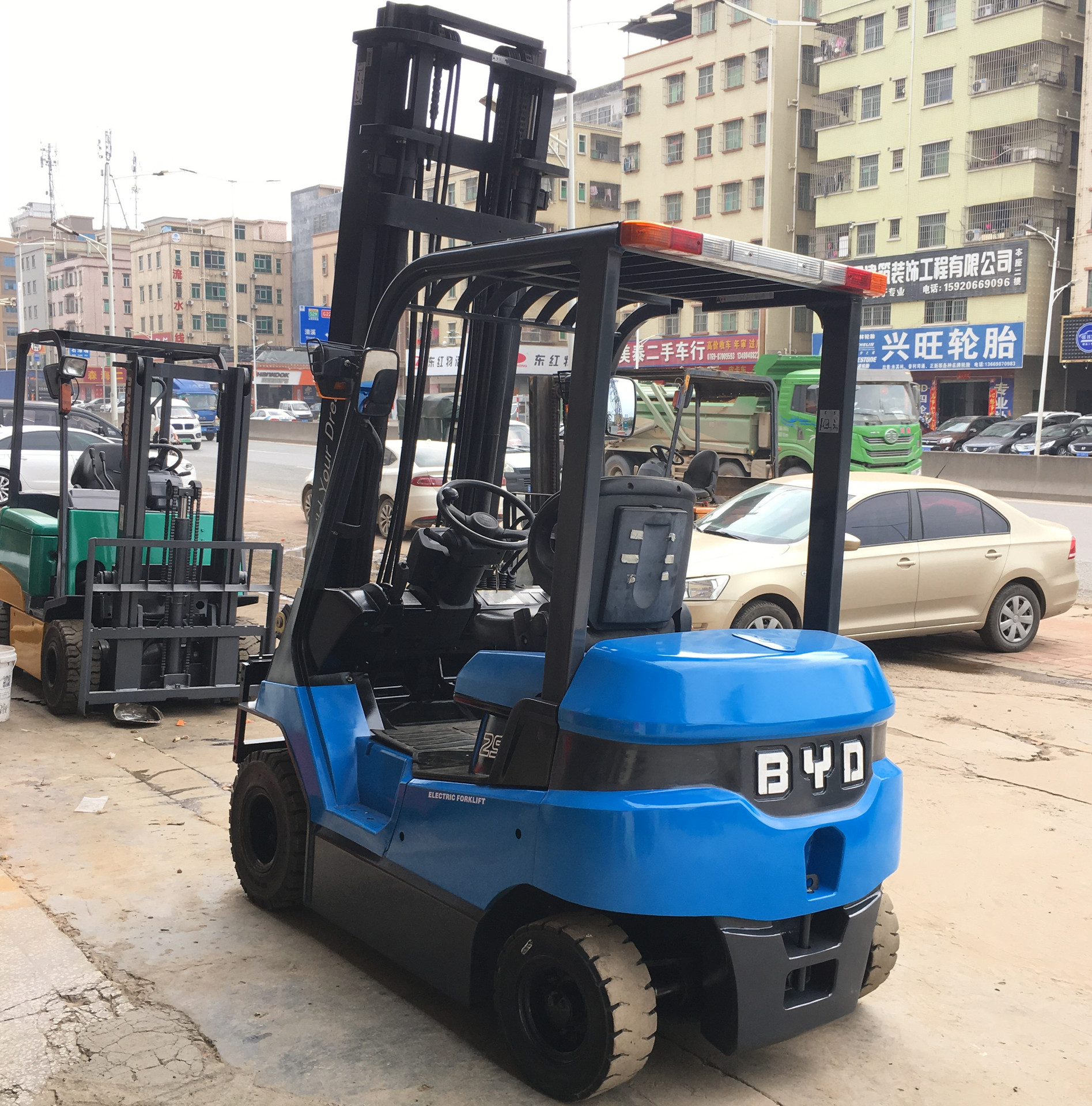

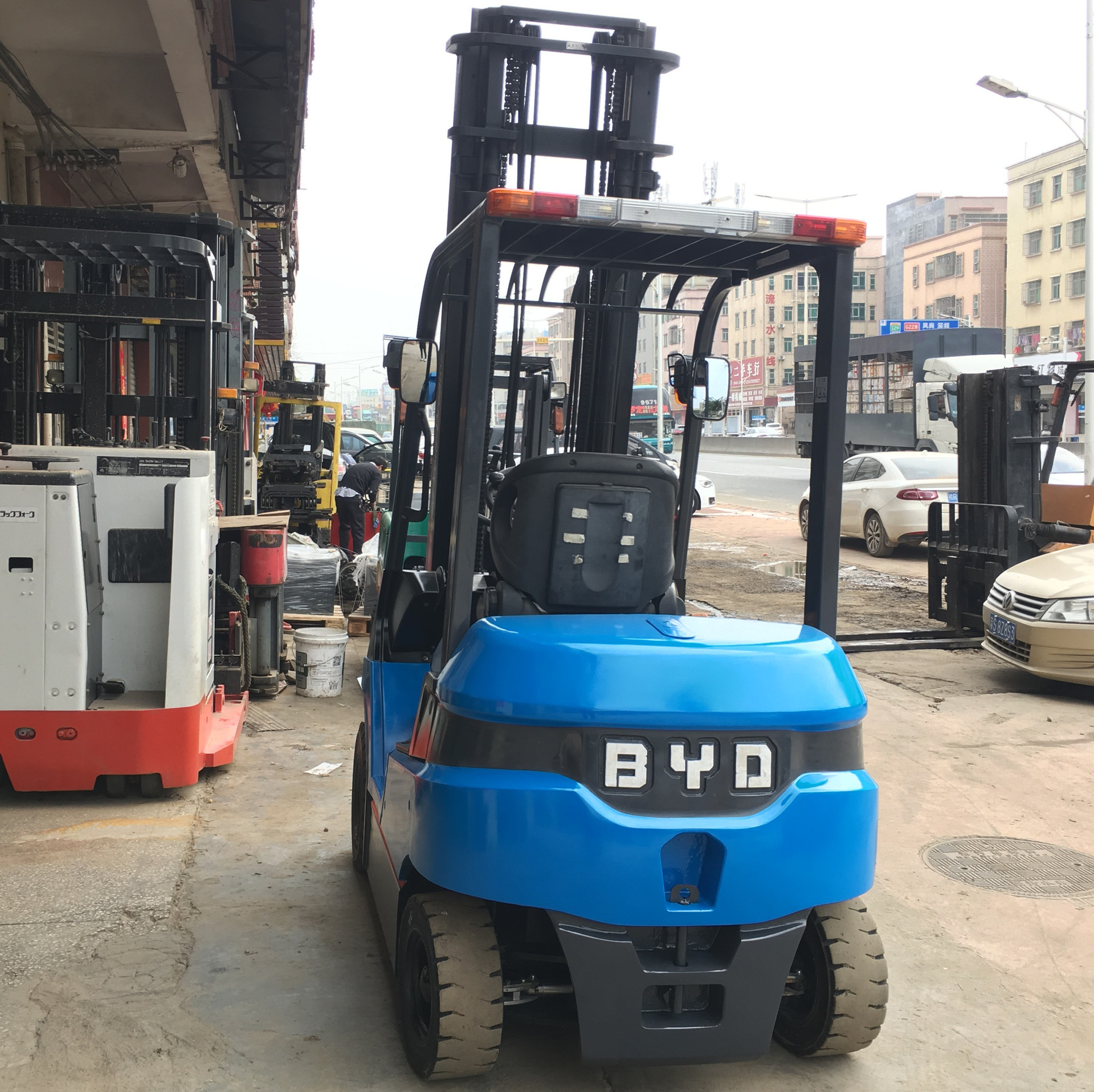

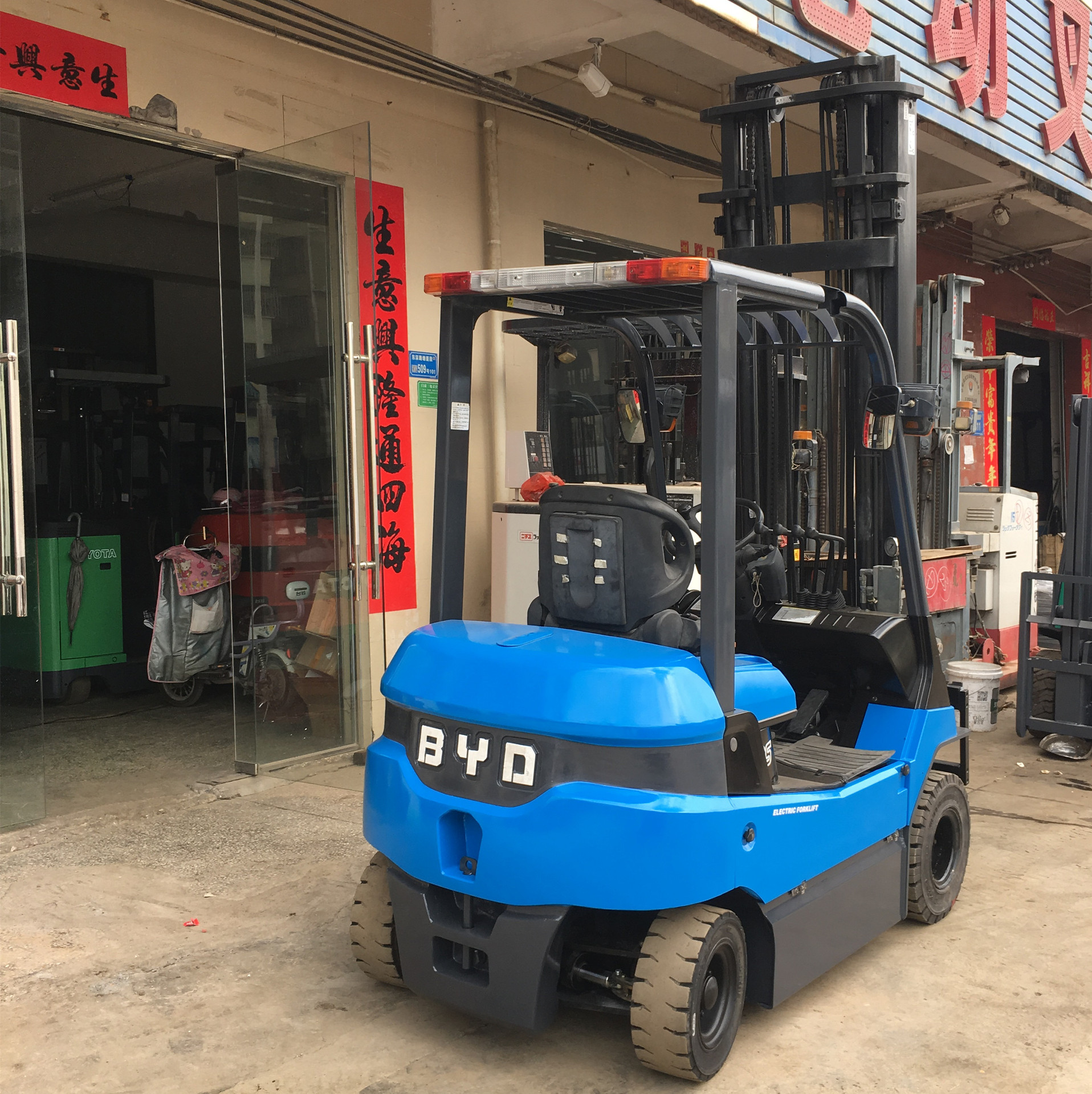

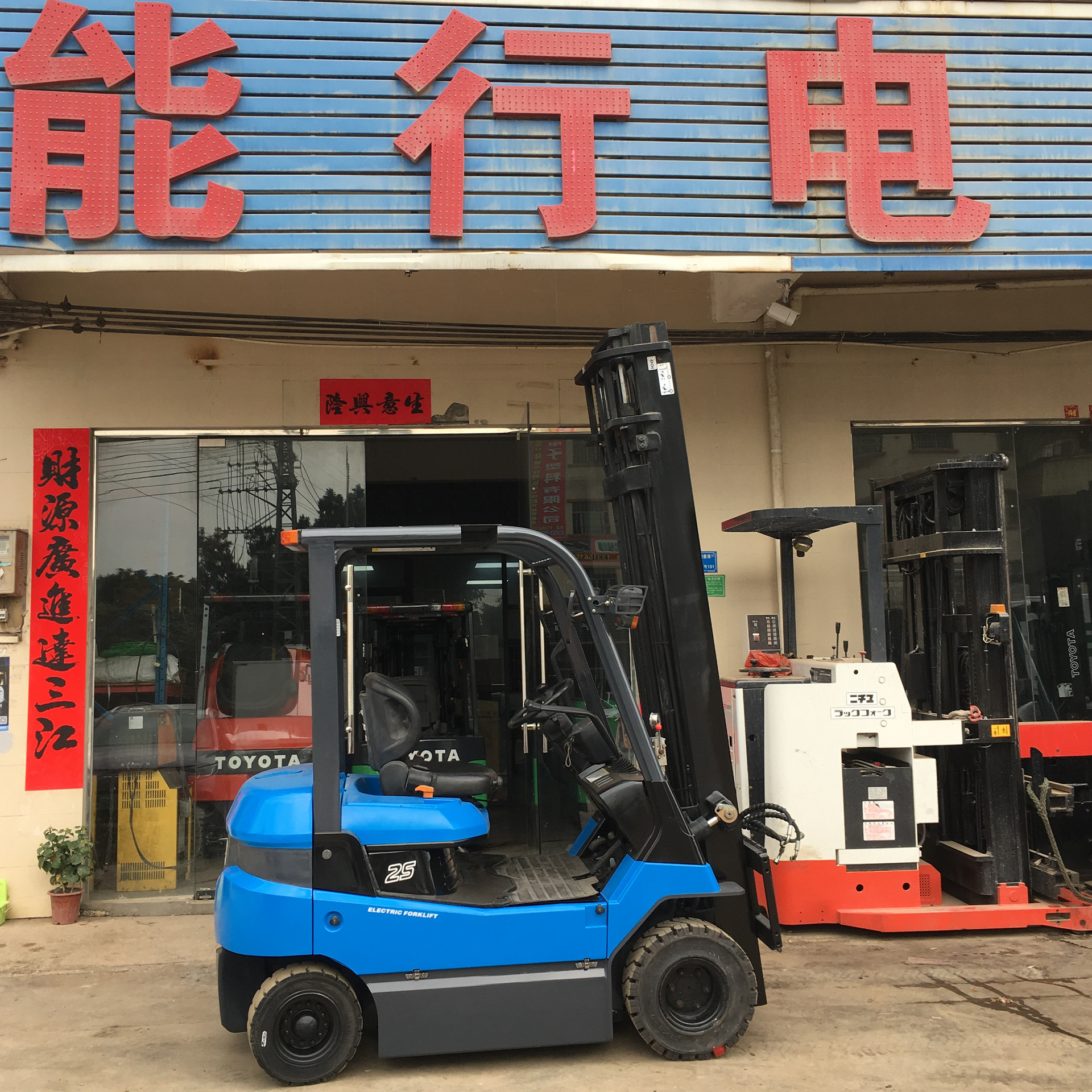

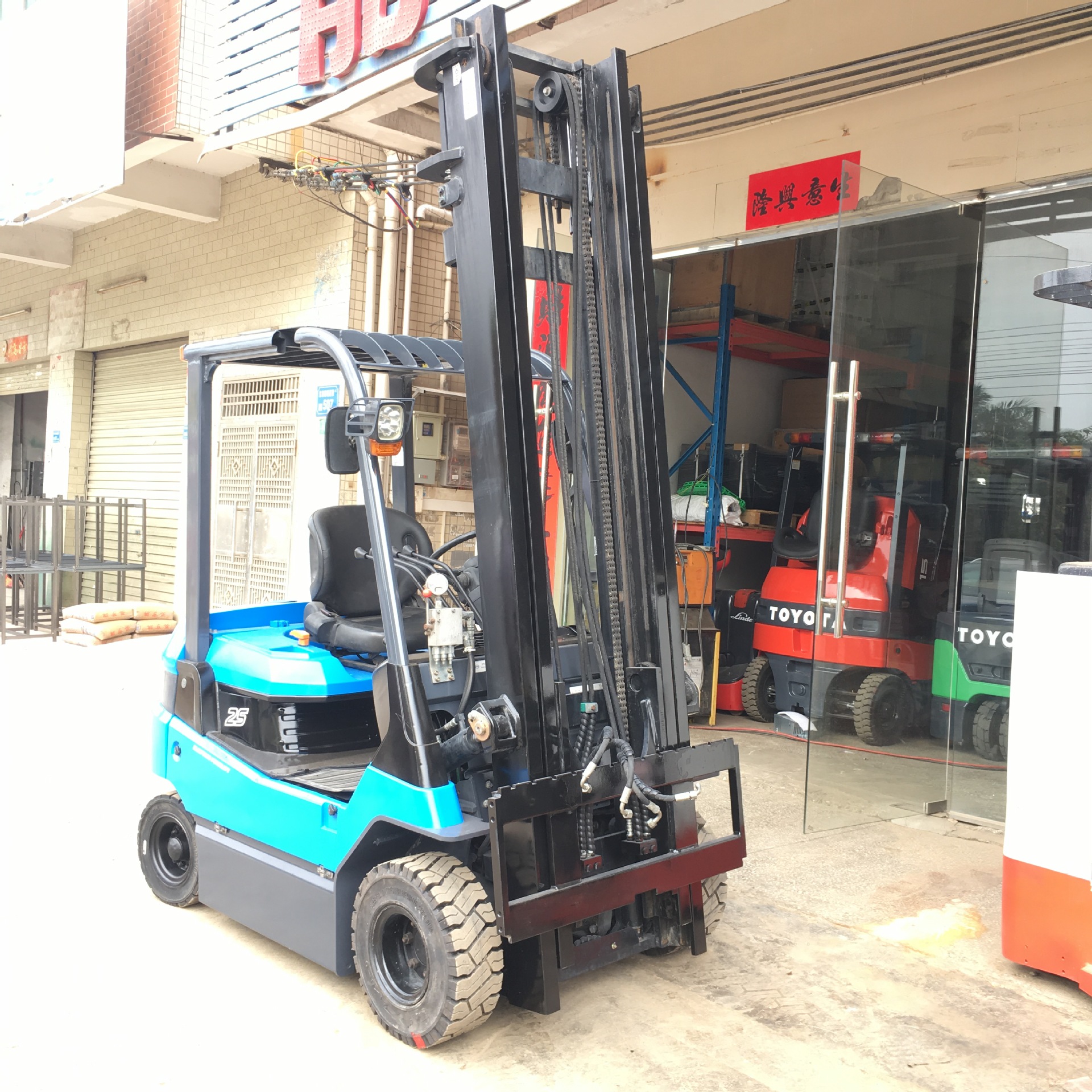

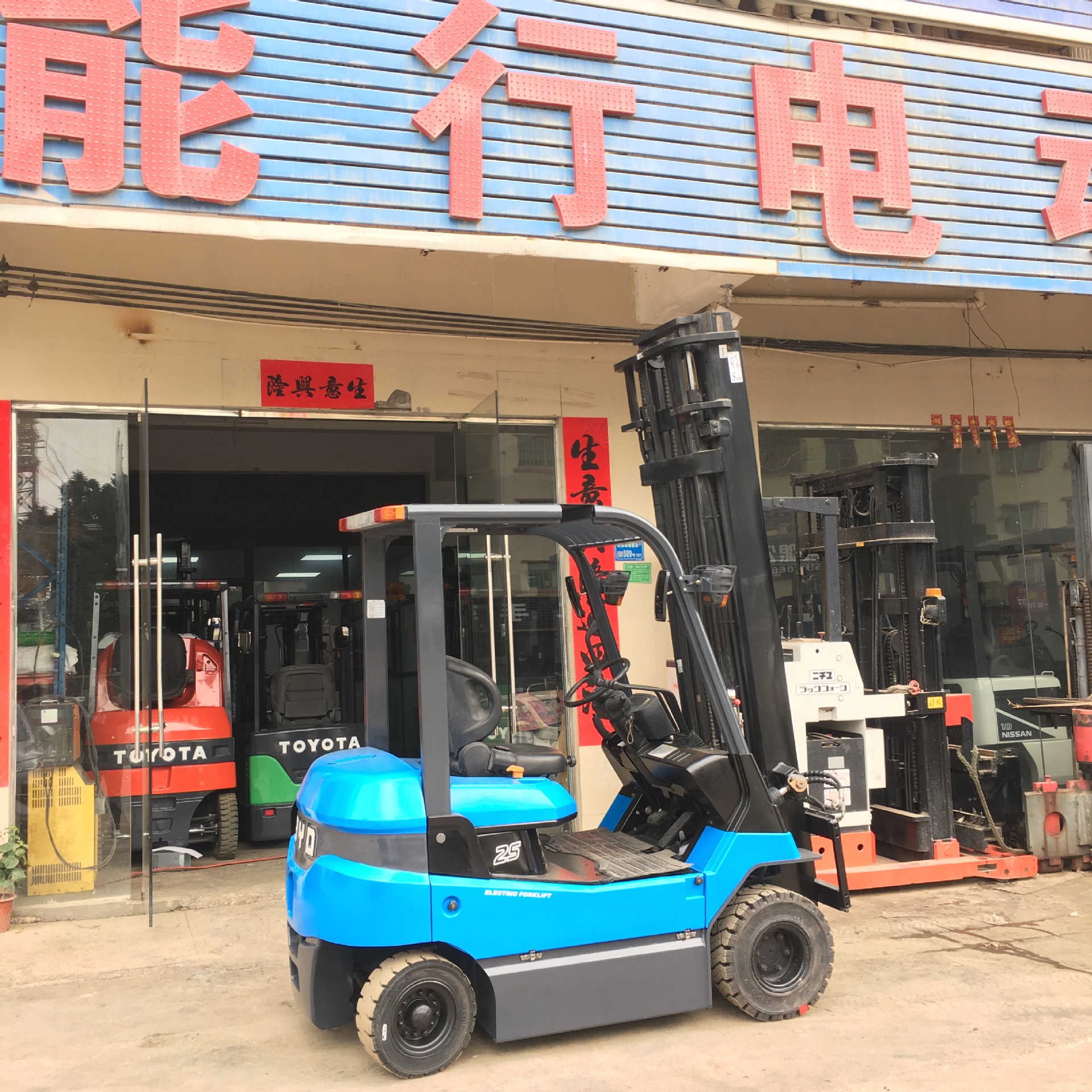

Used BYD Iron-Phosphate Lithium Battery Forklift, two sections lifting to 4.5 meters with four-way valve, fits fridge clamps directly, electric forklift with paper box clamp for rent and sale, looking for electric forklift rentals with Nengxing Electric Forklift
Feature 1.1 Manufacturer: BYD
1.2 Drive Motor
1.3 Operator type Riding type
1.4 Load Capacity/Rated Load 2,500 kg
1.5 Load Center Distance mm 500
1.6 Load distance, center of support arm wheel to face of forks mm 425
1.7 Wheelbasese mm 1505
Weight 2.1 Total Weight (including Battery) Service weight including battery kg 3850
2.2 Axle Load (Loaded), Axle Load with Load, Driver/Tor/Fork Wheel kg 5650/700
2.3 Axle Load (No Load) Axle load, without load, driver/tor/fork wheel kg
Wheel System 3.1 Drive/tor/fork wheel Solid tire
3.2 Front Wheel Size, 21X8-9 mm
3.3 Rear Wheel Size: 18X7-8 mm
3.4 Wheel Dimensionsnalwheels (dimensions) mm one
3.5 Number of Front/ Rear Wheels (x=Driven Wheels) 2X/2
3.6 Front Wheel Track, front mm 970
3.7 Rear Track Width, rear mm 955
Overall dimensions 4.1 Full length mm 3360
4.2 Full Length (excluding forks) Fork Face Length mm 2285
4.3 Overall Width mm 1160
4.4 Fork Lift Height mm 4500
4.5 Maximum Gate Height mm 5740
4.6 Retractable Gate Minimum Height mm 2020
4.7 Overhead Guard Height mm 2195
4.8 Height of Tiller Handle in Drive mm
4.9 Pedal Height (Optional)N/A platform 1 mm
4.1 Fork Dimensions: Thickness/Width/Length s/e/l mm 40x120X1070
4.11 Fork Clearance Width mm 1020
4.12 Tilt Angle Tilt Range Before/After deg 42927
4.13 Free Lift Height mm 205
4.14 Small Right-Angle Stacking Channel Width mm 3850
4.15 Fork spread mm prior to 4.15
4.16 Minimum Turning Radius mm 2020
4.17 Ground Clearance: 95mm
Speed 5.1 (Loaded/Unloaded) Traveling Speed Trel speed, with/without load km/h 13/15
5.2 Lift speed (with/without load) mm/s 330/500
5.3 Lift Speed, With/Without Load: mm/s 450/370
5.4 Max. gradeability, with/without load % 43023
5.5 Service Brake - Hydraulically Actuated Brake
Power Type 6.1 (Loaded/Unloaded) Traveling Speed Trel Speed, With/Without Load kW 9.5
6.2 Lift motor rating at S3 15% kW 12
6.3 Battery Capacity Battery Voltage/Nominal Capacity K5 24/200V/80Ah
6.4 Battery Weight kg 380
Control Method 7.1 Drive Model COMBI AC2
