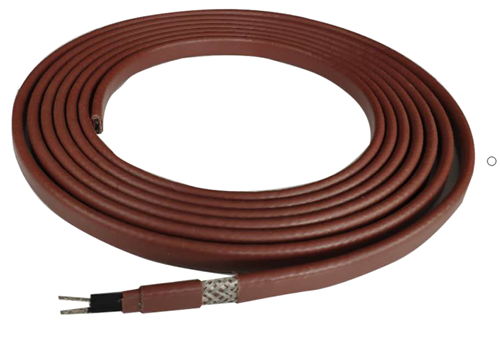

Product Overview:
ZBRSelf-limiting medium temperature electric heating tape, also known as self-regulating electric heating tape, is a new generation of strip-type constant temperature electric heating product. It consists of high polymer conductive carbon particles, two parallel busbars, and an insulating layer.PTCThe heating element features a high positive temperature coefficient of resistance and is connected in parallel.

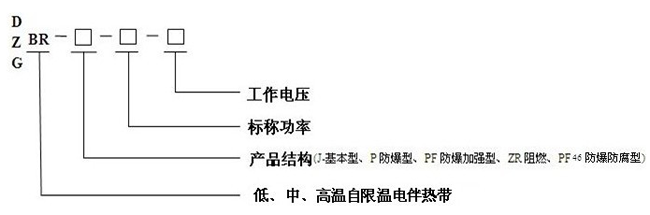

Product Model:

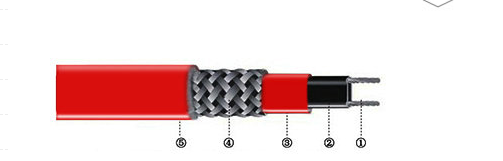

Electric Trace Heating Structure:
①Tinned Soft Copper Wires
②PTCFluoropolymer Core Tape (Heat Conduction Layer)
③Improved Polyolefin Insulation Layer
④Metallic Shielding Layer (Tinned Copper Wire or Aluminum Magnesium Alloy Wire)
⑤Improved Polyolefin Insulation (Flame-Retardant Polyolefins, Perfluorinated)F46Insulation Layer
Technical Indicators:
1Temperature Range: Operating Temperature105±5℃
Expose Temperature135℃
Temperature Tolerance: Modified Polyolefins105℃, Flame-retardant Polyolefins105Fluorinated Polyolefins180℃ Fluorinated Materials205℃
2Construction Temperature: Low-40℃
3Heat Stability:10℃ to149℃ back and forth in a cycle300Next, the cable's heat output remained stable.90No Chinese content provided.
4Bend Radius:-20The temperature is ℃.30.4mm -30Please provide the Chinese content to be translated.40.6mm
5Insulation Resistance: Cable Length100mNo Chinese content provided.75Temperature: ℃; Insulation Resistance Value: [No Chinese content provided]20MΩ, with shielded or explosion-proof protection, room temperature20℃ translates to "degrees Celsius" in American English.2,500VDCShake between the shielding layer and the conductor core1Minutes, the minimum value of insulation resistance is1200MΩ
