Vertical Grinding Machine Introduction

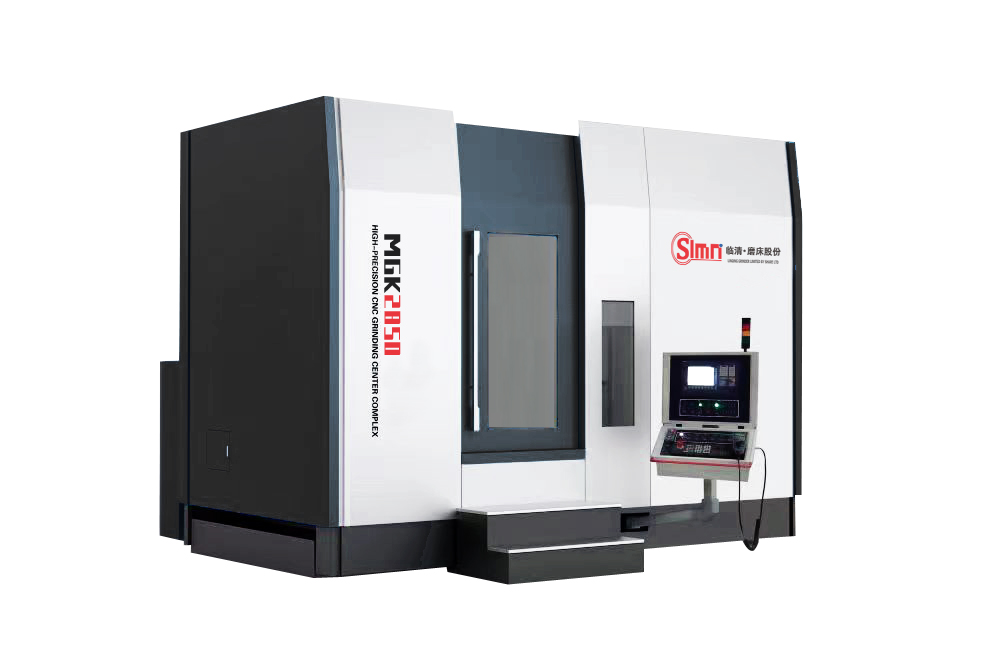

Vertical Grinding MachineIt is a high-precision grinding machine with the spindle vertically arranged, widely used in the processing of heavy, large, or high-precision workpieces.Vertical Grinding MachineDue to its unique structural advantages, it plays a vital role in industries such as aerospace, energy, and bearing manufacturing.

Vertical Grinding Machine Structure Features

Vertical Grinding MachineThe workbench features a vertical main axis design with horizontal rotation, ensuring stability of the workpiece during the grinding process. Compared to horizontal grinding machines,Vertical Grinding MachineNotable advantages are realized in processing large-diameter, high-weight workpieces, such as large bearing rings and turbine disks.

Vertical Grinding MachineThe primary components include:

• Vertical Main Axis SystemDelivers high rigidity and precision grinding power.
• Rotary TableSupporting workpieces and achieving precise indexing.
• Grinding Wheel Dressing DeviceEnsure grinding accuracy and surface quality.
• Numerical Control System (CNC)Achieve automated and intelligent processing.

Vertical grinding machine main types

1. Vertical Planer Grinder

• Precision grinding for end faces and flat surfaces, such as molds and valve plates.
• Vertical Grinding MachineThe vertical structure effectively reduces the deformation of workpieces.

1. Vertical External Cylindrical Grinder

• External cylindrical grinding for cylindrical and conical workpieces, such as roller shafts and main shafts.
• Vertical Grinding MachineIts high rigidity makes it suitable for machining large-sized parts.

1. Vertical Internal Cylindrical Grinder

• Precision grinding for internal bores and conical surfaces, such as bearing inner rings, hydraulic cylinders, etc.
• Vertical Grinding MachineThe stability ensures high-precision internal circular processing.

1. Vertical Compound Grinding Machine

• The machine can simultaneously perform external and internal cylindrical grinding, as well as face grinding, making it suitable for complex components.
• Vertical Grinding MachineThe multifunctional design enhances production efficiency.

Core Advantages of the Vertical Grinding Machine

• High rigidityVertical structure reduces vibration, enhancing processing stability.
• High PrecisionSpindle vibration ≤0.001mm, surface roughness up to Ra 0.1μm.
• High carrying capacityIdeal for processing heavy and large workpieces.
• High degree of automationCNC control with automatic trimming and online measurement support.

Four: Typical Applications of Vertical Grinding Machines

Vertical Grinding MachineIndispensable in critical processing stages across multiple industries:

• Energy IndustryNuclear Reactor Turbines, Wind Turbine Bearings.
• AerospaceEngine blades, landing gear parts.
• Bearings ManufacturingPrecision grinding of large bearing rings.
• Automotive IndustryTransmission Gear and Brake Disc Machining

Vertical Grinding Machine vs. Horizontal Grinding Machine

Comparison: Vertical grinding mills vs. Horizontal grinding mills - Applicable workpiecesLarge diameter, heavy-duty parts; long shafts; slender componentsStructural stabilityVertical layout with strong anti-vibration properties; horizontal layout suitable for long piece support.Square footageSmaller/Larger (considering workpiece overhang)

How to Choose a Vertical Grinding Machine?

1. Part DimensionsSelect the appropriate workbench specification based on diameter and height.
2. Precision RequirementsFocus on parameters such as shaft vibration and repeat positioning accuracy.
3. Automation RequirementsDo you require CNC control and an automatic loading and unloading system?
4. Grinding Wheel TypesSelect CBN or diamond grinding wheels based on material choice.

Seven: Maintenance Key Points for Vertical Grinding Machines

• Regular lubricationEnsure long-term stability of the spindle and guide rail.
• Grinding Wheel BalancingPrevent vibration from affecting processing accuracy.
• Coolant ManagementMaintain cleanliness to prevent scratching of workpieces.

Vertical Grinding MachineWith its high precision, high rigidity, and efficient machining capabilities, it has become an indispensable piece of equipment in modern manufacturing. Whether for large components or products with high precision requirements,Vertical Grinding MachineWe deliver exceptional solutions!
