Vertical Grinding Machine Usage Scenarios and Application Analysis

Vertical Grinding Machine Overview

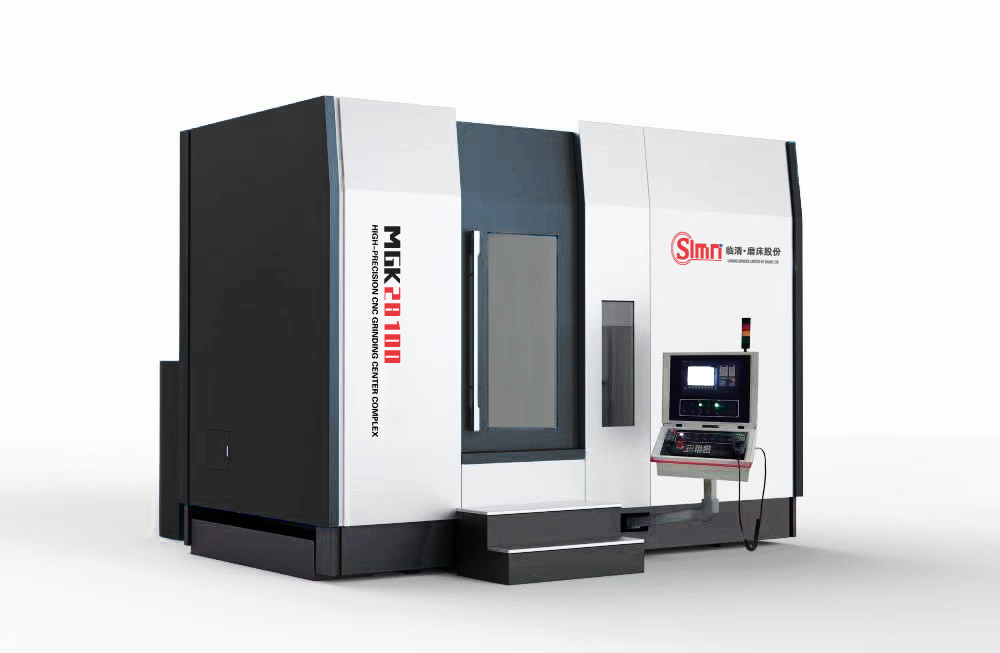

A vertical grinding machine is a crucial precision processing equipment with its main shaft arranged vertically. Workpieces are typically mounted on a horizontal worktable. Compared to horizontal grinding machines, the vertical structure boasts features such as a smaller footprint, high rigidity, and ease of operation, making it widely used in various precision processing fields.

Section Two: Main Application Scenarios

Large-scale parts manufacturing

• Heavy Equipment ManufacturingUsed for processing large bearing bases, gearbox bodies, and other heavy-duty mechanical components.
• Energy EquipmentPrecision grinding for turbine casings, hydraulic turbine components, and other energy equipment
• ShipbuildingLarge ship propulsion components and steering gear parts, flat and internal/external cylindrical grinding

2. High-Precision Component Manufacturing

• Aerospace IndustryPrecision machining for aircraft landing gear parts and engine components
• Precision Mold ManufacturingHigh-precision finishing of cavities and parting surfaces for large injection molds and die casting molds
• Optical InstrumentsLarge optical lens base flat grinding

3. Bulk Production Scenario

• Automotive IndustryBatch precision machining of transmission cases and braking system components
• Hydraulic ComponentsHigh-efficiency grinding for large hydraulic valve bodies and cylinder ends

Typical Application Cases

1. Wind Turbine Equipment ManufacturingPrecision grinding for large wind turbine bearings ensures operation accuracy under high loads.
2. Railway TransportationHigh-speed rail bogie component flat and contour grinding
3. ManufacturingPrecision Machining for Large Weapon Equipment Components

Four: Advantages and Characteristics of Vertical Grinding Machines

1. Structural stabilityVertical layout minimizes workpiece deformation, enhancing machining accuracy.
2. Space EfficiencyCompact in size, ideal for workshops with limited space.
3. User-friendlyWorkpiece clamping is convenient, and the machining process is easy to observe.
4. VersatilityConfigurable with various attachments for various grinding functions, including flat surfaces, inner and outer circles, and contours.

V. Selection Considerations

1. Part Dimensions and Weight
2. Process Precision Requirements
3. Production batch sizes
4. Automation Level Requirement
5. Workshop Space Conditions

The vertical grinding machine, with its unique structural advantages, plays an irreplaceable role in modern manufacturing, particularly suited for high-precision processing of large and heavy-duty workpieces.
