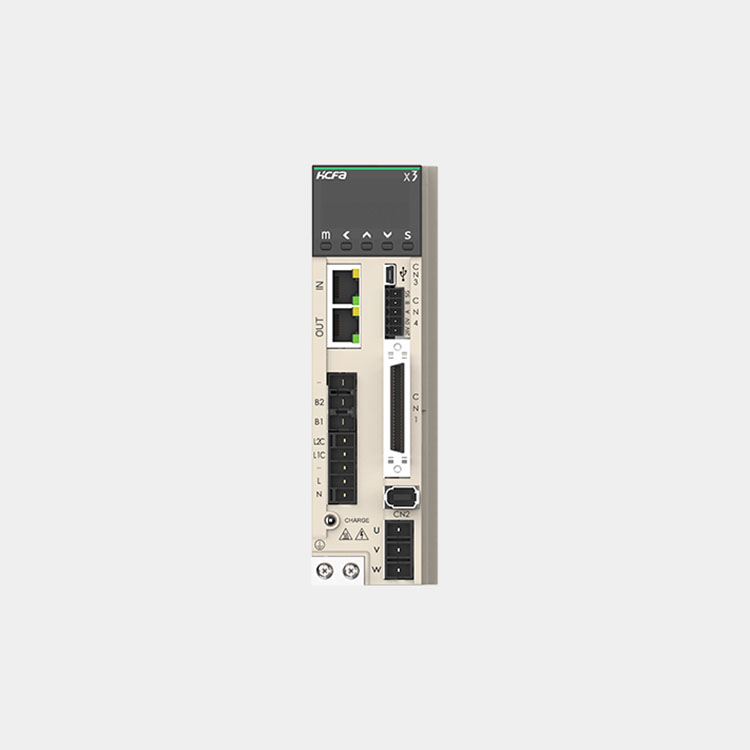

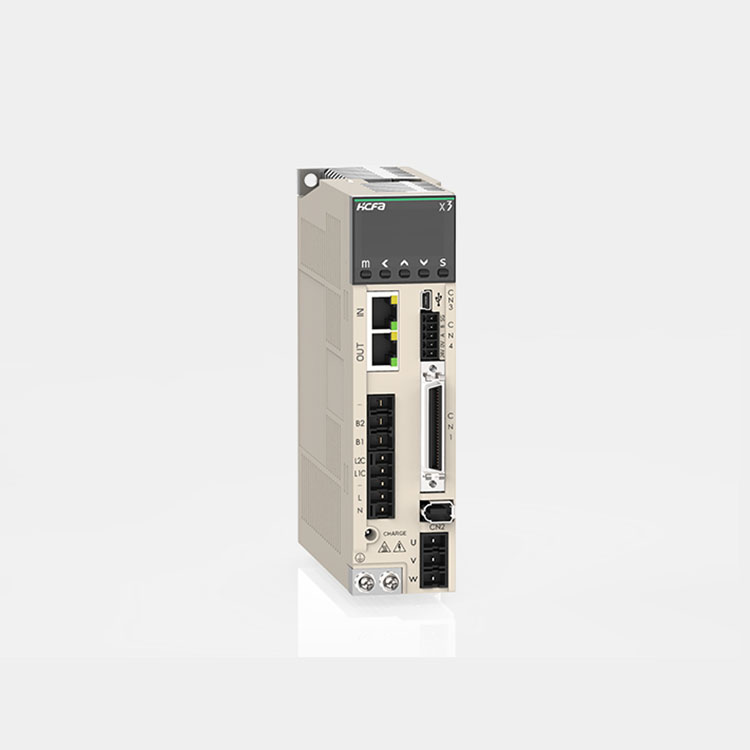

Product Series: X3E General Purpose Servo Drive

Driver Type: A-Pulse Command, B-EtherCAT Bus, N-CANOpen Bus

Power Range: 50W~750W, Single Phase 220V, 1.0kW~2.5kW, Three Phase 220V

Supported Protocols: Modbus RTU, EtherCAT, CANOpen, etc.

Unique Features: Full-closed loop,龙门 synchronization

Product Features

LCD display, compact design architecture, conforms to industrial aesthetic design

Supports 17-bit and 23-bit high-precision motors, stable and reliable performance, covering OEM industry applications

Complete position control mode, real-time gain adjustment technology, high usability

Rich communication protocols, supporting EtherCAT, CANopen, Modbus RTU

Industry-specific features supported, reducing the threshold for industry applications: Full closed-loop, gantry synchronous movement

Product Specifications

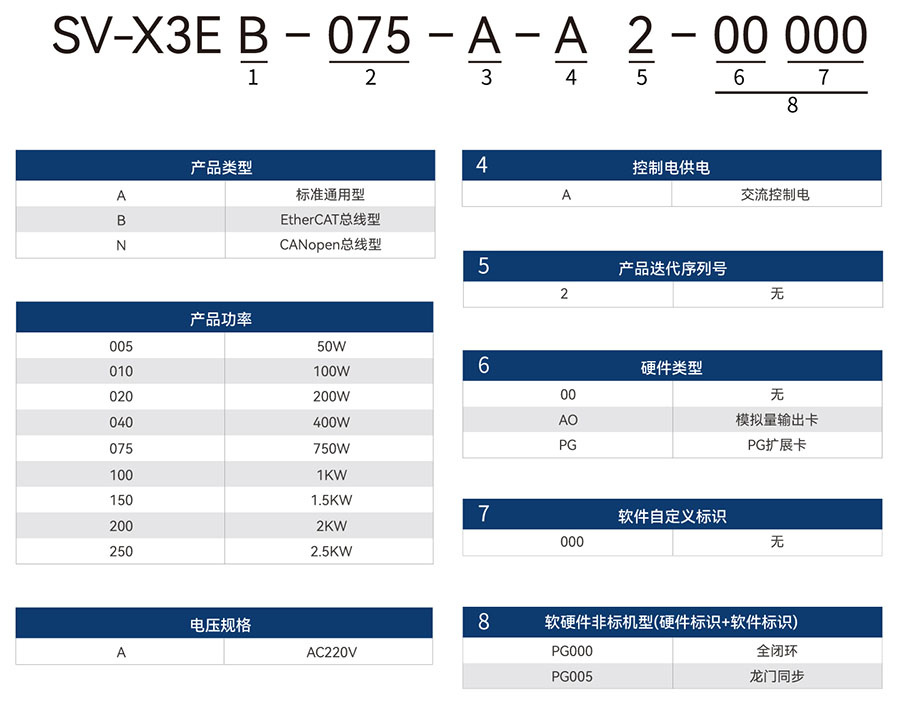

Naming Rules:

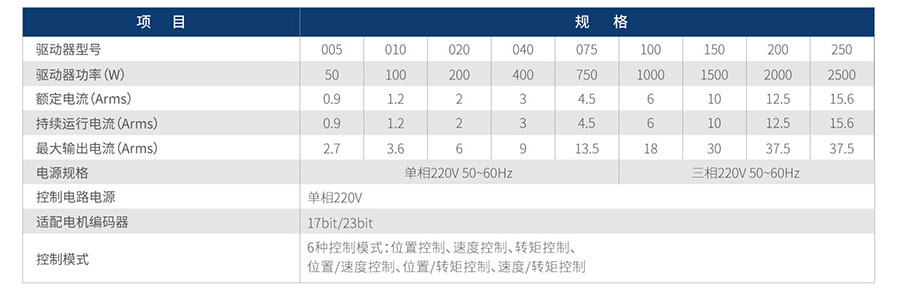

Basic Specifications:

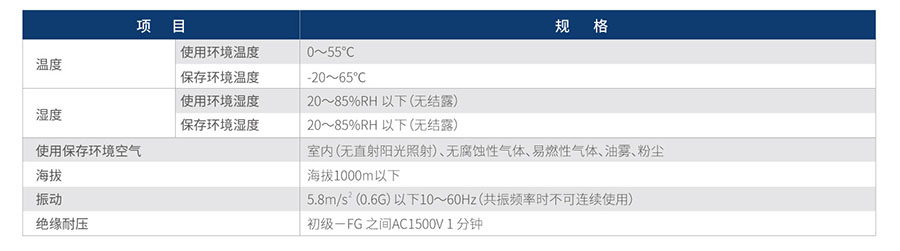

Environmental Specifications:

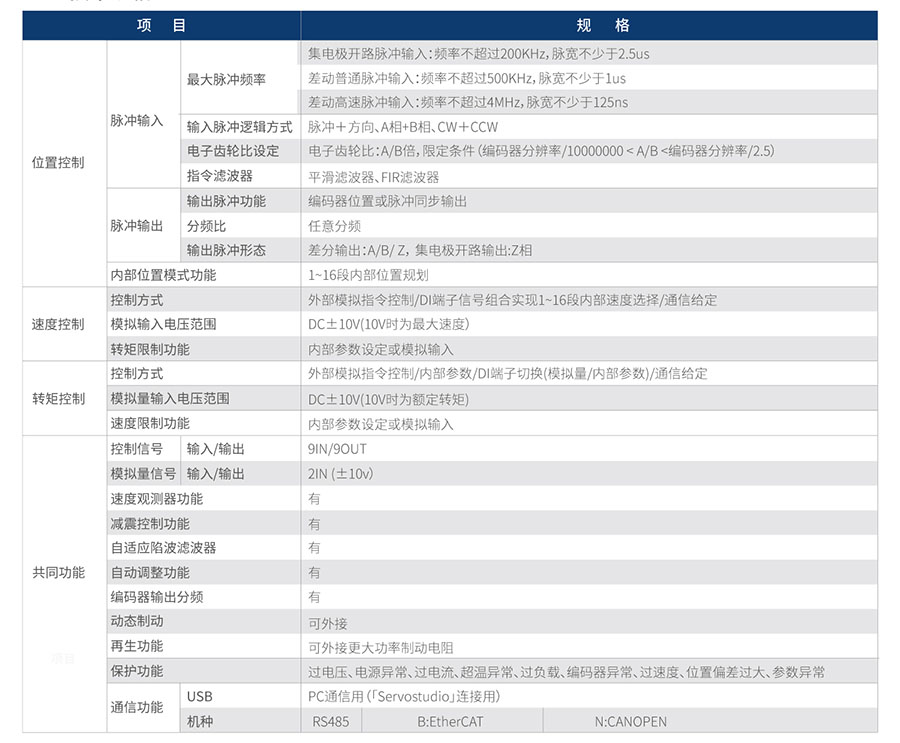

Technical Specifications:

Product Dimensions:
