Product Series: DFU Series Ball Screw

Axle Diameter: Φ16-Φ100

Pitch Range: 04-20mm

Product Applications: Widely used in various equipment such as automated machinery, precise measuring instruments, and heavy-duty machinery.


Product Features


Double Nut Design

Utilizing a double-nut design to enhance load capacity and precision; pre-tightening the two nuts eliminates gaps, achieving high-precision transmission.

High Load Capacity

The design of the double nut allows for greater load-bearing capacity than a single nut screw, meeting the requirements of heavy machinery.

High precision

Eliminate axial clearance and enhance rigidity; the double nut screw can achieve high-precision transmission.

High stability

Double nut screw shafts exhibit minimal vibration and noise during the transmission process, ensuring smooth and reliable operation.


Product Specifications

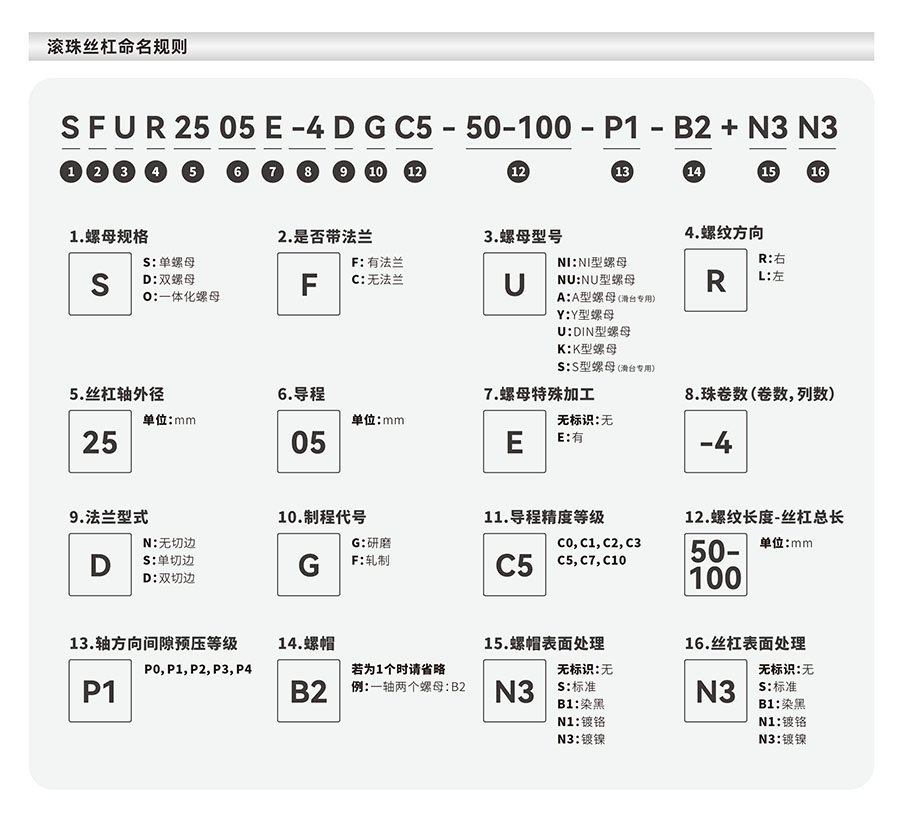

Naming Rules:

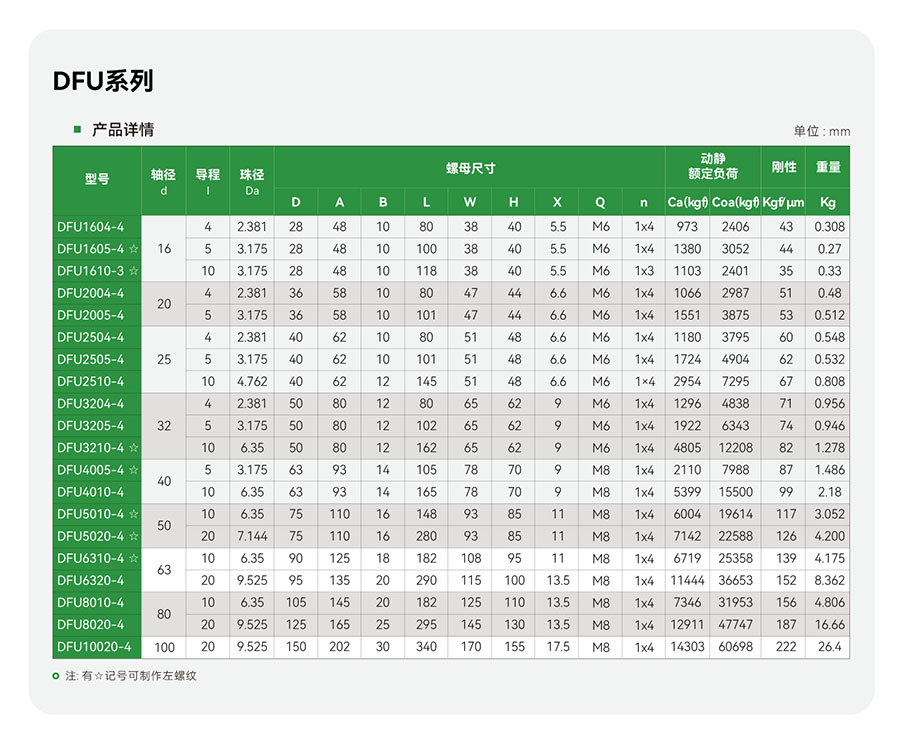

Selection Parameters:

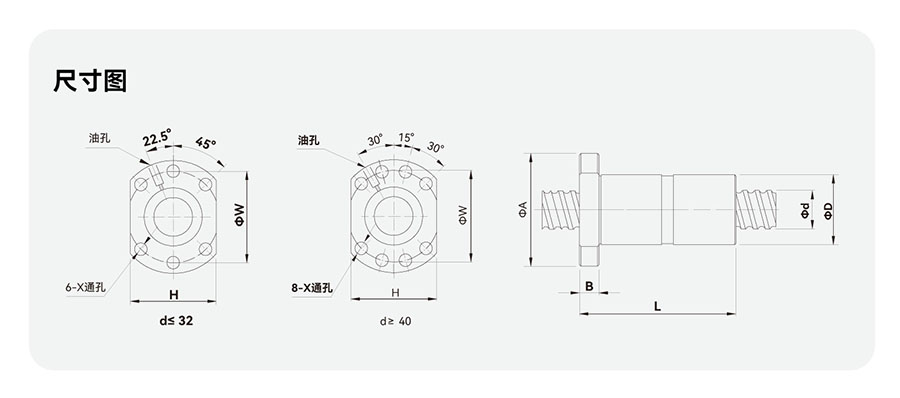

Dimensional drawing:
