The DDR motor is a high-precision, high-rigidity, and high-torque direct-drive motor.Due to its high output torque, it is also known as a torque motor.

HeChuan HR series DDR motors are integrated with high-resolution encoders.Boasts fast response speed, accurate positioning, and high repeatability precision.

DDR motors are widely used in industries such as laser cutting, inspection, rotary tables, and industrial robots.

Product Features

Simple structure------

The load can be directly connected to the motor.

No intermediate drive components

Large and medium-sized hollows------

Large central hole allows cables, shafts, lasers, etc., to pass through

Low-temperature rise------

Reduced cooling time

Shorten customer production cycle

High precision and high rigidity------

Motor features an integrated optical encoder, enhancing the system's superior positioning accuracy.

The motor is equipped with high-rigidity crossed roller bearings.

Enhance the motor's high load-bearing capacity

Low Axial------

Low radial runout

Product Specifications

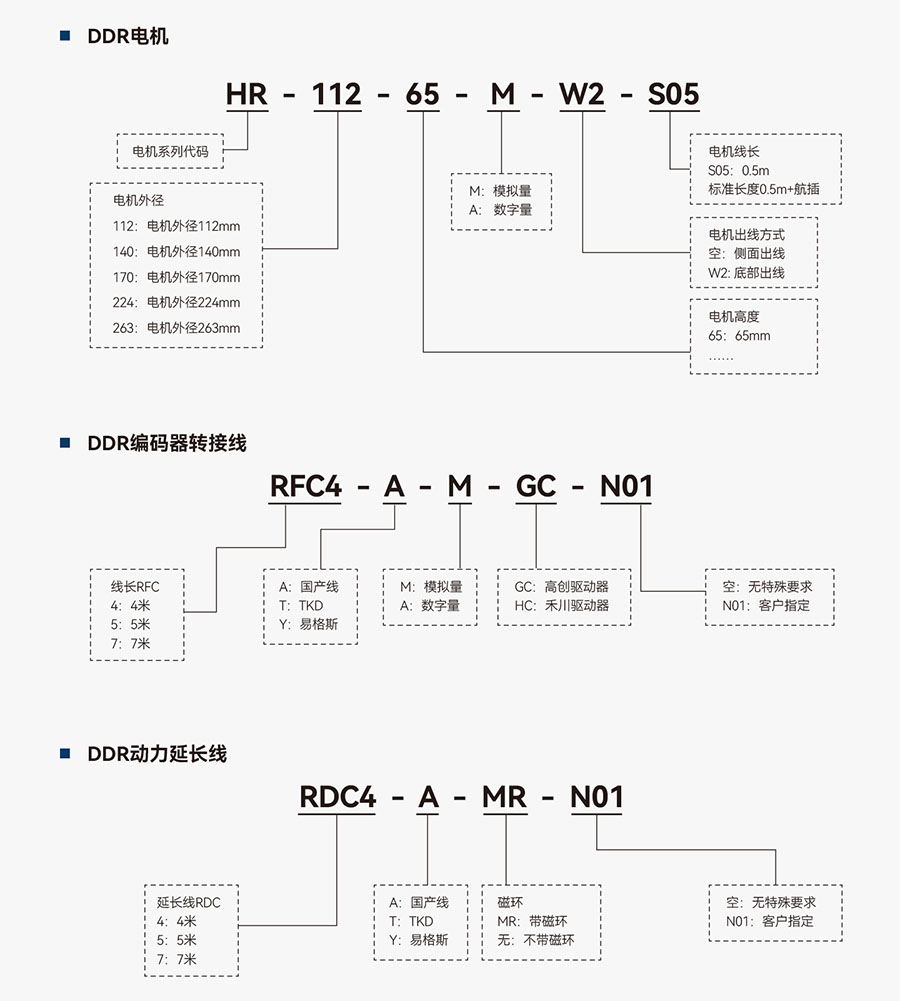

Naming Convention:

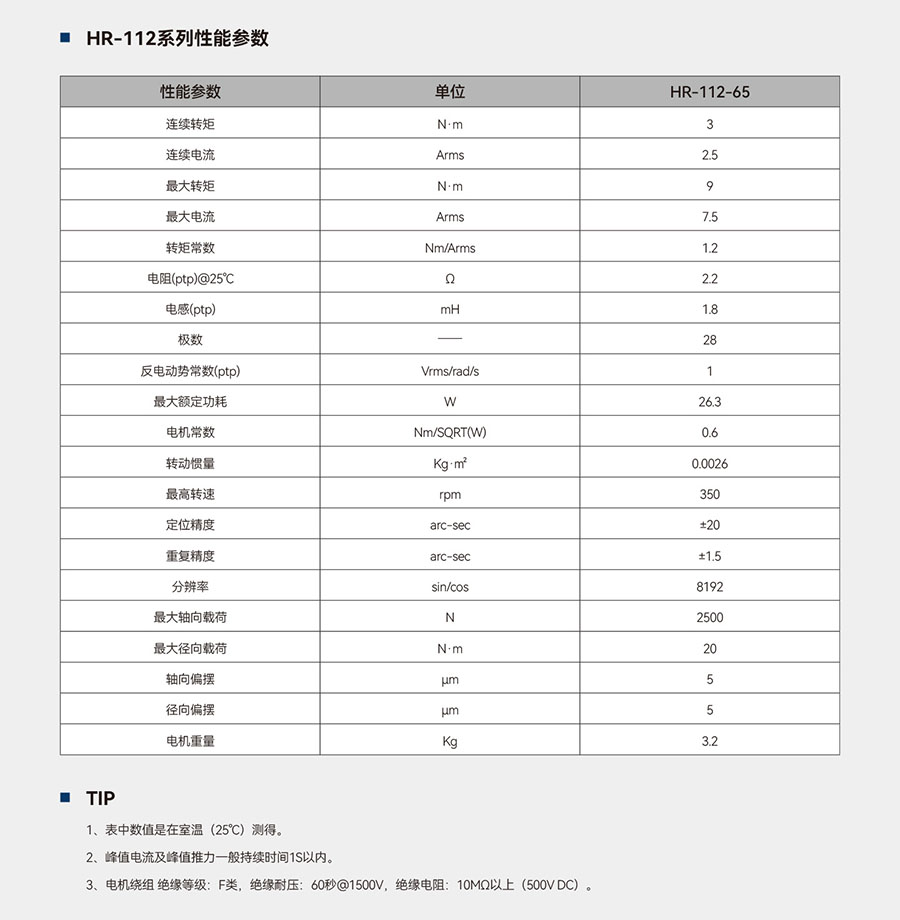

Technical Specifications:

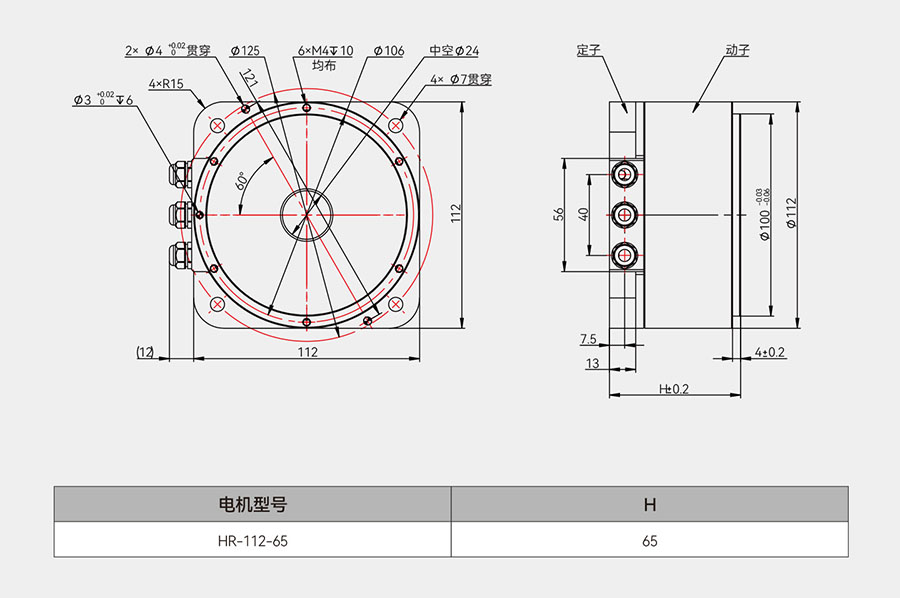

Product Dimensions:
