• Semi-enclosed structure

• Travel: 100-1500mm

• Maximum Speed: 5 m/s

• Continuous Thrust Range: 61-121N

• Peak Thrust Range: 183-366N

• Guide Rail Specification: 15#-2 pcs

Product Features

Wear-free and maintenance-free

Adopting contactless transmission method

Minimize mechanical friction losses to the maximum extent.

Less frequent malfunctions, no maintenance required

Work safety and reliability, long lifespan

Endless Journey------

Achieve any journey design

Add multiple stators of various lengths to meet customer requirements.

Strong speed adaptability------

Achieve high and low-speed operation

High rigidity------

There is no transmission gap between the motor and the load in the straight module.

During loaded movement, it boasts high dynamic rigidity.

High dynamic response performance------

Highly accelerated large motor

Typically, we offer 2-5G of acceleration.

Small motors typically offer acceleration exceeding 10G.

Product Specifications

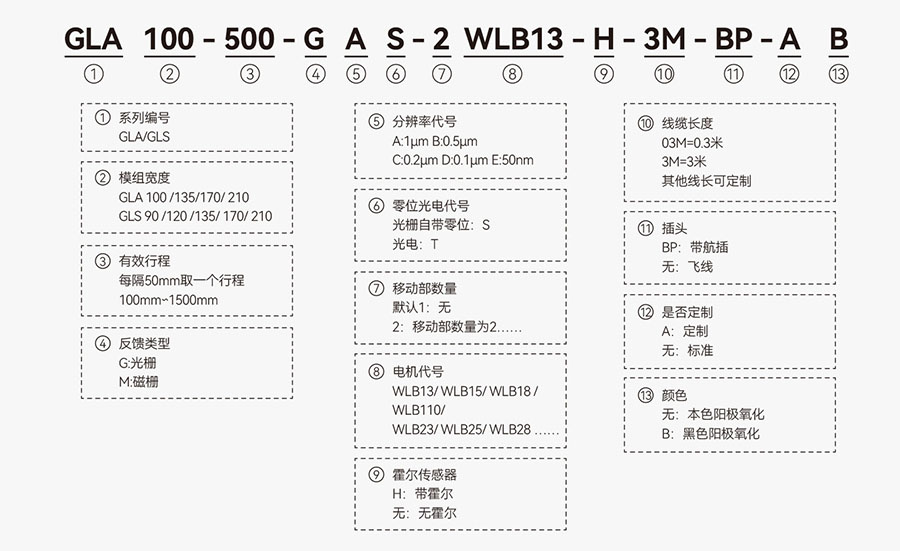

Naming Rules:

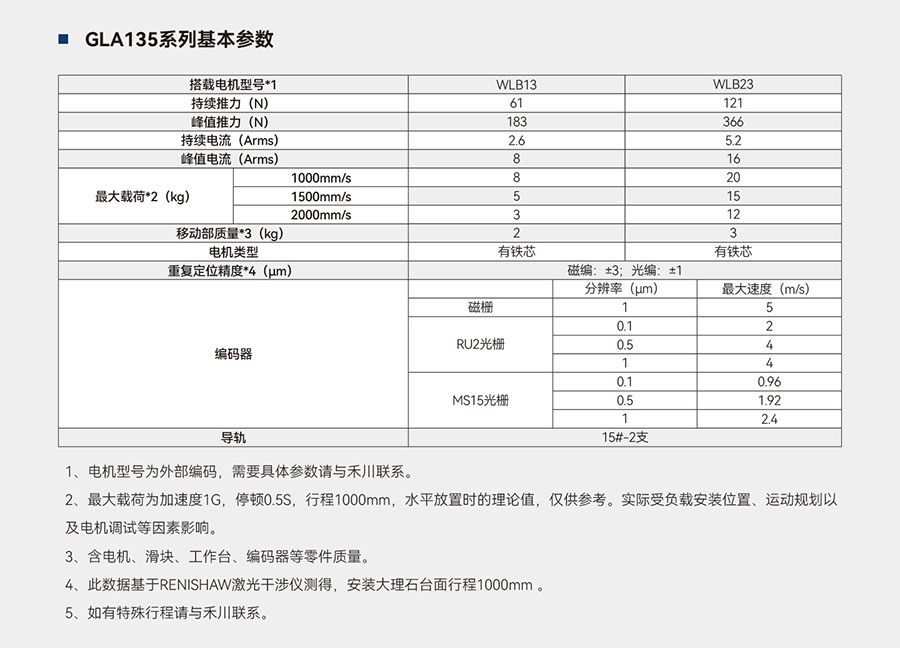

Technical Specifications:

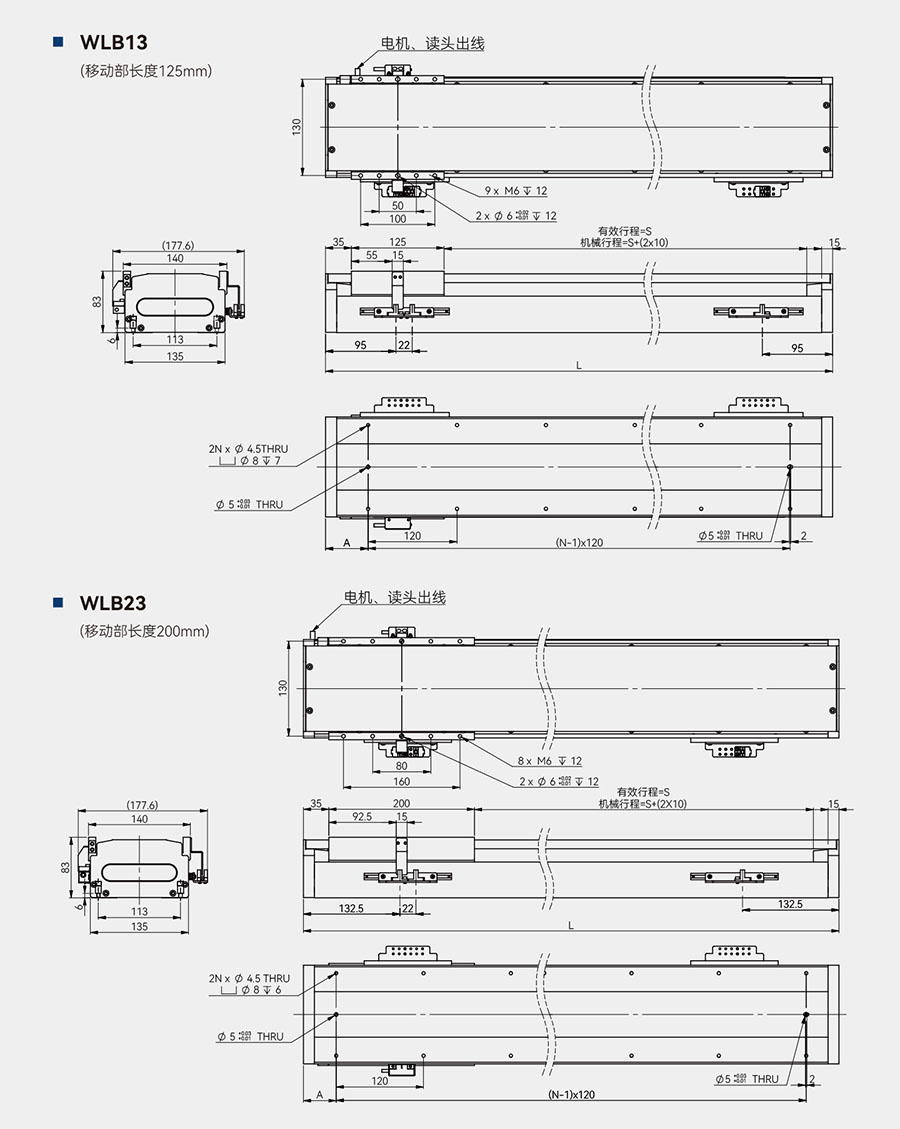

Product Dimensions:
