• Semi-enclosed structure

• Travel: 100-1500mm

• Maximum Speed: 2 m/s

• Continuous Thrust Range: 39.1-174.4N

Peak Thrust Range: 107-423.7N

• Track Specification: 12# - 2 pcs

Product Features

Wear-free and maintenance-free

Contactless transmission method adopted

Minimize mechanical friction losses to the maximum extent.

Low failure rate, no maintenance required

Safe and reliable operation, long lifespan

Endless Journey------

Achieve design for any journey

Add multiple stators of various lengths to meet customer requirements.

Strong adaptability to speed------

Achieve high and low-speed operation

High rigidity------

There is no transmission gap between the motor and the load in the straight module.

During load-bearing movement, it boasts high dynamic rigidity.

High dynamic response performance------

Highly accelerated large motor

Typically, 2-5G of acceleration can be achieved.

Small electric motors typically achieve acceleration exceeding 10G.

Product Specifications

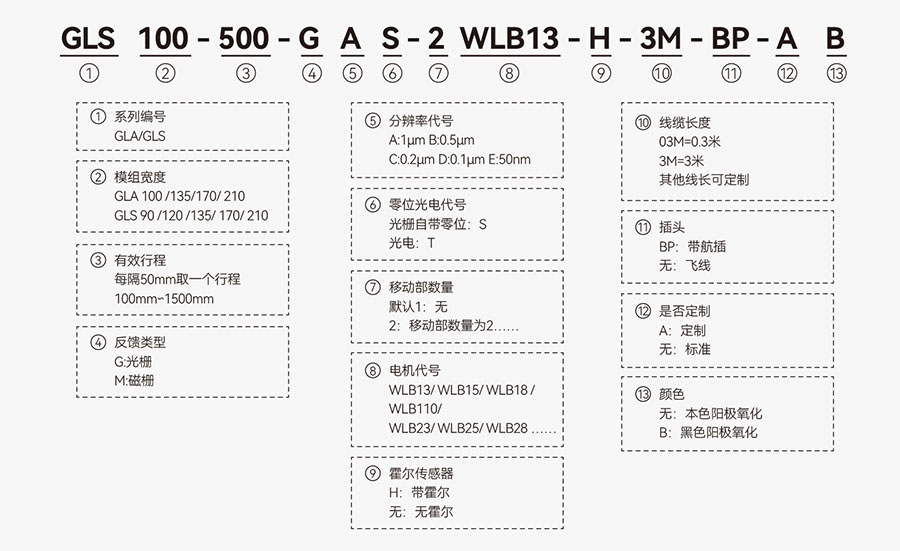

Naming Rules:

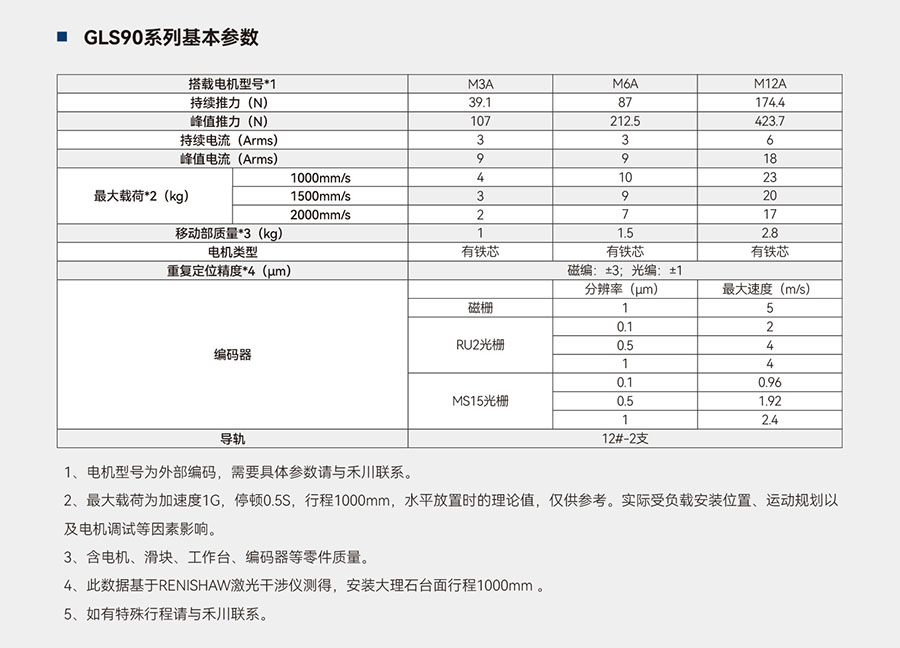

Technical Specifications:

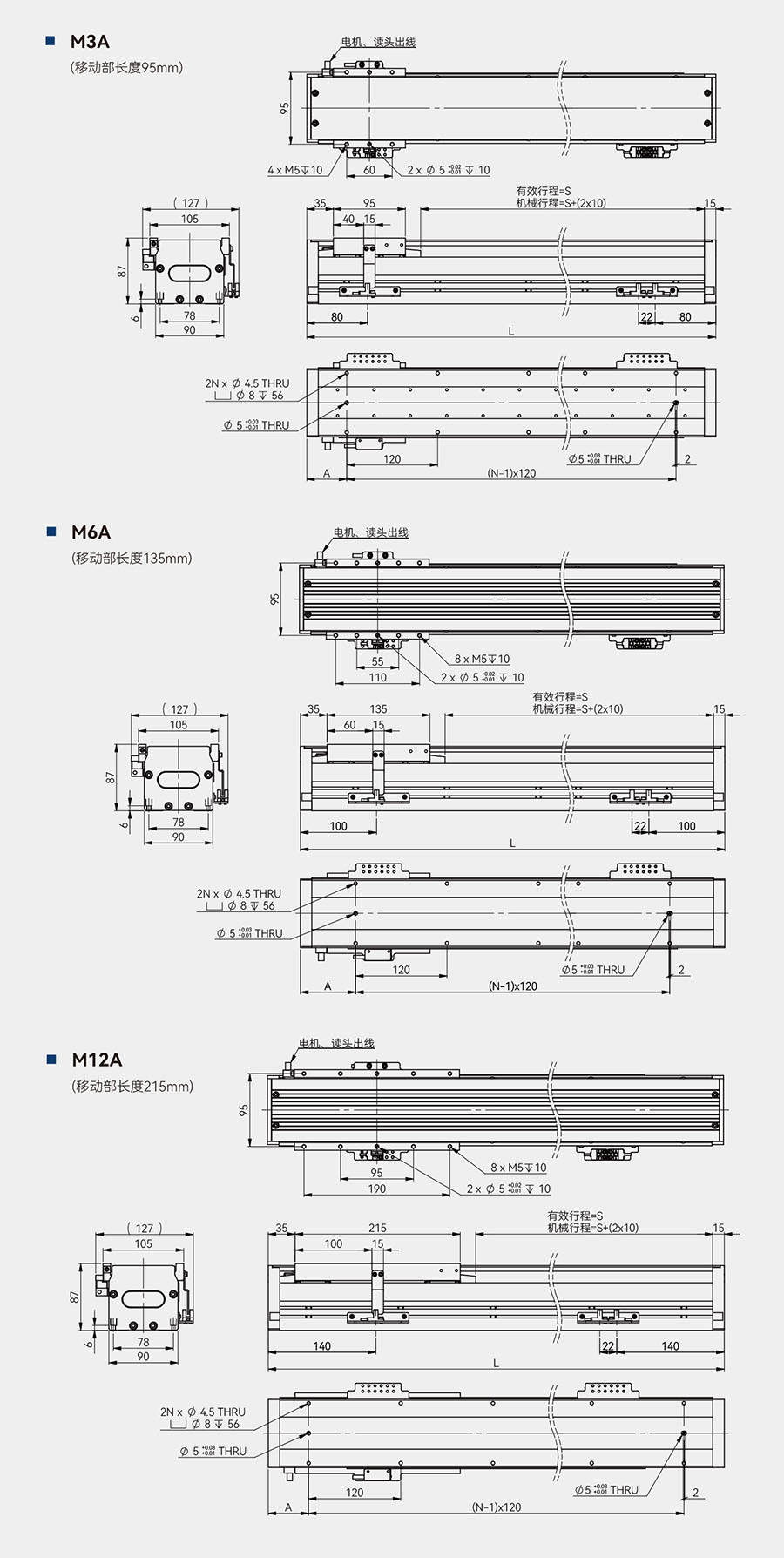

Product Dimensions:
