1. Overview of Application

The latest PH series dual-purpose drying/culturing chamber features high quality, reliability, and safety. This innovative dual-purpose drying/culturing chamber utilizes a fan for forced air convection, offering direct assistance to colleges and universities, research institutions, and production facilities, providing a reliable guarantee.

2. Product Features

Large LCD screen display, multiple data groups displayed on one screen, menu-style operation interface, easy to understand and operate.

The use of a fan with adjustable speed control enhances the uniformity of the workshop's temperature.

n Features an independently developed air duct circulation system for automatic exhaust of moisture inside the cabinet, eliminating the hassle of manual adjustment.

Automatic dry mode transition; shifts to dry mode above 70 degrees Celsius, or can be set to a transition temperature as per user preference.

The unit is equipped with a microcomputer temperature controller featuring over-temperature deviation protection and digital display, with a timer function for precise and reliable temperature control.

The inner pot is made of mirror-polished stainless steel, with shelf brackets that can be easily assembled and disassembled. The semi-circular corner design facilitates cleaning.

The exterior casing is made of high-quality cold-rolled steel plates and is electrostatically powder-coated.

Utilizing an independently designed conversion method that weakly controls strong currents, it avoids system shock during high current conversion, thereby enhancing product reliability.

Double-layer door structure with excellent thermal insulation; observing the interior without affecting the temperature inside.

An independent temperature alarm system that automatically shuts off upon exceeding the set temperature limit, ensuring safe operation of the experiment and preventing any accidents. (Optional)

n With RS485 interface for connecting to data loggers and computers, capable of recording the changes in temperature parameters. (Optional)

3. Optional Accessories

Intelligent Program Controller

Independent Temperature Limit Alarm System

Embedded Printer

RS485 Interface and Dedicated Software

Test Holes: 25mm/50mm

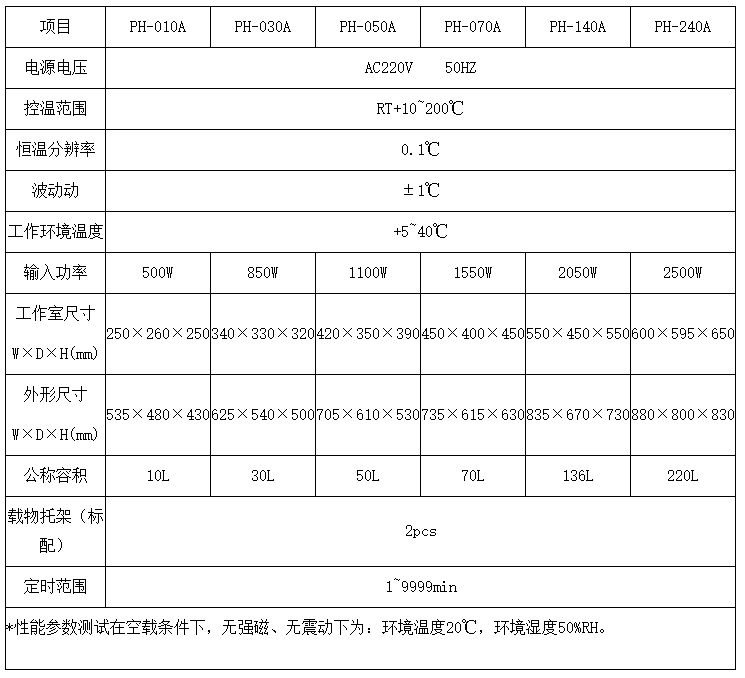

4. Technical Specifications
