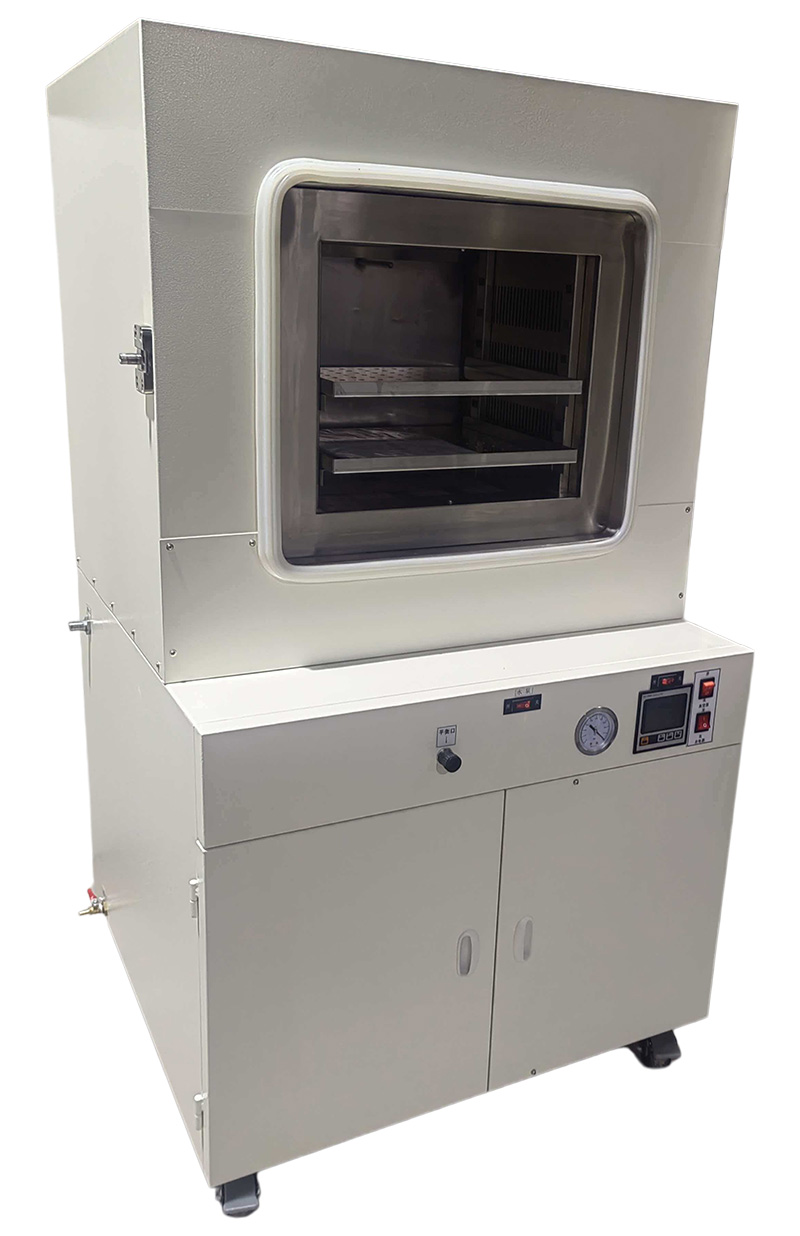

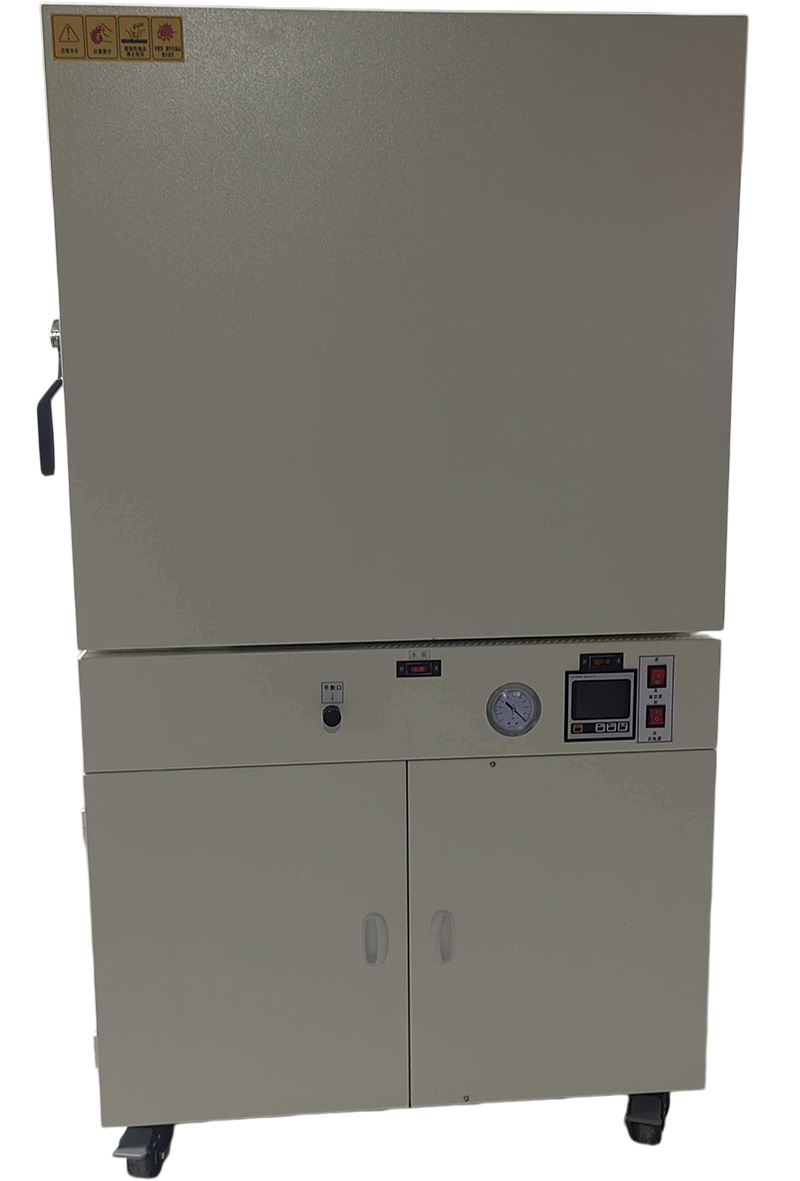

High-Temperature Vacuum Oven Product Features

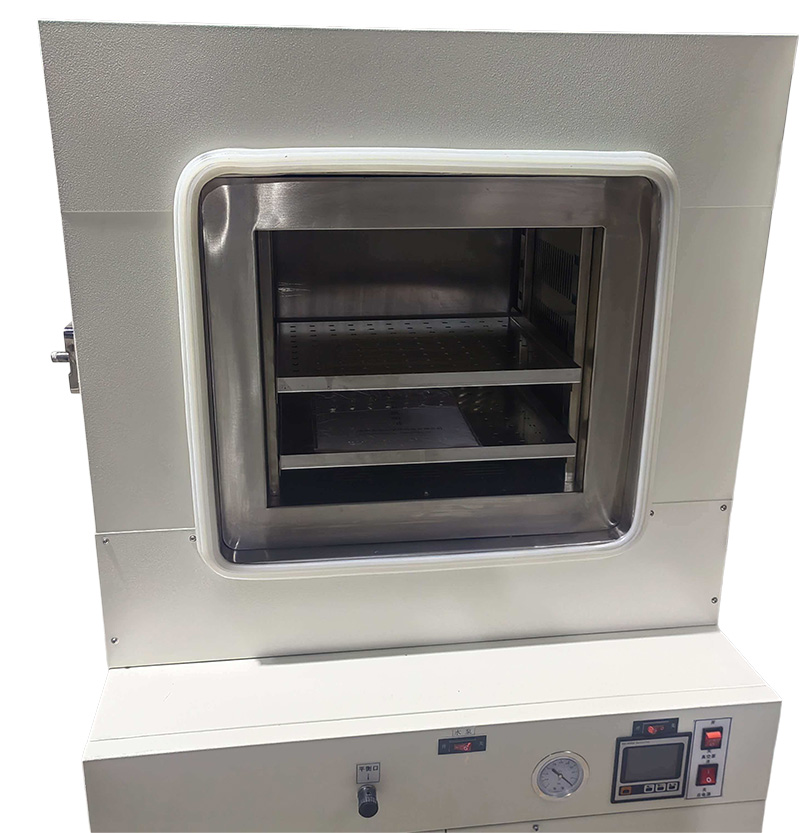

1. Inner Shell Structure: The inner shell features a streamlined curved design for easy cleaning.
2. Heating Tube: Features a SUS304 stainless steel seamless heating tube, Φ15mm, mounted on the outer walls of the inner tank for even heating. Heat can radiate into the interior, ensuring a uniform and stable temperature after stabilization.
3. Temperature Control System: The machine features a microcomputer single-chip design for temperature control, timing, PID automatic temperature adjustment, and over-temperature alarm.
4. Temperature Sensor: Type K Thermocouple Temperature Sensor.
5. Inner Shell: Made of 304 stainless steel with full circumference argon welding, cleaned with alkaline soda ash water after electroplating to effectively prevent dust generation, and reinforced with high-strength ribs to prevent vacuum leakage and deformation; semi-circular corner design for easier cleaning.
6. Exterior Case: Cold-rolled steel plate with electrostatic paint treatment, featuring rust and static electricity resistance, aesthetic and easy-to-clean design. The bottom of the case is equipped with lockable casters, lockable, and mobile.

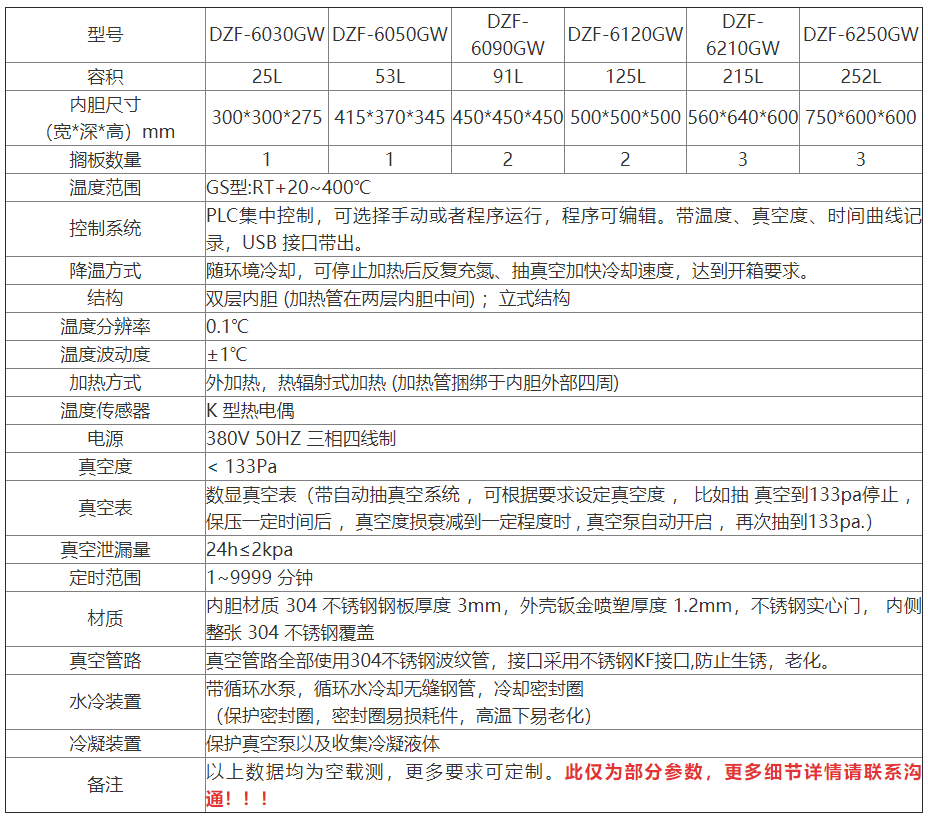

High-Temperature Vacuum Oven Product Parameters

High-Temperature Vacuum Oven Operating Environment

1. Environmental Temperature: 10~35℃; Relative Humidity: ≤90% R.H.; Atmospheric Pressure: 86~106 Kpa

2. No flammable or explosive materials in the vicinity, no severe vibration, no strong electromagnetic field interference, no high concentration of dust or corrosive substances. No direct sunlight or other direct heat radiation; leave a 1-meter space around the equipment for ventilation, operation, and maintenance.
