1. Overview of Application

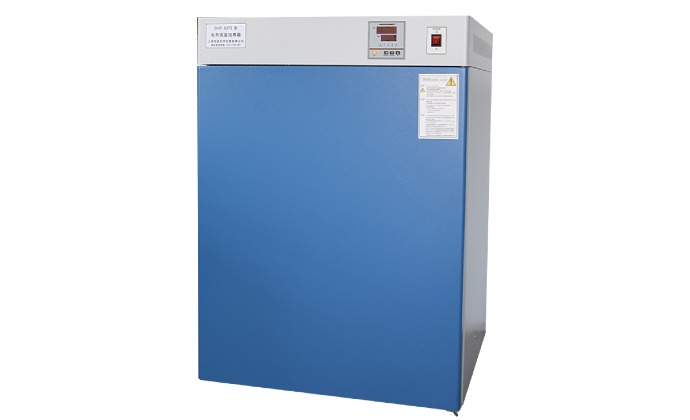

The temperature and humidity controlled cabinet features precise control systems, providing a variety of environmental simulation conditions essential for industrial research and biotechnology testing. Therefore, it is widely applicable to sterile tests, stability checks, as well as testing of raw material properties, product packaging, and product life of industrial products in the pharmaceutical, textile, and food processing industries.

2. Product Features

Humanized design

Large-screen LCD display, multi-group data displayed on a single screen, menu-style operation interface, easy to understand and operate.

Dedicated to global environmental and health initiatives, we utilize non-fluorinated refrigerants such as 134a and 406a, ensuring high efficiency, energy-saving, and a healthier environment!

⊕ Mirrored stainless steel interior with rounded corners for easy cleaning, adjustable shelf spacing inside the cabinet.

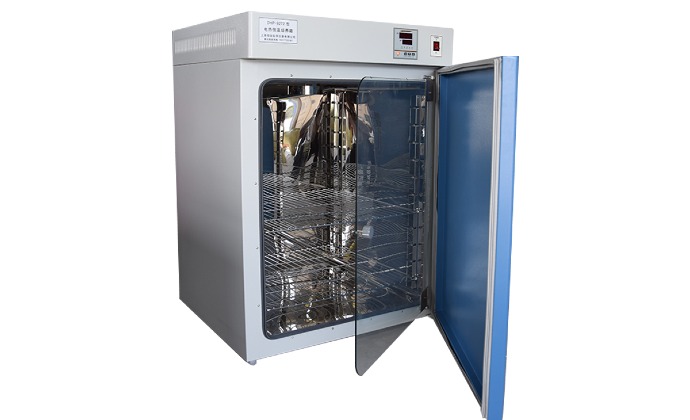

⊕ Features a double-door structure for excellent thermal insulation, allowing observation of the interior without affecting the internal temperature.

The left side of the case features a test hole with a diameter of 25mm/50mm, convenient for experimental operations and temperature measurement. (Optional)

Optional viewing window in box door (optional, excluding SC)

Quality Assurance

⊕ Utilizes internationally renowned compressors, with our independently developed compressor cooling system, effectively extending the lifespan of the compressors.

⊕ Equipped with JAKEL tube flow circulating fans and a uniquely designed duct structure, it creates an excellent air circulation system, effectively ensuring uniformity of the internal temperature.

⊕ Utilizing internationally renowned humidity sensors, our independently designed built-in water tank heating tube humidification system effectively ensures humidity accuracy.

PID control method, precise temperature and humidity control with minimal fluctuations, menu-style operation page, easy to understand and operate.

The program consists of 99 cycles, each divided into 30 segments, with a repeating step of 99 hours and 99 minutes per segment, nearly accommodating all complex experimental processes.

Independent temperature alarm system (optional)

⊕ Exceeding the temperature limit will automatically interrupt operation and trigger an audible and visual alarm to alert the operator. Ensures safe experimental operation without any accidents.

◆Easy data processing (optional)

⊕ Equipped with USB or RS485 interface, capable of connecting to printers or computers, and can record the changes in temperature parameters. (Optional)

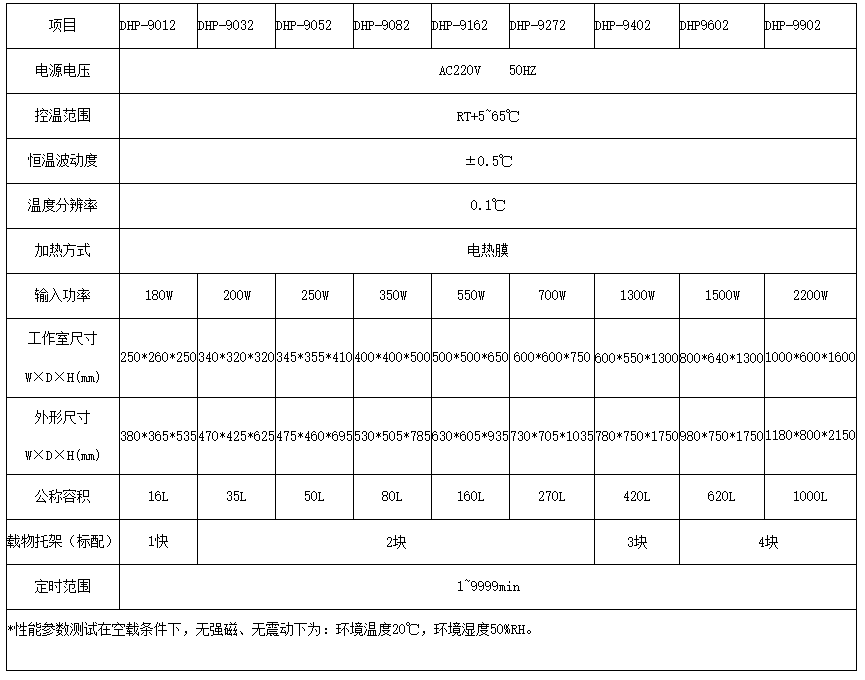

4. Technical Specifications
