1. Overview of Application

Widely used in microorganism tissue culture, seed germination, seedling trials, plant cultivation, and the breeding of insects and small animals. Accurately simulates various environmental and climatic conditions.

2. Product Features

Humanized design

Large LCD screen display, multiple data groups displayed on one screen, menu-style operation interface, easy to understand and operate.

Committed to global environmental and health initiatives, utilizing 134a and 406a non-fluorine refrigerants for high efficiency, energy-saving, and a healthier environment!

⊕ Mirror-polished stainless steel inner lining, rounded corner design for easy cleaning, adjustable shelf spacing inside the cabinet.

⊕ Features a double-door structure for excellent thermal insulation; observing the contents inside does not affect the internal temperature.

Quality Assurance

⊕ Utilizes internationally branded compressors, with a self-developed compressor cooling system that effectively extends the lifespan of the compressors.

♦ Equipped with JAKEL ducted fan for air flow circulation, combined with a uniquely designed duct structure, it produces an excellent air circulation system, effectively ensuring uniformity of temperature inside the box.

Triple-sided lighting design, T4 incubator-specific lamp tubes, effectively ensuring the light intensity inside the box, no blind spots, no omissions.

⊕ Microcomputer controls temperature and light intensity, with the temperature adjusting according to the presence or absence of light, implementing different settings for day and night.

⊕ PID control method, precise with minimal fluctuations, menu-style operation page, easy to understand and operate.

The program consists of 99 cycles, each divided into 30 segments, with a repetitive step of 99 hours and 99 minutes per segment, nearly accommodating all complex experimental processes.

Continuous Operation Technology

Continuous operation for over 360 hours non-stop

⊕ Two compressors automatically alternate, ensuring continuous operation of plant cultivation without failure for extended periods. (Optional)

Independent temperature alarm system (optional)

⊕Automatically interrupts operation and sounds an alarm with visual cues if the temperature exceeds the limit, ensuring safe experimental operation without accidents.

◆Convenient Data Processing (Optional)

⊕ Equipped with USB or RS485 interface, capable of connecting to printers or computers, and able to record changes in temperature parameters. (Optional)

3. Optional Accessories

Independent temperature controller

Carbon dioxide inlet

Embedded printer

RS-485 interface and dedicated software

Test Holes: 25mm/50mm

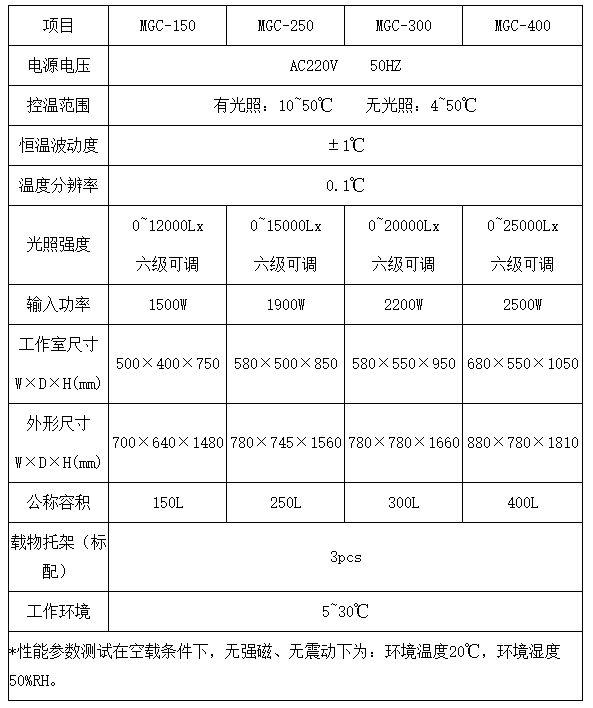

4. Technical Specifications
