1. Overview of Application


The latest generation of climate-controlled chambers boasts precise temperature and humidity control systems. They provide the necessary environmental simulation conditions for industrial research and biotechnology testing, making them widely applicable to sterile tests, stability checks, and tests of raw material properties, product packaging, and product lifespan in industries such as pharmaceuticals, textiles, and food processing.


2. Product Features


Human-centric design


Large-screen LCD display, multiple data groups displayed on one screen, menu-style operation interface, easy to understand and operate.


Actively respond to global environmental and health initiatives, utilizing eco-friendly refrigerants (134a, 406a), for high efficiency, low energy consumption, and a healthier environment!


The inner pot is made of mirror-polished stainless steel, featuring a rounded corner design for easy cleaning, and adjustable shelf spacing inside the pot.


* Features a double-door structure (with a glass-sealed door between the workshop and the box door), providing excellent thermal insulation; observing the inside of the box does not affect the internal temperature.


The bottom of the box features swivel casters with an independent fixed base design, allowing for free directional adjustment and lockable for easy movement.


* The left side of the box features a test hole with a diameter of 25mm/50mm, facilitating experimental operations and temperature measurement. (Optional)


⊕ Optional observation window in box door


Quality Assurance


Utilizes internationally renowned compressors, with our independently developed compressor cooling system, effectively extending the lifespan of the compressors.


Utilizing imported brand centrifugal fans, paired with a uniquely designed duct structure, we create an excellent air circulation system, effectively ensuring uniform temperature inside the container.


* Utilizes internationally renowned brand humidity sensors, with an independently designed built-in water tank electric heating tube humidification system, effectively ensuring humidity accuracy.


Microcomputer PID control method, precise temperature and humidity control with minimal fluctuations, menu-style operation interface, easy to understand and operate.


A program with 99 cycles, each divided into 30 segments, with a 99-hour, 99-minute cyclic step within each segment, almost meets all complex experimental processes.


Independent Temperature Limit Alarm System (Optional)


Automatically interrupts operation and sounds an alarm with visual signals if the temperature exceeds the limit, alerting the operator. Ensures safe operation and prevents any accidents.


Convenient Data Processing (Optional)


* Equipped with USB or RS485 interface, capable of connecting to printers or computers, and able to record changes in temperature parameters. (Optional)


3. Optional Accessories


Independent temperature controller


OBD-specific socket


Embedded printer


RS485 interface and dedicated software


Test Holes: 25mm/50mm


Inspection of the Box Door

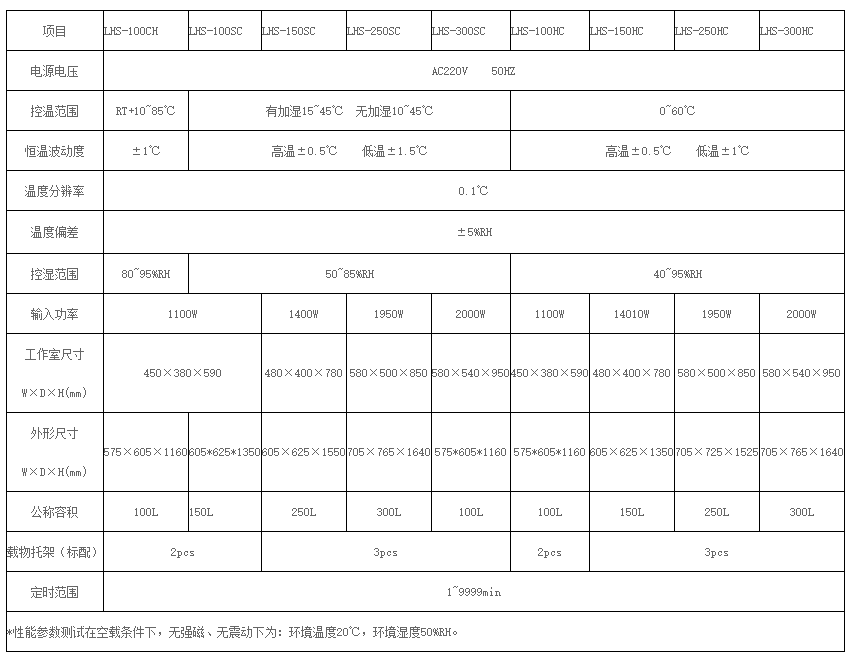

4. Technical Specifications
