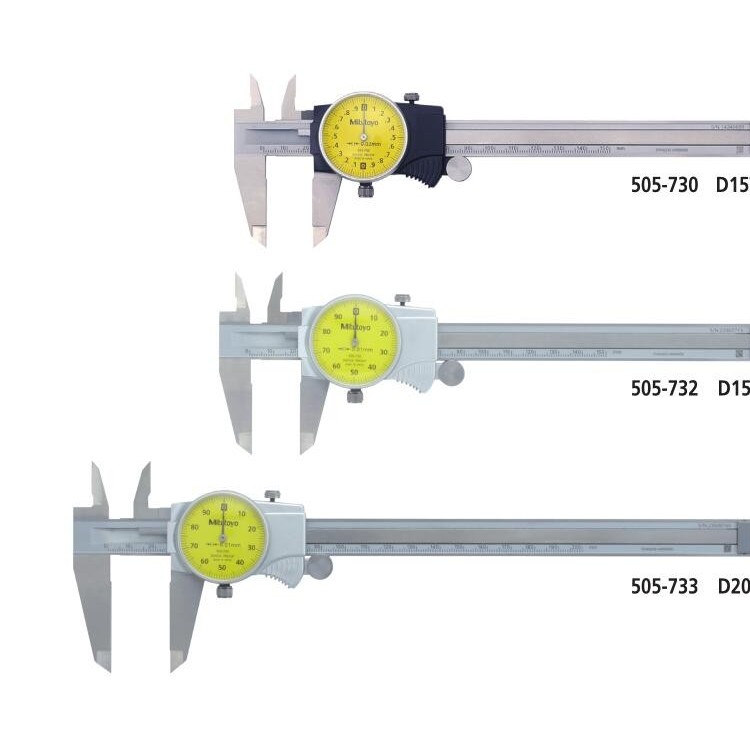

Mitutoyo Caliper Card 505-730
Negotiable
Mitutoyo Soken Small Hole ID Gage
Negotiable
Mitutoyo Sankyo Keyseat Micromete
Negotiable
Japan Magnescale Magnet Scale SL1
Negotiable
Japan Magnescale Displacement SensorDK25NR5
Measurement Range: 10mm, 25mm, 50mm, 100mm, 155mm, 205mm
Resolution: 0.5 μm
Accuracy: 2μm p-p to 6μm p-p (varies by model)
Dustproof, drip-proof, and oil-resistant structure. Good environmental resistance (Type P)
Strong Measuring Force (DK10/25/50/100P models): 4.9 ~ 9.3 N (varies by model)
Low measuring force (DK10/25/50/100N models): 0.3 ~ 2.7 N (varies by model)
The magnetic吸附式测头 can be attached to the moving platform for measurement (DK155 / 205).
Built-in origin
Output Signal: A/B phase (pulsed), Origin (differential line driver signal with output voltage difference)
| Key Specifications | |||||
|---|---|---|---|---|---|
※1 Resolution settings are required when connecting to the LT30 series, MG series, and LY70 series. Please refer to the respective user manuals for details. Changes to the recorded content will not be announced separately. | |||||
| Model | DK25NR5 | DK25PR5 | DK25NLR5 | DK25PLR5 | |
| Output | Output A/B/Z phase differential line driver signals (compliant with EIA-422) | ||||
| Resolution ※1 | 0.5μm | ||||
| Measurement Range | 25mm | ||||
| Accuracy (at 20°C) | 2μm p-p | ||||
| Measuring Force (at 20°C) | Upward | 0.4 ±0.3 N | 4.9N or lower | 0.4 ±0.3 N | 4.9N or lower |
| Lateral | 0.7 ±0.35 N | 4.9N or less | 0.7 ±0.35 N | 4.9N or lower | |
| Downward | 1 ±0.4 N | 4.9N or less | 1 ±0.4 N | 4.9N or less | |
| Origin | 1 position (at 1mm ±0.5mm from the main shaft) | ||||
| Responsive speed | 250m/min | ||||
| Vibration-resistant | 150m/s2 (10 ～ 2000Hz) | ||||
| Impact-resistant | 1500m/s2 (11ms) | ||||
| Ingress Protection (IP) Rating | IP50 | IP64 | IP50 | IP64 | |
| Operating Temperature Range | 0 ～ 50°C | ||||
| Storage Temperature Range | −20 ～ 60°C | ||||
| Power Voltage | DC +5V ±5% | ||||
| Power Consumption | 1,000 or less | ||||
| Cable Length Output | Approximately 2.5 meters | ||||
| Central control pipe diameter | φ20 0‒0.013 mm | ||||
| Quality※2 | Approximately 300g | ||||
| Sensor Head | Super-hard spherical DZ-122 (mounted with M2.5 screws) | ||||
| Accessories | Instruction Manual, +PM4 x 5 screws (2 pcs) | ||||
