Japanese Magnescale Displacement Sensor DT32NV_SupplyPro Co., Ltd.

Japanese Magnescale Displacement Sensor DT32NV

价格Negotiable

最小起订0 piece库存0 piece

Business Card

Your company's名称Suzhou Quantum Instrument Co., Ltd.
联系人李成国（先生）
Your company'sPhone13862144080
Mobile号码13862144080
Company Address199 Ta Yun Road, Yuxi Town, Wuzhong District, Suzhou, Jiangsu Province

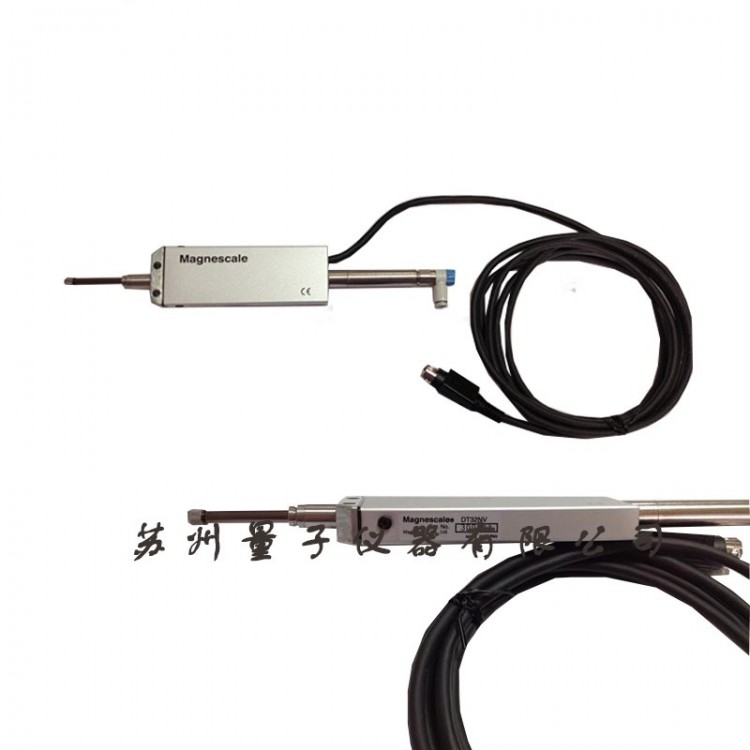

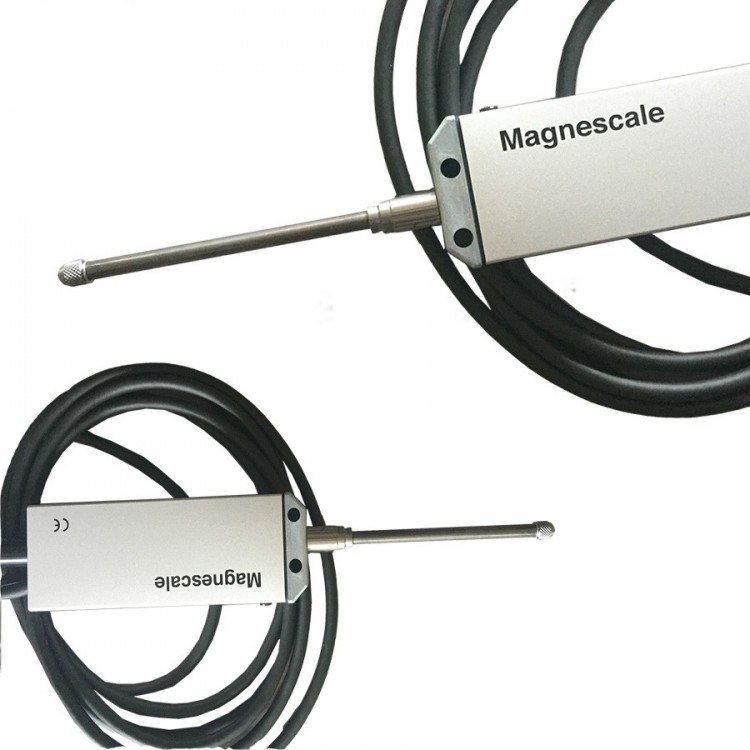

Japan Magnescale Displacement Sensor DT32NV

Good environmental resistance: Equivalent to IP64 (Type P)
Measurement Range: 12mm, 32mm
Resolution: 1µm, 5µm
Accuracy: 6µm p-p, 10µm p-p (varies due to measurement length and resolution)
Supports φ8mm central control pipe installation and side installation via M4 screws
Oil-resistant and excellent dustproof performance
Available with pneumatic actuation for the main shaft, an air-cylinder type extrusion (available only for the 32mm model. The 12mm model requires an optional product).

Key Specifications
1 Quality is the value excluding the cable part 2 The measurement force is the value when the input pressure is 1.96×10^5 Pa and the speed controller connector is disconnected. *3 The measurement force is the value when the input pressure is 2.35×10^5 Pa and the speed controller connector is disconnected. Changes to the content will be made without prior notice.
Model		DT32N	DT32NV	DT32P	DT32PV
Spindle Drive Method		Spring Compression Type	Pneumatic extrusion mold	Spring Compression Type	Pneumatic extrusion
Measurement Range		32mm
Resolution		5μm
Measurement Force (at 20℃)	Upward	1.1±0.8N		2.9N or less	9N or lower
	Horizontal	1.3±0.8N		2.9N or less	9N or lower
	Downward	1.5±0.8N		2.9N or less	9N or lower
Accuracy (at 20℃)		10µm p-p
Operating Temperature Range		0 ～ 50℃
Temperature Range for Storage		-10 ～ 60℃
Output Cable Length		2m
Control Valve Bore		φ8 0‒0.015mm
Measurement Head		Steel ball φ3mm (M2.5p x 0.45 tensioned screw)
Quality *1		Approx. 120g	Approximately 140g	Approximately 120g	Approximately 140g
Ingress Protection (IP) rating		―	―	Equivalent to IP64	Equivalent to IP64
