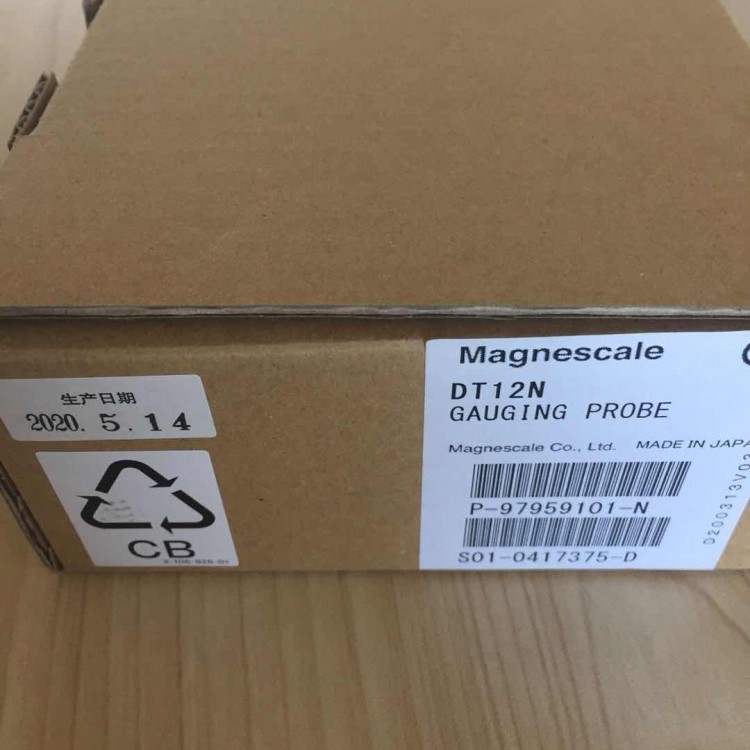

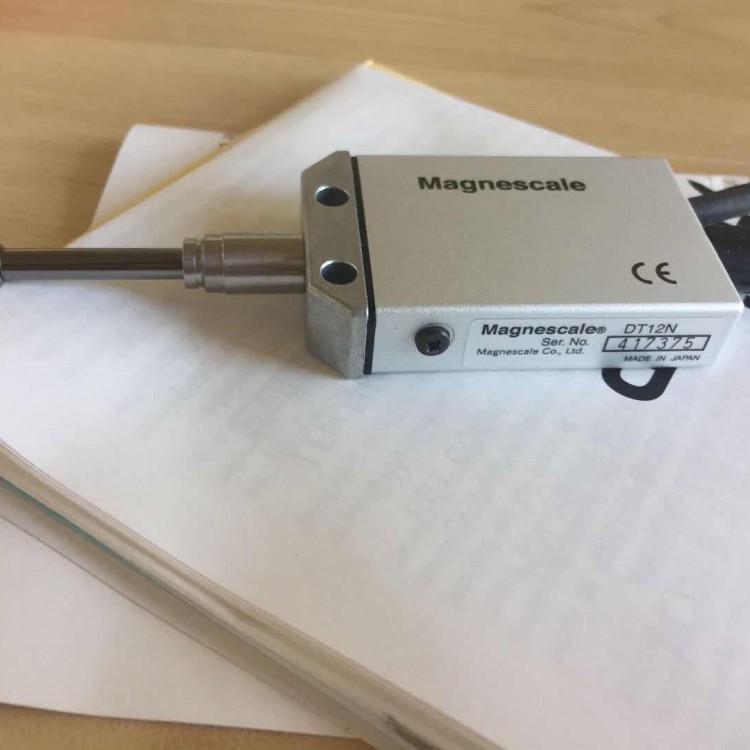

Japanese Magnescale Displacement Sensor DT12N
Good environmental resistance: Equivalent to IP64 (Type P)
Measurement Range: 12mm, 32mm
Resolution: 1µm, 5µm
Accuracy: 6µm p-p, 10µm p-p (varies due to measurement length and resolution)
Supports φ8mm central control pipe installation and side installation via M4 screws
Oil-resistant and dust-proof performance
We also offer pneumatic extrusion types for driving the main shaft (available only for the 32mm model. The 12mm model requires an optional product).
| Main Specifications | |||
|---|---|---|---|
*1 Quality is the value excluding the cable section Changes to the content will be made without prior notice. | |||
| Model | DT12N | DT12P | |
| Spindle Drive Method | Spring Extrusion Type (can be pneumatically extruded using Attachment DZ176) | ||
| Measurement Range | 12mm | ||
| Resolution | 5μm | ||
| Measurement Force (at 20℃) | Upward | 0.7±0.5N | 1.7N or less |
| Horizontal | 0.8±0.5N | 1.7N or less | |
| Downward | 0.9±0.5N | 7N or lower | |
| Accuracy (at 20℃) | 10µm p-p | ||
| Operating Temperature Range | 0 ～ 50℃ | ||
| Storage Temperature Range | -10 ～ 60℃ | ||
| Output Cable Length | 2m | ||
| Central control diameter | φ8 0‒0.015mm | ||
| Sensor Head | Steel ball φ3mm (M2.5p×0.45 tensioned screw) | ||
| Quality *1 | Approximately 75g | Approximately 80g | |
| IP rating | ― | Comparable to IP64 | |
