Product Overview

An open hot and cold stage designed for use with inverted microscopes equipped with high magnification objectives.

Utilizing the thermoelectric effect of Peltier elements, paired with a circulating liquid, cooling down to 0°C can be achieved without the need for refrigerants like liquid nitrogen.

Supports integration with various microscopes (Leica, Olympus, Nikon, Zeiss, etc.), spectrometers (infrared, Raman, fluorescence, etc.), and other optical instruments. Temperature control is available within the range of 0℃ to 100℃, enabling in-situ optical observation and related testing of samples under open conditions with reflection/transmission.

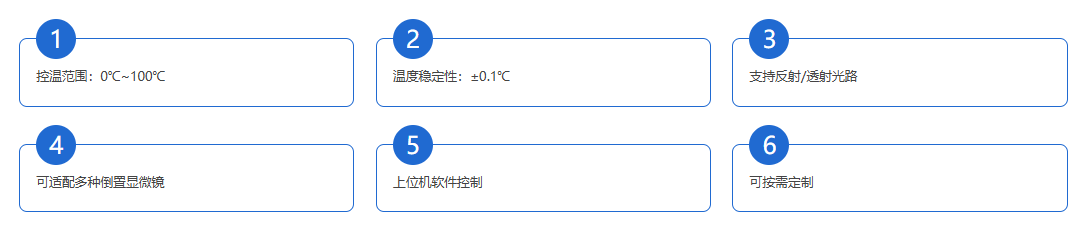

Core Advantages

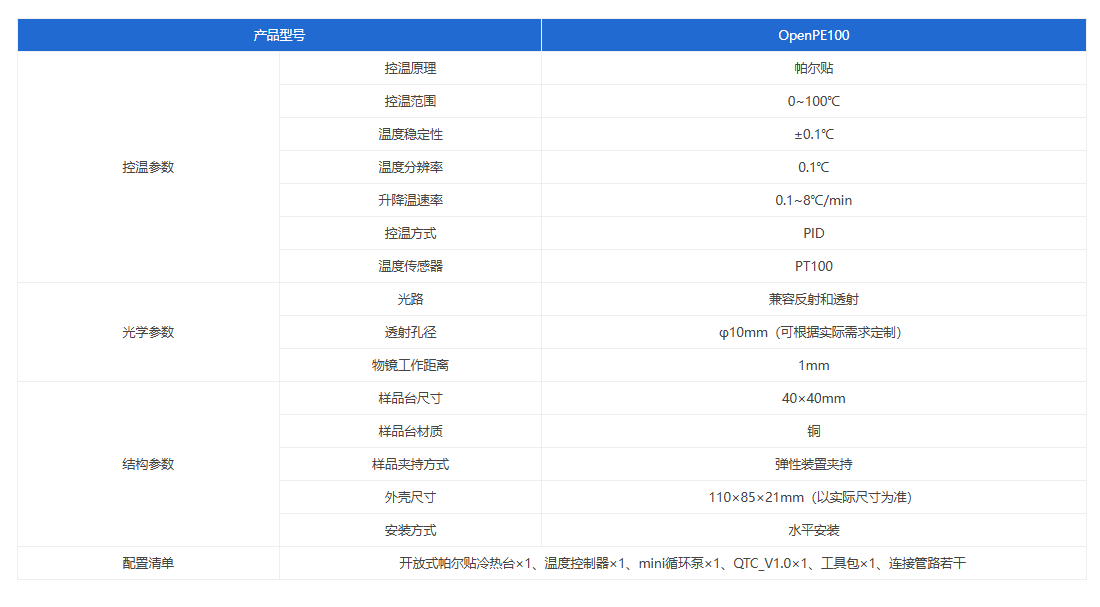

Technical Specifications

Application Cases

Below are some images showcasing physical product samples.

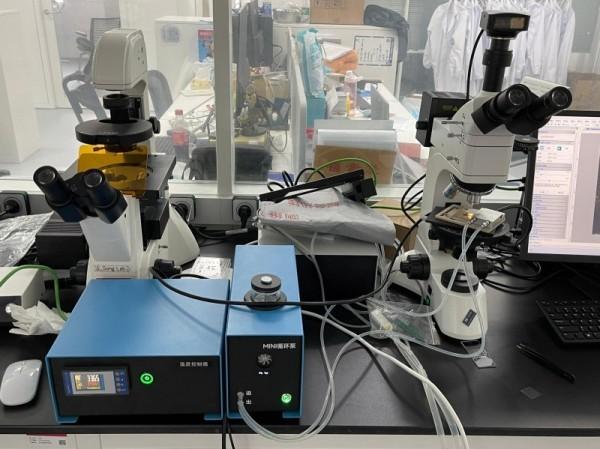

Matched with Leica DM2700M Inverted Metallographic Microscope

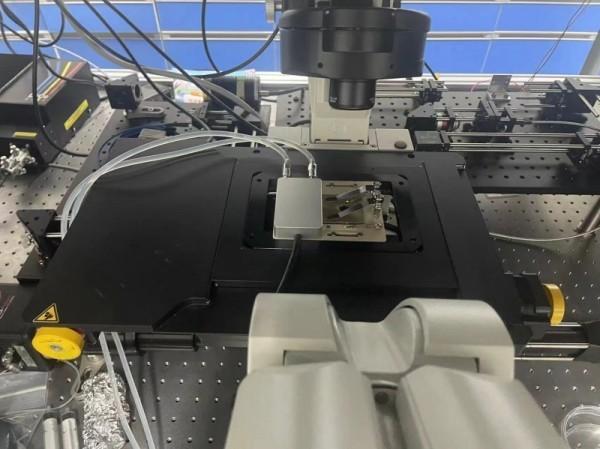

Complement with Leica DMI8 Inverted Microscope

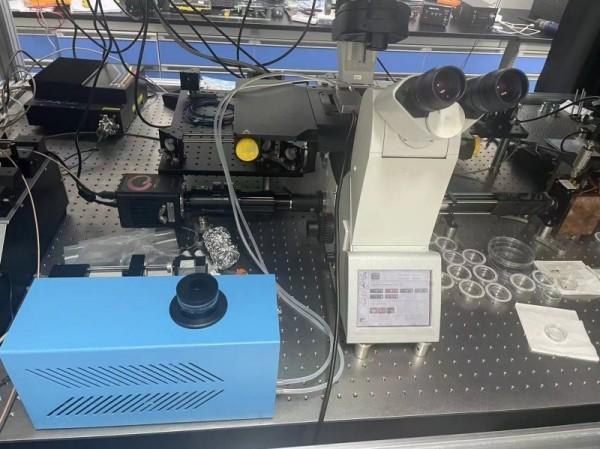

Optical Microscope Kit

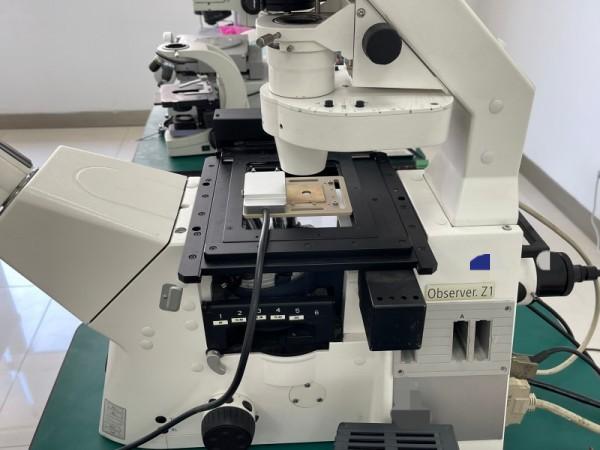

Zygo Axio Observer Z1 Inverted Fluorescence Microscope Kit

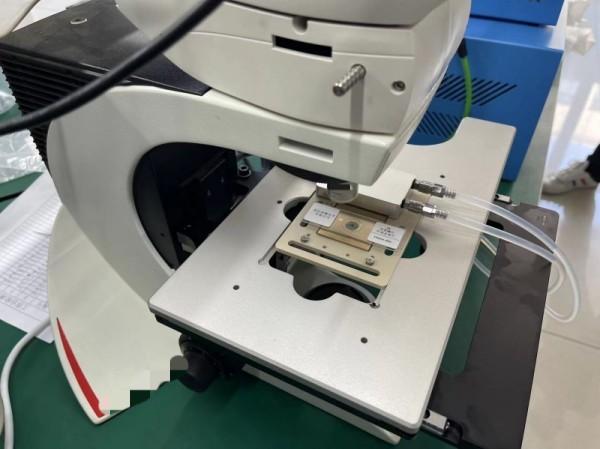

Combined with the Leica DM1750M Inverted Metallographic Microscope
