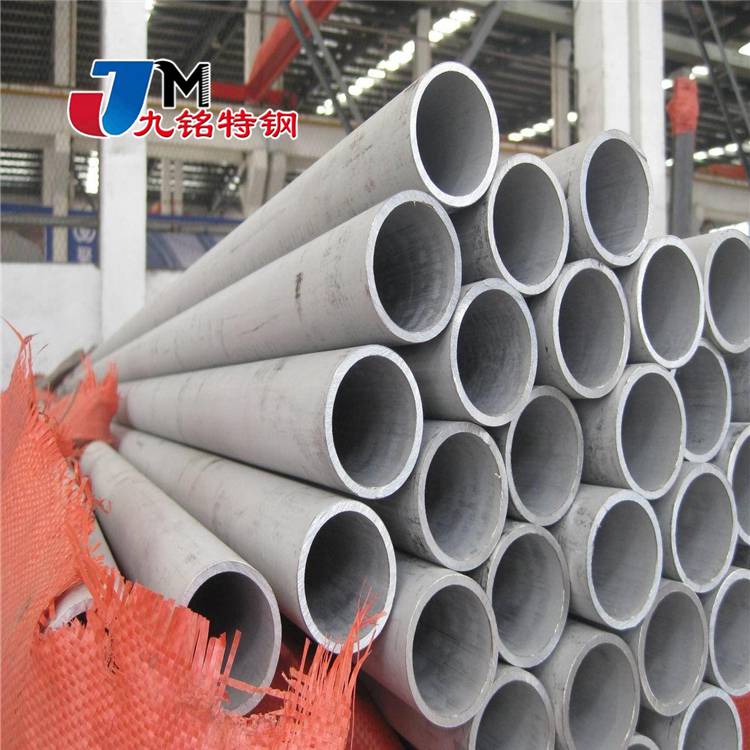

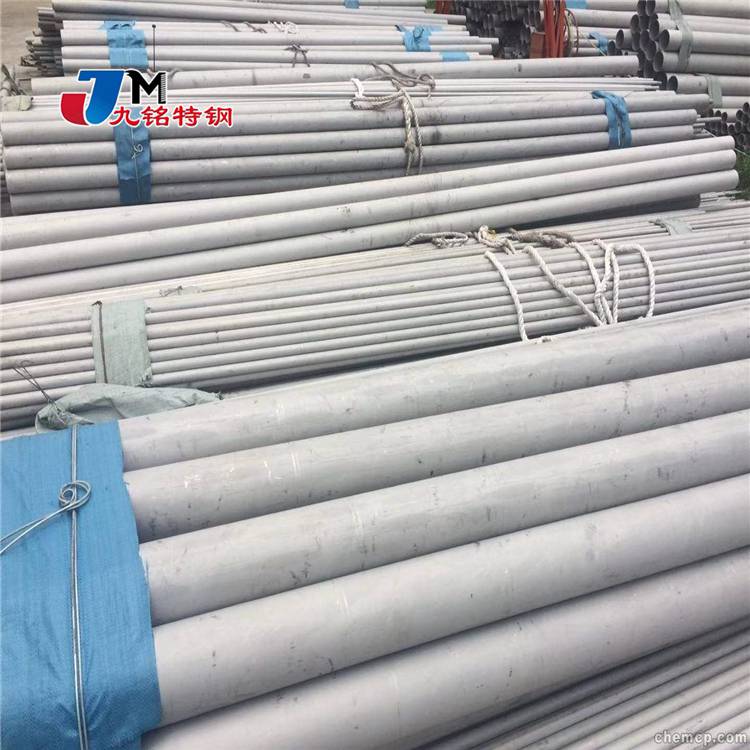

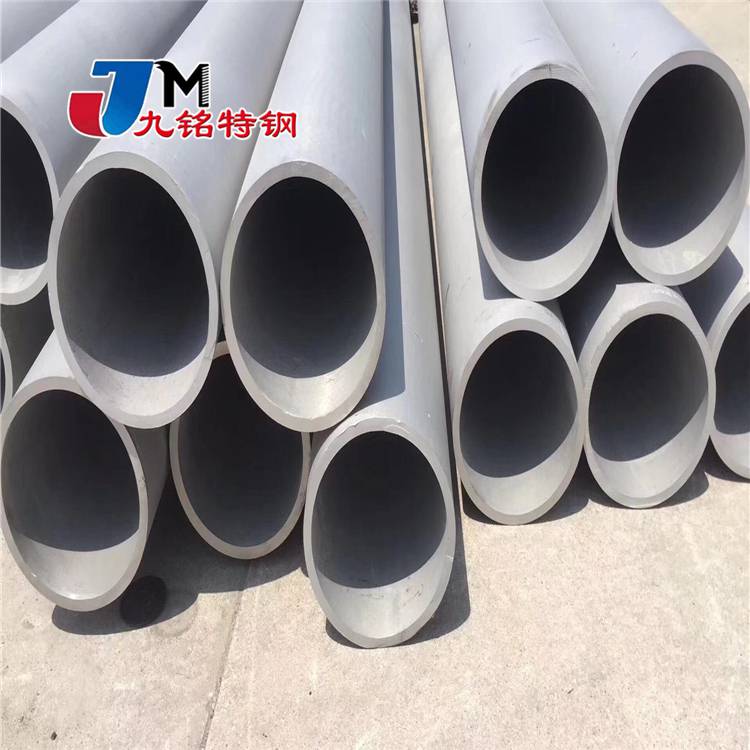

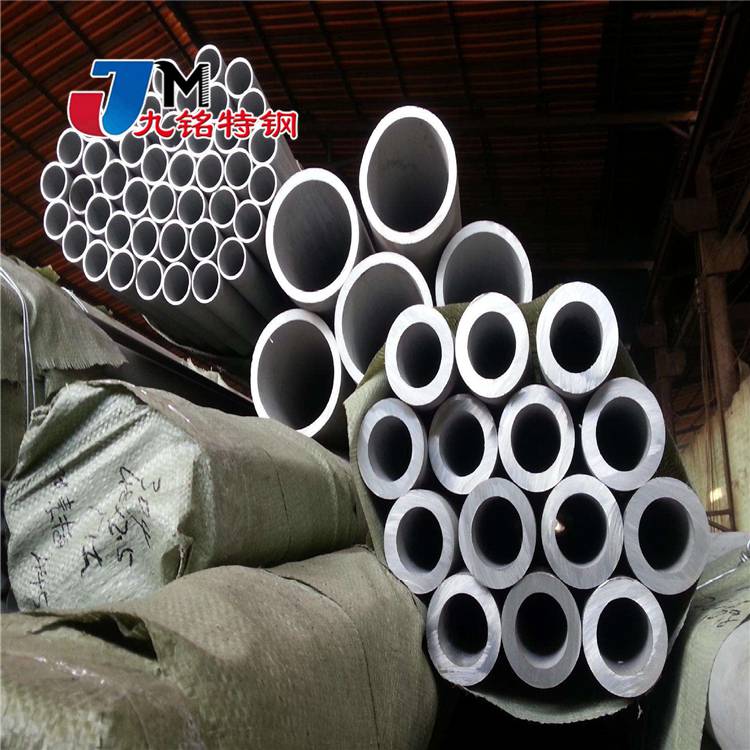

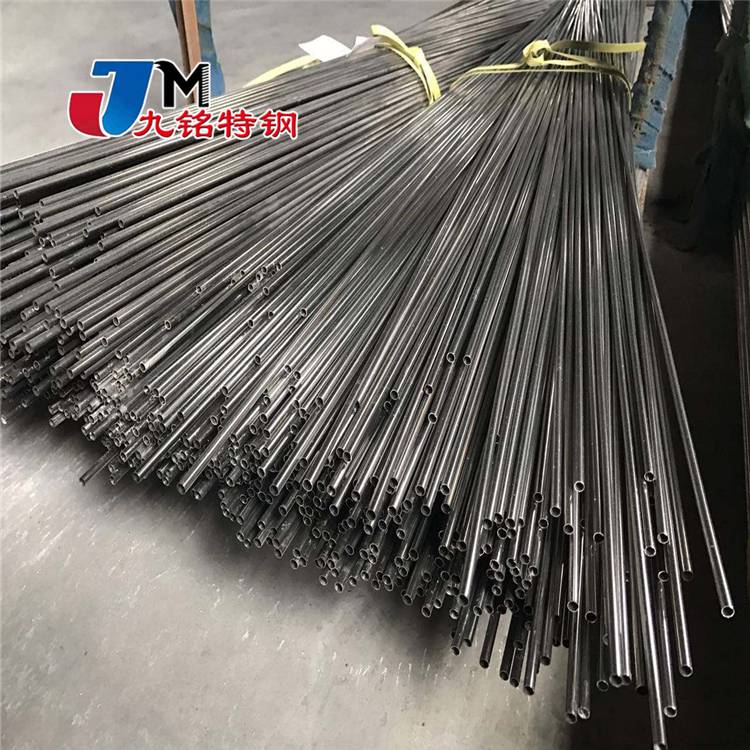

TP321 Stainless Steel Pipe, 904L/304 Stainless Steel Pipe, Jiuming, Large Diameter Thick-Wall Pipe 904L, In Stock, Cut-to-Length Available
904L super-austenitic stainless steel is a low-carbon, high-nickel, molybdenum austenitic corrosion-resistant steel, exclusively introduced from France's H·S Company. It boasts excellent activation-passivation transition capabilities, exceptional corrosion resistance, and good resistance to corrosion in non-oxidizing environments such as acetic, formic, and methanol. It also exhibits excellent resistance to pitting corrosion in neutral chloride-containing media. Additionally, it has good resistance to crevice corrosion and stress corrosion. Suitable for concentrations below 70°C, it maintains excellent corrosion resistance in any concentration and temperature of acetic acid and its mixtures under atmospheric pressure.
20Cr-24Ni-4.3Mo-1.5Cu
Product Number and Standard:UNS N08904, DIN 1.4539, ASTM A240 (the new standard classifies it as stainless steel, while the previous standard ASME SB-625 categorized it as nickel-based alloy), SUS890L.
904L Chemical Properties:
Alloy | % | Nickel | Chrome | Molybdenum | Copper | Iron | Carbon | Manganese | Silicon | Phosphorus | Sulfur |
904L | Please provide the Chinese content to be translated. | 23 | 19 | 4 | 1 | Surplus | |||||
Large | 28 | 23 | 5 | 2 | 0.02 | 2 | 1 | 0.045 | 0.035 |
904L Mechanical Properties:
Density | 8.0 g/cm3 |
Melting point | 1300-1390 ℃ |
The minimum mechanical properties of the 904L alloy at room temperature:
Alloy Condition | Tensile strength Rm N/mm2 | Yield Strength RP0.2N/mm2 | Elongation A5 % |
904L | 490 | 216 | 35 |
Application Scope
Petroleum and petrochemical equipment, such as reactors in petrochemical equipment.
Storage and transportation equipment such as heat exchangers.
Flue gas desulfurization equipment for power plants, main components include: the tower body of the absorption tower, flue ducts, damper plates, internal parts, and spray system, etc.
Washers and fans in the organic treatment system.
Sea water treatment units, sea water heat exchangers, papermaking industry equipment, nitration equipment, manufacturing and other chemical industry equipment, pressure vessels, food equipment.
Centrifuges, reactors, etc.
Vegetable Food: soy sauce cans, cooking wine, salt jars, equipment, and supplies.
904L is a steel grade suitable for dealing with moderately aggressive corrosive media.
