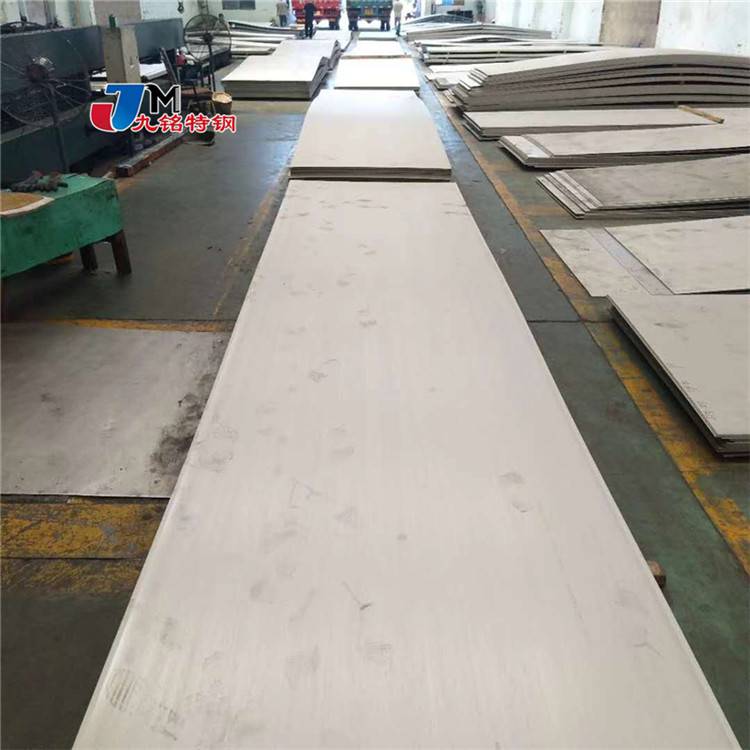

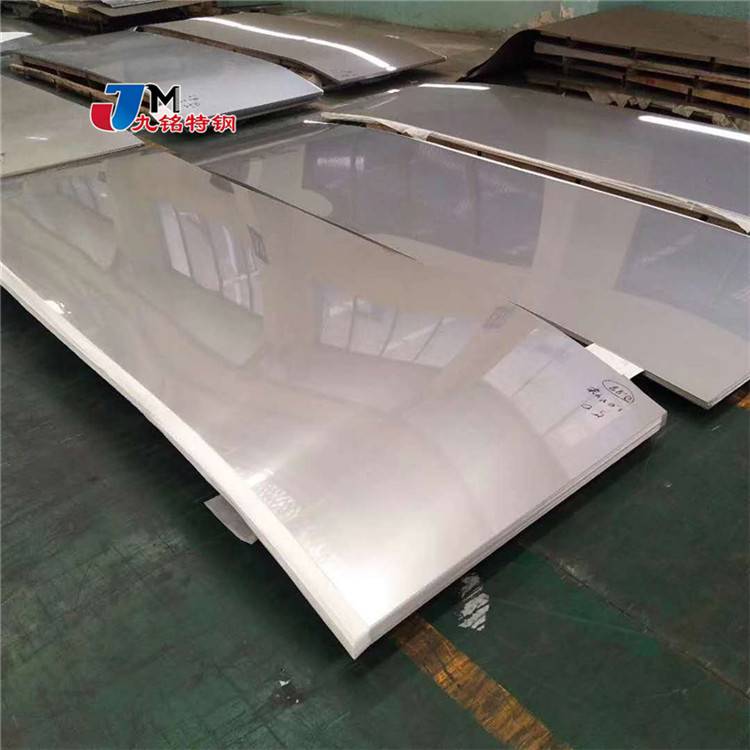

Jiuming Special Steel Inconel 718 Nickel-Based Alloy Plates Corrosion-Resistant Inconel 718 Sheets, Full Specifications
Inconel625,Inconel600,Inconel601,Incoloy825,Incoloy800
The 601 alloy boasts an important property of being oxidation-resistant up to 1180°C. Even under extreme conditions, such as during heating and cooling cycles, 601 can form a dense oxide film, achieving high resistance to spalling. It also exhibits excellent resistance to carburization. Due to its high content of chromium and aluminum, 601 maintains excellent oxidation resistance in high-temperature sulfur-rich atmospheres.
Incoloy and Inconel are two distinct material series, both belonging to the nickel-chromium-iron alloy category. Incoloy is a heat-resistant nickel-chromium-iron alloy, while Inconel is a heat-resistant and corrosion-resistant nickel-chromium-iron alloy. Both are products of the American Superalloys Company.
Inconel 601 is suitable for various concentrations at low temperatures; it exhibits excellent corrosion resistance in solutions with 50% to 70% caustic (such as NaOH) without causing stress corrosion cracking. Inconel is applicable to various solutions and types containing Cl—, as well as many mediums with a concentration of less than 70% caustic.
Incoloy is a nickel-chromium-iron alloy designed for resistance to oxidation and carburization at elevated temperatures. There are many types of Incoloy alloys: common ones include Incoloy 800, Incoloy 800H,
Incoloy 800HT, Incoloy 825, Incoloy 840, Incoloy 901, Incoloy 925, Incoloy 20, Incoloy 330, Incoloy 25-6Mo, etc.
Inconel 601 is a nickel, iron, and cobalt-based alloy developed for applications requiring high mechanical and chemical properties at elevated temperatures. Common variants include Inconel 718, a precipitation-hardened nickel-chromium alloy; Inconel 600, with its high nickel content, boasts strong resistance to chloride stress corrosion cracking, maintains its high corrosion resistance in the reducing state, and also exhibits excellent corrosion resistance in solution; Inconel X-750, a nickel-based superalloy primarily strengthened by aging with γ, Ti, and Nb phases; and others.
Production Standards
UNS N06601, Werkstoff 2.4851, EN 2.4851
ASTM: B 167, B 168
ASME: SB-167, ASME SB-168
Chemical Composition, %
Ni Cr Al C Mn Cu Si S Fe
MIN 58.00 21.00 1.00 -- -- -- -- -- --
MAX 63.00 25.00 1.70 0.10 1.00 1.00 0.50 0.015 Balance
Inconel 601's corrosion resistance: A key feature of the 601 alloy is its ability to maintain oxidation resistance at temperatures up to 1180°C. Even under severe conditions, such as during heating and cooling cycles, 601 can form a dense oxide layer, providing excellent anti-scab resistance. It also boasts good carbide resistance. Due to its high chromium and aluminum content, 601 exhibits excellent oxidation resistance in high-temperature sulfur-rich atmospheres.
1. Pallets, bins, and fixtures for heat treatment factories. 2. Steel wire strand annealing and radiation tubes, high-speed gas burners, wire mesh belts in industrial furnaces. 3. Isolation tanks in ammonia reforming and catalytic support grids in nitric acid manufacturing. 4. Exhaust system components. 5. Combustion chamber for solid waste incineration furnaces. 6. Pipe supports and ash handling components. 7. Waste gas detoxification system components. 8. Oxygen reheater.
Inconel 601 features include: 1. Excellent oxidation resistance at high temperatures; 2. Good carburization resistance; 3. Effective oxidation resistance in sulfur-containing atmospheres; 4. Excellent mechanical properties at both room temperature and high temperatures; 5. Good resistance to stress corrosion cracking. Due to controlled carbon content and grain size, it boasts high creep-rupture strength, making it recommended for use above 500°C.
Metallographic structure:
Face-centered cubic crystal structure.
Corrosion Resistance: An important property of the alloy is its ability to resist oxidation at temperatures up to 1180°C. Even under severe conditions, such as during heating and cooling cycles, it can form a dense oxide layer, achieving high anti-scaling properties. It also exhibits excellent carburization resistance. Due to its high content of chromium and aluminum, it maintains excellent oxidation resistance in high-temperature sulfur-rich atmospheres.
Application Scope: 1. Trays, baskets, and fixtures for heat treatment factories. 2. Wire stranded annealing and radiant tubes, high-speed gas burners, wire mesh belts in industrial furnaces. 3. Isolation tanks in ammonia reforming and catalytic support grids in nitric acid production. 4. Exhaust system components. 5. Combustion chambers for solid waste incinerators. 6. Pipe supports and ash handling components. 7. Exhaust gas detoxification system components. 8. Oxygen reheaters.
