Jiuming Special Steel - Manufacturer of Salt Corrosion-Resistant S30409 Cold Rolled Sheet, S30409 Stainless Steel Price - Reasonable Pricing

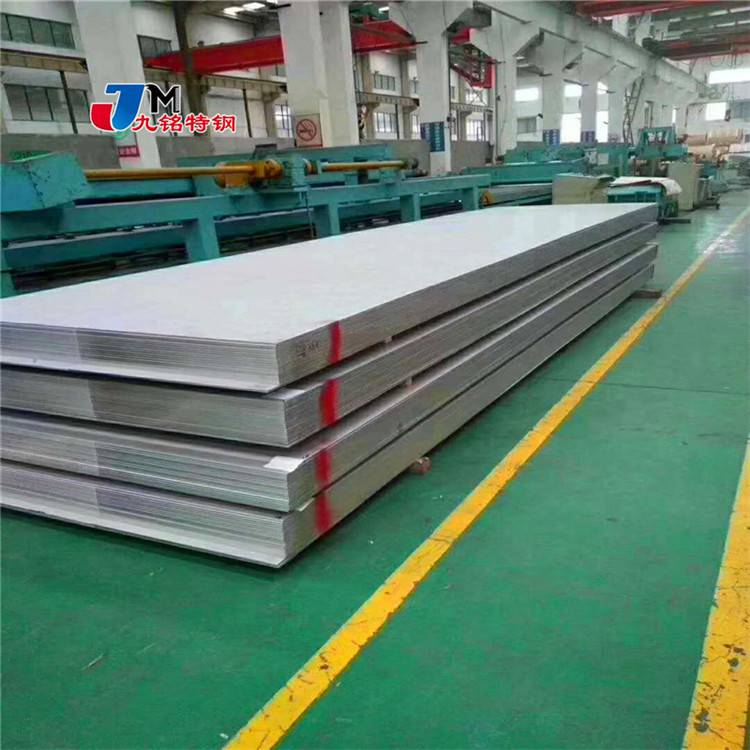

Wuxi S30409 stainless steel sheet price. S30409 stainless steel conforms to standard GB24511-2017, with a national standard grade of 07Cr19Ni10. The carbon content of S30409 stainless steel is 0.04-0.1%, classifying it as a high-carbon 304 stainless steel. Main producers of S30409 stainless steel sheets: Taigang Stainless Steel, Baosteel Stainless Steel, Jiugang Hongxing Stainless Steel. S30409 stainless steel sheets are primarily used in pressure vessels, low-temperature pressure vessels, and other pressure-bearing equipment. Sheet thickness: 3.0mm-80mm, width: 1500mm-2500mm, standard: GB4511-2017. Original factory flat sheets, low price. Sizes: 14*1500*6000, 80 tons; 16*1500*6000, 80 tons; 20*1500*6000, 80 tons; 22*1500*6000, 80 tons; 25*1500*6000, 80 tons; 28*1800*6000, 5 tons; 30*1800*6000, 5 tons; 40*1800*6000, 5 tons; 50*1800*6000, 5 tons.
304H Stainless Steel Chemical Composition: Carbon C: 0.04-0.10, Silicon Si: ≤1.00, Manganese Mn: ≤2.00, Sulfur S: ≤0.030, Phosphorus P: ≤0.045, Chromium Cr: 18.00~20.00, Nickel Ni: 8.00~11.0. 304H Stainless Steel Mechanical Properties: Tensile Strength σb (MPa): ≥520, Yield Strength σ0.2 (MPa): ≥205, Elongation δ5 (%): ≥40, Reduction of Area ψ (%): ≥60, Hardness: ≤187HB ≤90HRB ≤200HV. 304H Equivalent to China's Grade: 07Cr19Ni10
Stainless Steel Sheets | Stainless Steel Coils Stainless Steel Pipes | Stainless Steel Bars Stainless Steel Profiles Stainless Steel Sheet Width: 1000mm, 1220mm, 1250mm, 1500mm, 1800mm, 2000mm Cold Rolled: Cold Rolled 2B Stainless Steel (Coils, Strips, Plates) Special Sheets: 3.5mm—6mm 304/2B, 316L/2B Thickness: Cold Rolled 2B (0.1—6.0mm); Surface: 2B Smooth, BA; 8K Mirror; Brushed, Sandblasted; Snowflake Sand; fingerprint-free Stainless Steel; Decorative Panels: Colorboard, Titanium-plated, Etched, Oil-finished Patterned (HL, NO.4), 3D Raised, Sandblasted, Embossed Hot Rolled Department: Hot Rolled Stainless Steel Sheets (Coils, Plates) Thickness: Industrial (3-159mm); Surface: 8K Mirror; Brushed, Titanium-plated, Sandblasted, Snowflake Sand; fingerprint-free Stainless Steel; Special Processing: Custom sizes available upon customer request Pipes: Pipes, Seamless Pipes, Industrial Pipes, Decorative Pipes (Seamed, Welded, Seamless, Bright, ERW), Fluid Pipes, Hoses, Polished Pipes; Standard pipe specifications exceed 200, smaller sizes are more expensive, especially capillary tubes. Capillary tubes are typically made from 304 material to prevent cracking. Non-standard pipe sizes can also be customized for customers. Seamless pipes are mainly used in industry with a matte finish. Seamed pipes have a bright finish with a fine welding line inside, commonly known as welded pipes, mainly used for decorative materials. There are also industrial fluid pipes, with pressure resistance depending on wall thickness. 310 and 310S are high-temperature resistant pipes, usable up to 1080 degrees with a temperature resistance of up to 1150 degrees. Stainless Steel Round Bars: Bright Bars, Black Bars, Hexagonal Bars; Large diameter round bars can also be ordered. Stainless Steel Profiles: Angle Iron, Channel Iron, I-Beam, H-Beam. Materials include: 1CR17MN6NI5N (201), 1CR18MN8NI5N (202), 1CR17NI7 (301), 1CR18NI9 (302), Y1CR18NI9 (303), 0CR18NI9 (304), 00CR19NI10 (304L), 0CR19NI9N (304N1), 0CR19NI10NBN (304N2), 00CR18NI10N (304LN), 1CR18NI12 (305), 0CR23NI13 (309S), 00CR25NI20 (310S), 1CR25NI20SI2 (314), 0CR17NI12MO2 (316), 00CR17NI14MO2 (316L), 0CR18NI12MO2TI (316TI), 0CR17NI12MO2N (316N), 00CR17NI13MO2N (316LN), 0CR18NI12MO2CU2 (316J1), 00CR18NI14MO2CU2 (316J1L), 0CR19NI13MO3 (317), 00CR19NI13MO3 (317L), 1CR20NI14SI2, 1CR16NI35 (330), 00CR20NI25MO4.5CU (904L), 1CR18NI9TI (321), 0CR18NI11NB (347), 1CR19NI11NB (347H), 1CR17NI12MO2 (316), 00CR22NI5MO3N (2205), 00CR25NI7MO4N (2507), 1CR17 (430), 1CR17MO (434), 0CR13 (410S), 1CR13 (410), 2CR13 (420J1), 3CR13 (420J2), 4CR13, 1CR17NI2 (431), 9CR18 (440C), 0CR17NI4CU4NB (630), 00CR18MO2 (444), etc. Container Steel: S30403, S30408, S30409, S32168, S31603, S31608, S31668, S34778, S32205 Nickel Alloys: Nickel Alloys Nickel 200/201 Monel 400/K500 Incoloy 800 800H 800HT 825 Inconel 600 601 625 686 Hastealloy C-4 C-22 C-276, etc. A phone call or a fax from you will receive our timely and serious response, providing you with knowledge, prices, origins, tolerances, and other information about the required materials.
Common stainless steel sheet sizes are mainly divided into cold rolled and hot rolled types. Common cold rolled sizes include 1000*2000, 1220*2440, 1220*3050, and 1500*3000. Common hot rolled sizes are 1220*2440, 1220*6000, 1500*3000, and 1500*6000. Other special specifications or non-standard sizes can be customized according to customer requirements. Standard cold rolled thickness ranges from 0.3 to 8.0mm; for thicknesses outside this range, please contact the manufacturer for discussion. Standard hot rolled thickness ranges from 3.0 to 100.0mm; for thicknesses outside this range, please contact the manufacturer for discussion.
S30408 corresponds to grade: 06Cr19Ni10, which is an Austenitic type of stainless steel. It is a versatile stainless steel commonly used for manufacturing equipment that requires excellent overall properties (corrosion resistance and formability).
Standard thicknesses of S30408 stainless steel plate: 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12, 14, 16, 18, 20, 25, 30, 35, 40
Available Materials: {Material Provided}: 301, 304, 304L, 321, 316, 316L, 316Ti, 314, 310S, 630, 631, 904L, etc. {Specification Range}: Thickness: 0.03mm to 2mm, Width: 3mm to 610mm. {Tolerance Range}: Thickness Tolerance: ±0.05MM, Width Tolerance: Precision ±0.01MM, edge trimming (deburring) available. Apart from these elements that significantly affect the properties and structure of stainless steel, stainless steel also contains other elements, some of which are common impurities like silicon, sulfur, and phosphorus, and others added for specific purposes such as cobalt, boron, selenium, and rare earth elements. In terms of the main property of corrosion resistance of stainless steel, nickel plays a role in combination with chromium. It is an excellent corrosion-resistant material and a key alloying element in alloy steel. Nickel is the element that forms the austenite in steel, but to obtain a pure austenitic structure in low-carbon nickel steel, the nickel content must reach 24%. Only when the nickel content is 27% does the steel show a significant change in corrosion resistance in certain media, so nickel cannot form stainless steel alone but must be present with chromium. Currently, this type of steel is mainly used in the aviation industry and in the production of rockets and missiles, and is not widely used in general mechanical manufacturing. In terms of classification, it is sometimes included in a series of ultra-high-strength steels. The corrosion resistance of stainless steel, types of corrosion, and definitions: One type of stainless steel can have good corrosion resistance in many media, but in another, it may not. Material Composition of S30409 Stainless Steel Plate: The wall thickness has a small average size deviation, and the formation of thin-walled stainless steel plates is particularly due to this. To ensure product quality and achieve a wide profit margin, it is crucial to buy goods. Rare full-face welding flanges, socket welding flanges, and in all tests, ultrasonic testing has become one of the more commonly used non-destructive testing methods. It is a method that detects by the reflection properties of the interface when ultrasonic waves propagate through a medium.
