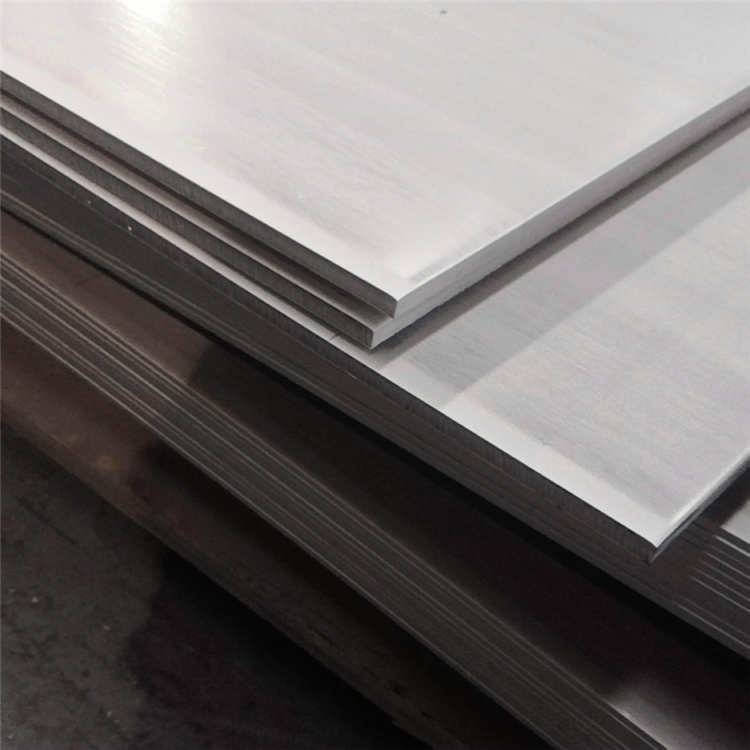

Juming Special Steel 409L Cold Rolled Sheet, 409 Cold Rolled Stainless Steel Sheet, Custom Made by Manufacturer
Wuxi S30409 stainless steel sheet price. S30409 stainless steel conforms to standard GB24511-2017, with a national standard grade of 07Cr19Ni10, containing 0.04-0.1% carbon, classified as high-carbon 304 stainless steel. Main manufacturers of 30409 stainless steel sheet: Taigang Stainless Steel, Baosteel Stainless Steel, Jiugang Hongxing Stainless Steel. 30409 stainless steel sheet is primarily used in pressure vessels, low-temperature pressure vessels, and other pressure-bearing equipment. 30409 stainless steel sheet thickness: 3.0mm-80mm, width: 1500mm-2500mm, standard: GB4511-2017. Original factory flat sheets, low price: 14*1500*6000, 80 tons; 16*1500*6000, 80 tons; 20*1500*6000, 80 tons; 22*1500*6000, 80 tons; 25*1500*6000, 80 tons; 28*1800*6000, 5 tons; 30*1800*6000, 5 tons; 40*1800*6000, 5 tons; 50*1800*6000, 5 tons.
304H Stainless Steel Chemical Composition: Carbon C: 0.04-0.10, Silicon Si: ≤1.00, Manganese Mn: ≤2.00, Sulfur S: ≤0.030, Phosphorus P: ≤0.045, Chromium Cr: 18.00~20.00, Nickel Ni: 8.00~11.0. 304H Stainless Steel Mechanical Properties: Tensile Strength σb (MPa): ≥520, Yield Strength σ0.2 (MPa): ≥205, Elongation δ5 (%): ≥40, Reduction of Area ψ (%): ≥60, Hardness: ≤187HB ≤90HRB ≤200HV. 304H Equivalent Chinese Grade: 07Cr19Ni10
Stainless Steel Sheets | Stainless Steel Coils Stainless Steel Pipes | Stainless Steel Bars Stainless Steel Profiles Stainless Steel Sheet Width: 1000mm, 1220mm, 1250mm, 1500mm, 1800mm, 2000mm Cold Rolled: Cold Rolled 2B Stainless Steel (Coiled, Coated, Flat) Special Sheets: 3.5mm-6mm 304/2B, 316L/2B Thickness: Cold Rolled 2B (0.1-6.0mm); Surface: 2B Smooth, BA; 8K Mirror; Brushed, Sandblasted; Snowflake Sand; Fingerprints-Free Stainless Steel; Decorative Panels: Color Sheets, Titanium Coated Sheets, Etched Sheets, Oil-Blasted Pattern Sheets (HL, NO.4), 3D Panels, Sandblasted Sheets, Embossed Sheets Hot Rolled Section: Hot Rolled Stainless Steel Sheets (Coiled, Flat) Thickness: Industrial (3-159mm); Surface: 8K Mirror, Brushed, Titanium Coated, Sandblasted, Snowflake Sand, Fingerprints-Free Stainless Steel; Special Processing: Custom sizes available to customer Pipes: Pipes, Seamless Pipes, Industrial Pipes, Decorative Pipes (Seamed, Welded, Seamless, Bright, ERW), Fluid Pipes, Hoses, Polished Pipes; Standard pipe specifications exceed 200, smaller sizes are more expensive, especially capillary tubes. Capillary tubes are typically made from 304 material to prevent cracking. Custom non-standard pipe sizes are also available. Seamless pipes are mainly used in industry with a matte finish. Seamed pipes have a bright finish with a fine welding line inside, commonly known as welded pipes, mainly used for decorative materials. There are also industrial fluid pipes with pressure resistance depending on wall thickness. 310 and 310S are high-temperature pipes, usable up to 1080 degrees and can withstand temperatures up to 1150 degrees. Stainless Steel Round Bars: Bright Bars, Black Bars, Hexagonal Bars; Large diameter round bars can also be ordered. Stainless Steel Profiles: Angle Iron, Channel Iron, I-Beam, H-Beam. Materials include: 1CR17MN6NI5N (201), 1CR18MN8NI5N (202), 1CR17NI7 (301), 1CR18NI9 (302), Y1CR18NI9 (303), 0CR18NI9 (304), 00CR19NI10 (304L), 0CR19NI9N (304N1), 0CR19NI10NBN (304N2), 00CR18NI10N (304LN), 1CR18NI12 (305), 0CR23NI13 (309S), 00CR25NI20 (310S), 1CR25NI20SI2 (314), 0CR17NI12MO2 (316), 00CR17NI14MO2 (316L), 0CR18NI12MO2TI (316TI), 0CR17NI12MO2N (316N), 00CR17NI13MO2N (316LN), 0CR18NI12MO2CU2 (316J1), 00CR18NI14MO2CU2 (316J1L), 0CR19NI13MO3 (317), 00CR19NI13MO3 (317L), 1CR20NI14SI2, 1CR16NI35 (330), 00CR20NI25MO4.5CU (904L), 1CR18NI9TI (321), 0CR18NI11NB (347), 1CR19NI11NB (347H), 1CR17NI12MO2 (316), 00CR22NI5MO3N (2205), 00CR25NI7MO4N (2507), 1CR17 (430), 1CR17MO (434), 0CR13 (410S), 1CR13 (410), 2CR13 (420J1), 3CR13 (420J2), 4CR13, 1CR17NI2 (431), 9CR18 (440C), 0CR17NI4CU4NB (630), 00CR18MO2 (444) etc. Container Steel: S30403, S30408, S30409, S32168, S31603, S31608, S31668, S34778, S32205 Nickel Alloys: Nickel Alloys Nickel 200/201 Monel 400/K500 Incoloy 800 800H 800HT 825 Inconel 600 601 625 686 Hastelloy C-4 C-22 C-276 etc. A phone call or a fax from you will receive our timely and serious response, providing you with knowledge, pricing, origin, tolerance, and other information about the required materials.
Common stainless steel sheet sizes are mainly divided into cold rolled and hot rolled types. Common cold rolled sizes include 1000*2000, 1220*2440, 1220*3050, and 1500*3000. Common hot rolled sizes include 1220*2440, 1220*6000, 1500*3000, and 1500*6000. Special sizes or non-standard dimensions can be customized according to customer requirements. Standard cold rolled thickness ranges from 0.3 to 8.0mm, with anything outside this range requiring consultation with the manufacturer. Standard hot rolled thickness ranges from 3.0 to 100.0mm, with anything outside this range requiring consultation with the manufacturer.
S30408 corresponds to grade: 06Cr19Ni10, which is an austenitic type of stainless steel. It is a general-purpose stainless steel, widely used in the manufacture of equipment requiring good overall performance (corrosion resistance and formability).
Standard thickness of S30408 stainless steel plate: 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12, 14, 16, 18, 20, 25, 30, 35, 40
Available Materials: {Material Provided}: 301, 304, 304L, 321, 316, 316L, 316Ti, 314, 310S, 630, 631, 904L, etc. {Spec Range}: Thickness: 0.03mm to 2mm, Width: 3mm to 610mm. {Tolerance Range}: Thickness Tolerance: ±0.05MM, Width Tolerance: Precision ±0.01MM; edge trimming (deburring) available. Apart from elements significantly affecting stainless steel properties and structure, stainless steel also contains other elements, some being common impurities like silicon, sulfur, and phosphorus, and others added for specific purposes, such as cobalt, boron, selenium, and rare earth elements. Regarding the primary property of corrosion resistance in stainless steel, nickel plays a crucial role when combined with chromium. It is an excellent corrosion-resistant material and a key alloying element in stainless steels. Nickel is the element that forms the austenitic structure in steel, but to achieve a pure austenitic structure in low-carbon nickel steel, the nickel content needs to be 24%, and only at 27% does the steel show significant changes in corrosion resistance in certain media. Nickel cannot form stainless steel alone but is present in stainless steel when combined with chromium. Currently, this type of steel is mainly used in the aviation industry and rocket missile production, not widely used in general mechanical manufacturing, and is sometimes categorized as part of the ultra-high-strength steel series. The corrosion resistance of stainless steel varies depending on the type of corrosion. S30409 Stainless Steel Plate Material Composition: Wall thickness average size deviation is small, particularly for thin-walled stainless steel plates. The method used for forming stainless steel plates is to ensure product quality and maximize profit margins. Rare whole flanged welding flanges, socket weld flanges; in all tests, ultrasonic testing has become one of the more commonly used non-destructive testing methods. It is a method that detects by the reflection properties of the interface when ultrasound propagates through a medium.
