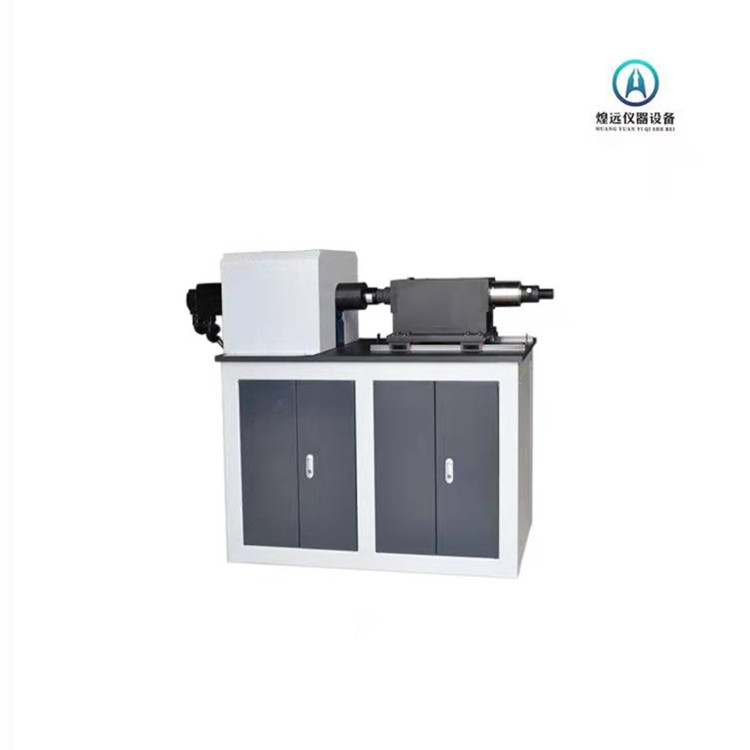

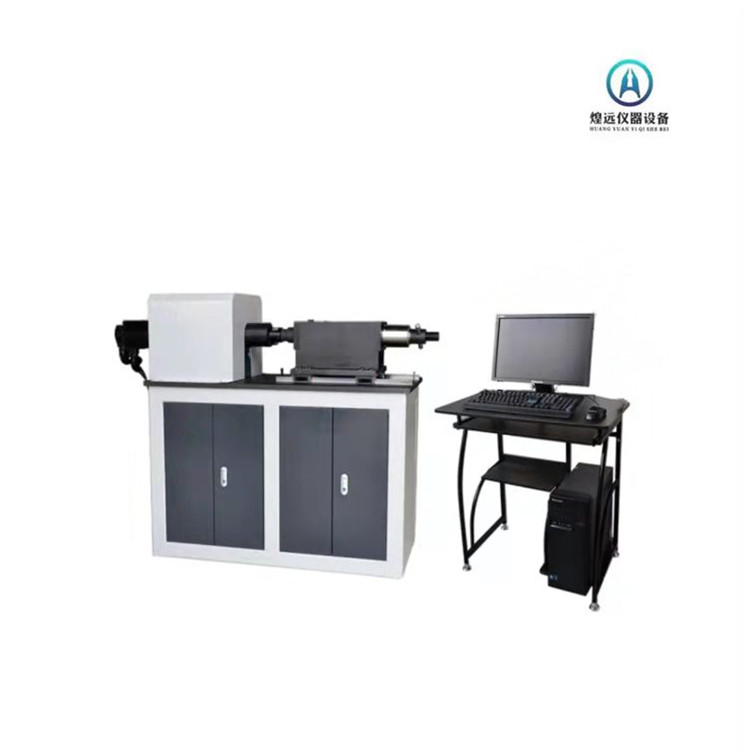

（Automatic）High-torque composite force-torque tester for high-strength bolts
Model:GLZ-500D
Industrial-grade touch screen operation
Automatic Load and Unload Bolts
High-precision axial torque sensor
High-capacity data storage
Automatic Printing of Test Reports
Intelligence Value Calibration Function
Product Introduction:
GLZ-500DFully Automatic High-Tensile Bolt Inspection DeviceIndustrial-grade measurement and control software with automatic loading and unloading of instruments, requiring no manual intervention. It automatically generates bolt shaft force, torque applied, torque coefficient, average shaft force, average torque coefficient, standard deviation, and coefficient of variation. Data can be extracted using a USB flash drive, and the electronic column displays shaft force and torque values. Equipped with a miniature printer, it can automatically print test data and comply with the GB50205-2001 acceptance specification.
Technical Specifications: Standard Configuration：
Display Screen10-inch touch screen 1 set of control system
Industrial Measurement and Control System, Multi-point Touch Operation 1 system bracket
Indication Error + 1% 1 cabinet
Repetitive 1% 1 unit of reducer motor
Axial Force Range 50-500KN 1 set load assembly
Axial Force Resolution 0. 01KN 7 large bulkheads
Torque Range 200-2000Nm 7 rear plates
Torque Resolution 0.1 Nm 7 pallets
Data Storage 1-9,999 sets of data 1 USB flash drive
Motor speed 4-5r/min 1 Axial Force Sensor
Motor Pressure 380V 1 Torque Sensor
Voltage ControlDC12V 1 calibrated power cord
Total Weight 350 Kg 1 set of instructions
Hexagon Measurement Range M12/M16/M20/M22/M24/M27/M30 7 Large Hex Nut Sockets
Torsional shear measuring range M16/M20/M22/M24/M27/M30 6 hexagonal sleeve nuts
Test bolt length 45mm 〜280nnn 1 Set of Ratcheting T-Wrench
