Oven Drying Cabinet

Oven/Dryer Introduction

Ovens and dryers are commonly used equipment in laboratories and industrial production for material drying, curing, aging, and testing, among other processes.

The device generates heat through heating elements and distributes the hot air uniformly throughout the box with a fan, thereby accelerating the drying process.

Based on different operating temperatures, those within 300℃ are considered standard drying ovens, while those operating between 300℃-500℃ are classified as high-temperature ovens.

Structural designs vary depending on different operating methods, including side-by-side doors, single-side doors, and types with track-driven or manually pushed/pulled trolleys.

Applications for Oven and Drying Cabinets

Oven dryers are primarily used for drying or curing painted parts, paint curing electrical cabinets, transformers, motors, and electric welding rods that have been coated with insulating paint.

Heat treatment of metal materials is available for applications such as tempering, aging, and other heat treatments for automotive piston rings, pistons, molds, and aluminum alloy parts.

Oven/Dryer Equipment Features

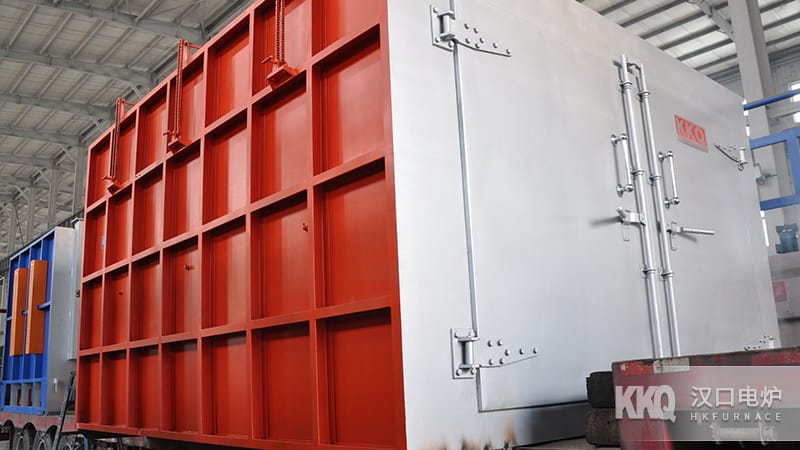

The cabinet structure is robust and durable.

The outer steel structure is made by tightly welded steel plates and shapes, featuring a durable housing structure with reinforced combination channels.

Easy installation; no need to dig a foundation pit; simply place on the ground for use.

Excellent thermal insulation properties

The insulation layer is constructed using high-purity ceramic fiber high-pressure modules with multiple anchoring, ensuring excellent thermal insulation properties.

Energy-saving and emission-reduction technology, all-fiber structure, rapid warming inside the box. Low thermal conductivity, low heat capacity, excellent anti-corrosion properties.

Expertly Designed Heating Elements

The heating element utilizes replaceable far-infrared plate or tubular heating elements, mounted on the side of the housing.

Excellent antioxidant properties, high-temperature resistance, and high load capacity. No cracking upon high-temperature heating, maintenance-free for years.

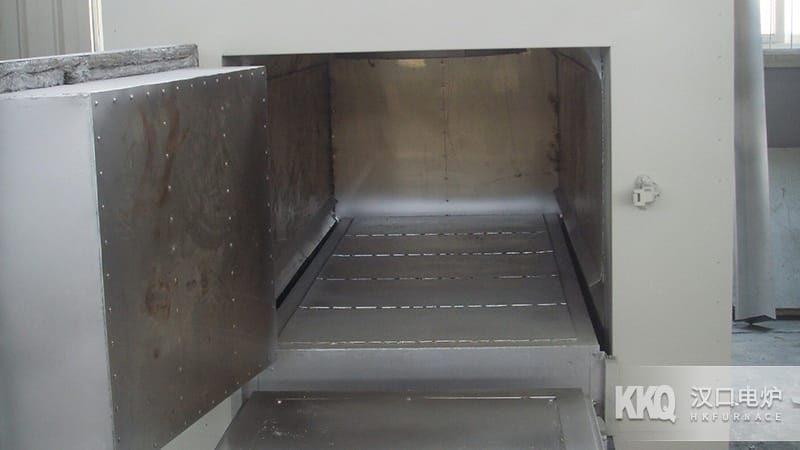

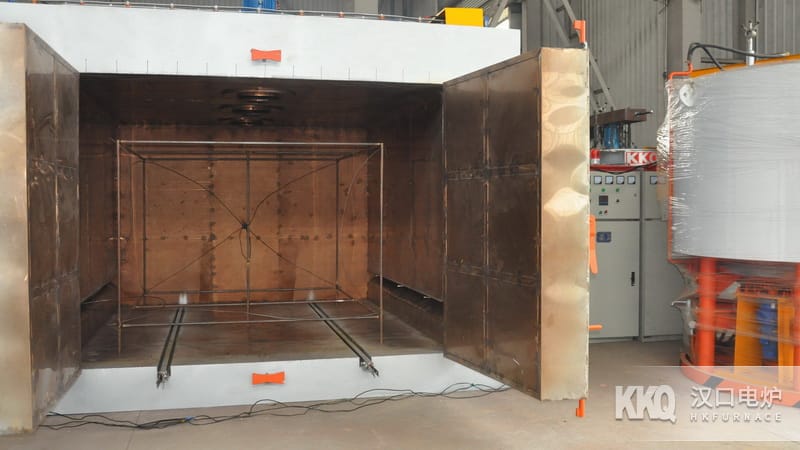

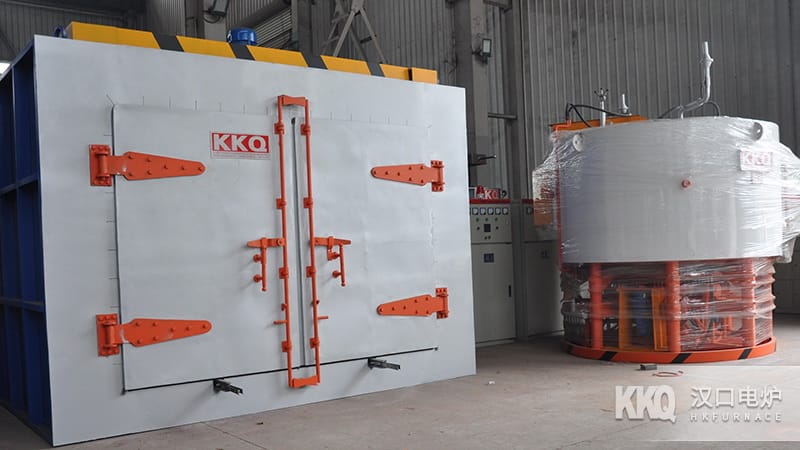

Side-opening box door, easy to operate

Double-sided or single-sided doors, custom-designed and manufactured according to the customer's actual needs.

Automatic power-off upon door opening, safe and quick operation, with a variety of fixtures for easy workpiece handling.

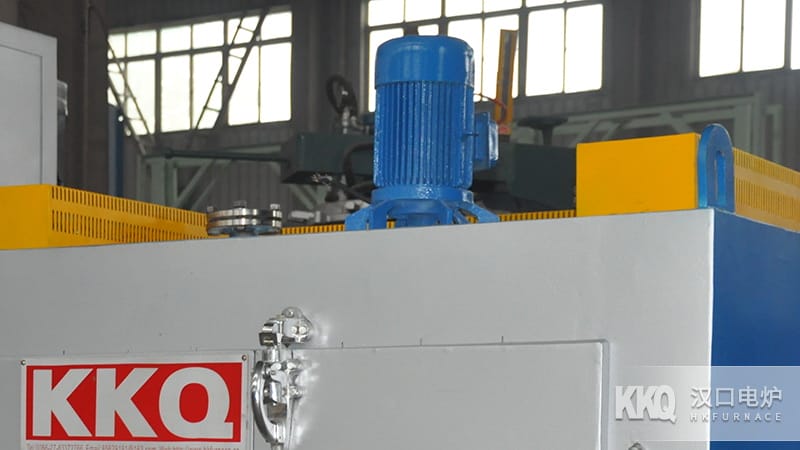

High-pressure blower with heat air internal recirculation channel, excellent temperature uniformity.

The dedicated high-pressure blower operates stably, requires minimal maintenance, and has a low failure rate with long continuous working hours.

Full stainless steel multi-channel hot air internal circulation ducting system, achieving stable and high-speed reciprocating circulation of hot air inside the box.

Specialty material boxes, enhance production efficiency

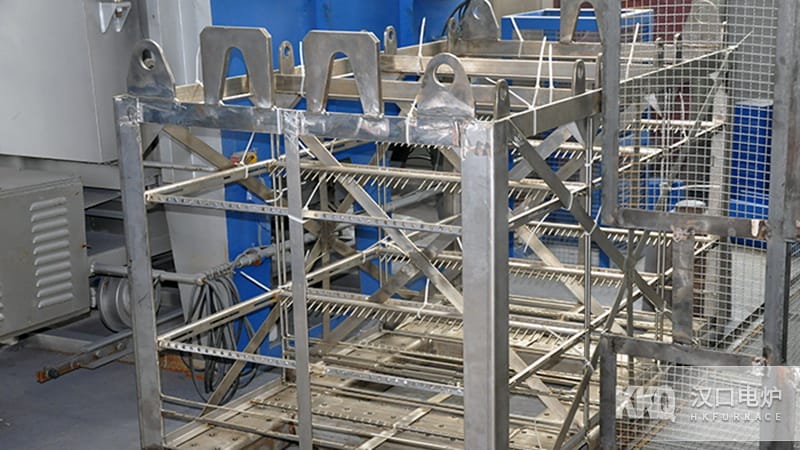

Design and manufacture various workpiece racks, featuring quick and easy loading and unloading.

All types of work holding devices, including material boxes, fixtures, and trays, are available.

A wide range of equipment types available to meet customer needs.

Electrically heated forced-air drying oven, high precision temperature control, uniform temperature design.

High-temperature oven, suitable for high-temperature heating applications above 300°C and around 500°C.

Trolley oven with electrically controlled in-and-out trolley, easy and quick loading and unloading of materials.

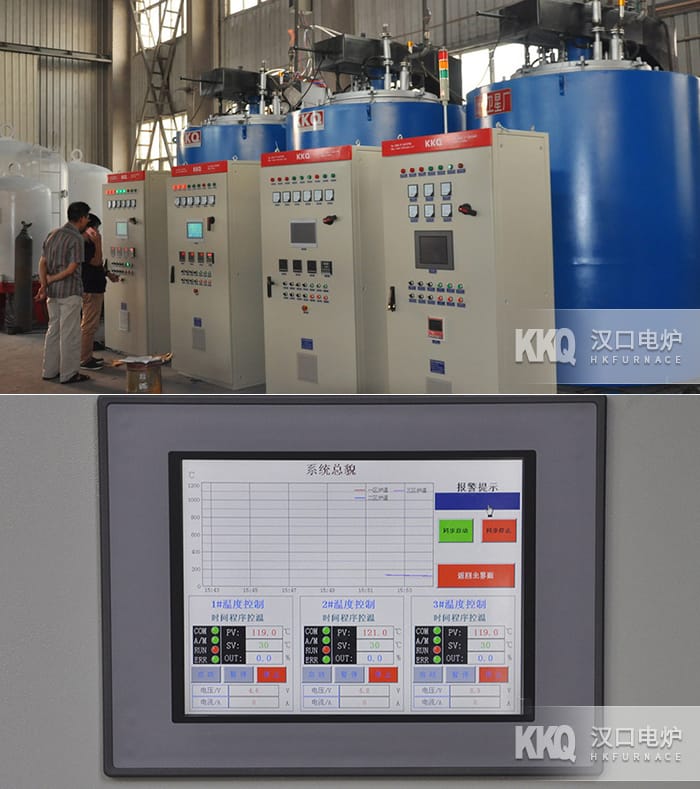

Precision automated temperature control

Hankou Electric Furnace Co., Ltd.'s independently developed touch screen graphical interface temperature control system.

The heat treatment process curve achieves high-precision execution in practical application, with a temperature control accuracy of ±1°C.

Customized zoning with independent temperature control, high-quality power regulation module, precision process curve automated control.
