Railroad guardrails are crucial for transportation infrastructure, demanding higher standards of safety and practicality.

Specification:

Web height x web width (center distance): 1.8m x 3.0m; 2m x 3m; 2.6m x 2.8m; 3m x 3m

Standard upright requirements: φ48 × 2.5mm/2.0mm/1.8mm

Fiber diameter range: 3.0mm to 5.0mm

Mesh Size: 50mm x 200mm; 70mm x 150mm

Structure:

Pillars are available in galvanized steel pipe, peach-shaped columns, rafter columns, and C-shaped steel, while mesh panels come in plastic-coated wire mesh, PVC-coated welded wire mesh, knitted mesh, steel mesh, and perforated mesh. The general structure consists of pillars and frames connected by fasteners, which can also be directly clipped to pillars, bolted, or riveted with mesh panels, allowing for adjustable angles.

Select *low-carbon steel wire, woven and assembled; the grid structure is concise, easy to transport, and installation is not restricted by terrain undulations, especially adaptable to mountainous, sloping, and winding areas.

Purpose:

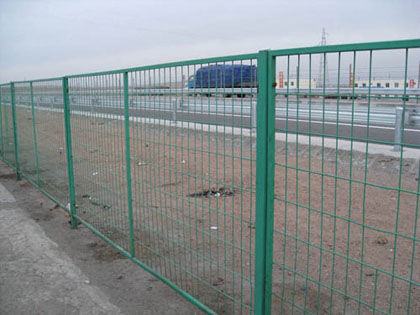

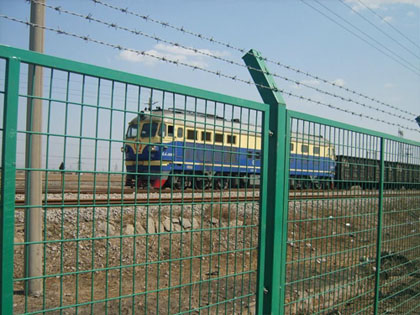

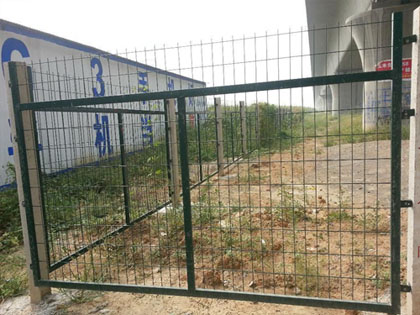

Primarily used for guardrails alongside highways, railways, and bridges; safety protection at airports and ports; as well as for isolation and protection in municipal construction projects such as parks, lawns, zoos, ponds, roads, and residential areas.
