Traditional prison concrete high walls have gradually been replaced by new steel mesh walls. The imposing concrete brick structures have disappeared, making way for a uniform perimeter of metal wire fencing, commonly referred to as prison metal wire mesh walls. Through these new prison steel mesh walls, the flowers and green trees inside the yard are clearly visible. Prison inmates no longer see only cold, concrete walls; instead, they can gaze through the prison's isolation steel mesh walls to see more of the outside scenery, including blue skies and white clouds.

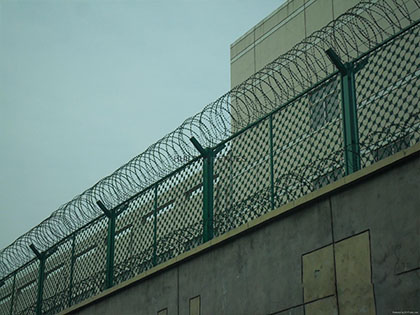

Prison steel mesh walls are the guardians of prisons, playing a crucial role in preventing inmates from escaping. Therefore, they are a vital prison safety protection facility, composed of welded steel mesh combined with a snake belly-type barbed wire. The product features a novel structure, sturdy and tight construction, flat mesh surface, even mesh holes, sharp barbs, anti-climbing properties, and strong corrosion resistance. Installed on the interior and exterior walls of the prison, as well as atop high walls, the snake belly-type barbed wire is added to the inside or top of the mesh wall, creating an impenetrable, unclimbable barrier. When paired with high-voltage shock electric fences and surveillance alarm systems, it ensures the complete safety of the prison.
What are the characteristics of prison steel mesh walls?
Features include sturdy and durable, aesthetically pleasing, razor-sharp, anti-climbing, wind-resistant, shockproof, shear-resistant, and corrosion-resistant.
Prison Steel Mesh Wall Specifications and Applications
Prison Steel Mesh Wall Specifications
Prison perimeter fence reinforcement mesh material usedMade of Q235 steel, this material is characterized by high toughness and hardness, making it an excellent choice for manufacturing high-quality prison mesh walls.
Prison perimeter fence reinforcement typically uses steel wire with a diameter of5mm, 6mm, 6.5mm mesh sizes; available with hole patterns of 50mm x 100mm, 50mm x 50mm, 50mm x 200mm, and 50mm x 150mm. The structure consists of first welding the mesh to a steel tube frame, which is a square or round tube welded frame. Connection plates for the individual pillars are then welded to the frame, and connected to the pillars with anti-theft bolts. To prevent disassembly of the mesh, a special anti-theft clamping mechanism is used for the mesh connections, effectively preventing deliberate destructive removal.
Prison fence enhanced height mesh frame selectionRectangular hollow sections or standard angle steel construction, commonly available sizes include rectangular hollow sections with cross-sections of 30mm*50mm, 20mm*40mm, and 30mm*30mm, as well as 3#, 4#, and 5# angle steel.
The specifications for the reinforced steel pole of the prison fence heightening mesh are made of steel pipes, commonly used sizes include:60mm x 60mm, 60mm x 80mm, 80mm x 80mm, or 100mm x 100mm square tubes, or round tubes with diameters of 60mm, 75mm, 88mm, 114mm, and 165mm. The top of the column is sealed with water-resistant treatment using steel plates of the same specifications.
Colors can be customized according to each prison's production requirements; standard colors include olive green, dark green, white, and gray.
Prison steel mesh fence applications
Prison steel mesh walls are primarily used in prisons, detention centers, jails, rehabs, and other high-security facilities.
Prison Steel Mesh Fencing Construction Plan

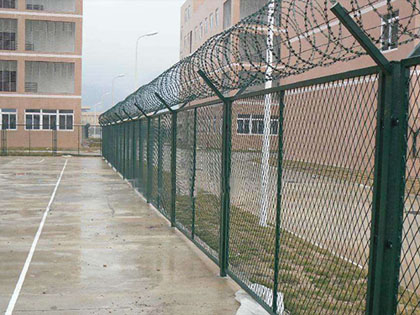

Prison steel mesh walls typically have a structure at the top.V-shaped brackets are welded to the uprights. Materials typically used are the same as or slightly smaller than those of the uprights. The installation of the V-shaped brackets is to secure the serpentine blade刺网 at the top of the isolation mesh, thereby effectively enhancing the anti-climbing and safety of the prison steel mesh walls.
