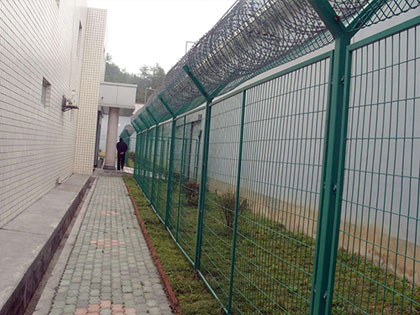

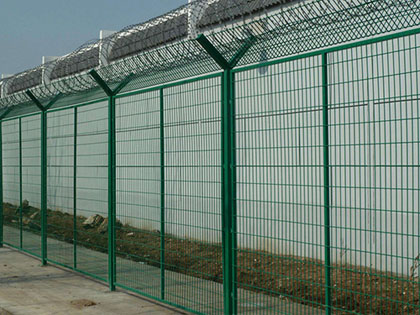

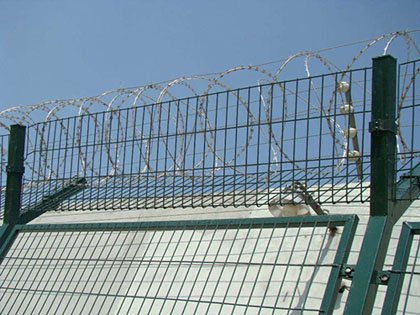

Prison Fence Mesh, also known as Prison Enclosure Mesh."Y-Shaped Security Defense Mesh" prison steel mesh wall, composed of V-shaped support pillars, reinforced welded mesh, security anti-theft connectors, and hot-dipped galvanized blade barbed wire, boasts high levels of strength and security defense. In recent years, it has been widely used in high-security areas such as prisons and airports.

Prison fence mesh specifications:

Dimensions:2300*3000mm

Silk yarn:5.0mm

Mesh:50mmX100mm，50mmX200mm。

Mesh withV-shaped reinforcing ribs, which significantly enhance the shock resistance of the fence.

Pole6060-inch rectangular steel with a V-shaped bracket at the top. Alternatively, use the 70mm x 100mm vertical hanging pillars. The product is hot-dipped galvanized and then coated with high-quality polyester powder electrostatic spray paint in popular RAL colors. Weaving method: woven and welded.

Connection Method: Primarily UsedM-card, card-to-card connection.

Prison Fence Mesh Advantages:

Features include aesthetic appeal, practicality, ease of transportation, and installation.

2. Sloped terrain is also applicable. The mesh is made into an angle-matching mesh, and the column connection points can be adjusted up and down to accommodate the terrain起伏.

3. The addition of four bent reinforcing ribs across the prison fence mesh increases overall strength and aesthetics significantly, with minimal cost increase, making it a popular choice both domestically and internationally.

Main Applications: Prisons, Airport Enclosures Private Area, Perimeter Fencing, Site Enclosure Development Zone Isolation Fence.

Manufacturing Process: Pre-straightening, cutting, pre-bending, welding, inspection, framing, destructive testing, beautification(PE, PVC, Hot Dip), Packaging, Inbound, Outbound.

Prison Fence Installation and Uses: The prison fence can be installed on flat ground or on existing walls for a secondary installation, effectively preventing escape. The pointed wire mesh barrier is formed by crossing and binding columns with ordinary barbed wire horizontally, vertically, and diagonally to create a barrier. The prison fence is primarily used for special areas, base enclosures, and trench enclosures, featuring easy installation and cost-effectiveness.
