Standard Specifications for Steel Mesh Fencing:

Fence Mesh Material: Low-carbon steel wire, welded blade barbs.

Guardrail Wire Diameter: UtilizingWelded with high-strength, low-carbon steel wire over 4.0mm.

Fence Mesh Aperture:50mmx100mm，50mmx200mm。

Fence meshV-shaped reinforced ribs, significantly enhancing the shock resistance of the fence.

Fence Netting Post

Commonly provided6060mm, 80x80mm, or 100x100mm rectangular steel bars, with V-shaped brackets welded on top, and after being dipped in plastic coating, their corrosion resistance is significantly enhanced.

The V-shaped bracket is also available with a 70mm x 100mm hanging connection column. After hot-dip galvanizing, it is coated with high-quality polyester powder electrostatic spraying in *popular RAL colors. Not only does it look aesthetically pleasing, but it also enhances the anti-corrosion properties.

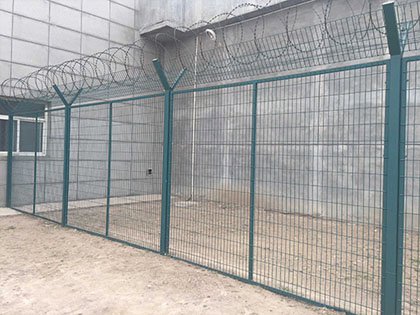

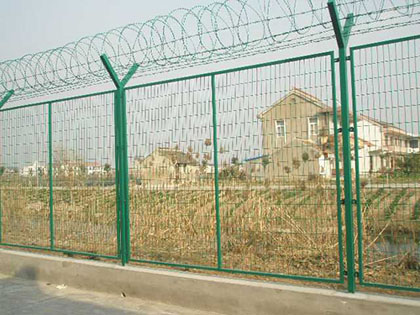

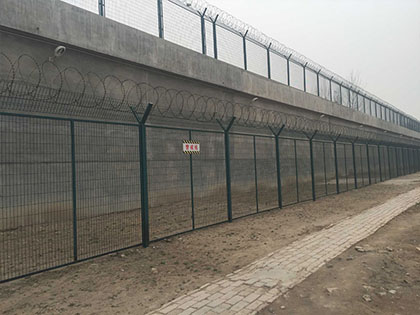

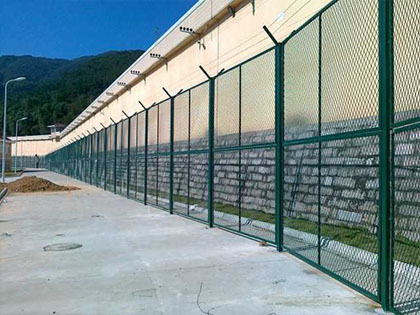

Steel mesh walls can be used in various fields such as ventilation areas, penitentiary sections, fences, and perimeters. Generally, they are categorized into two types: one mounted on the fence and the other on the ground.

The installation of steel mesh walls on the fence also comes in two types. One is to directly fix a flange base on the top of the fence. The other is to install and secure it on the side of the fence.

Ground-mounted steel mesh walls can also be divided into two types: one is fixed directly with flange bases, and the other is cast with concrete.
