Introduction to the Uses and Features of Frame Fence Mesh Products

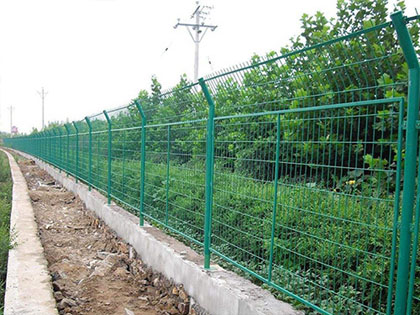

Frame fence net applications: Mainly used in highway (expressway guardrail net), railway, civil construction, water conservancy projects, and protection for various machinery and electrical equipment.
Frame Fence Mesh Features: Made from fully automatic cross-welded steel wire mesh, with clean welds and no damage, high strengthThe surface treatment method uses PE or PVC dipping on the exterior surface, a mature and effective technique that can adsorb and wrap around the product surface, with strong adhesion and corrosion resistance. PE and PVC materials are non-toxic and harmless, offering corrosion resistance, anti-aging, UV resistance, and high and low temperature tolerance, with an outdoor lifespan of up to 5-10 years. It has properties of resistance to corrosion over time and UV rays. The mesh surface has strong impact resistance. It boasts high strength, good rigidity, attractive design, wide field of view, easy installation, bright and comfortable feel.
Product Specifications of Frame Fence Mesh in Detail
Wired mesh: The frame of the woven wire mesh is produced using coil wire as raw material, material:Q195。
Frame Fence Mesh Surface Treatment: Galvanized, Hot-Dip Galvanized, Powder Coating. Hot-Dip Galvanized Frame Fence Mesh is preferred by customersPreferred surface treatment method.
Mesh size:1700mm high x 2500mm wide, 1800mm high x 2500mm wide, 1800x3000, 2000x3000, 1500x2500, etc.
Yarn diameterWire diameter range: 2.5mm - 6.0mm; Standard sizes: 3.0mm, 3.2mm, 3.5mm, 3.8mm, 4.0mm.
Mesh size:25×75mm to 150×300mm; 50×100/75×150/50×200/60×150* are commonly available.
Border: Border:20x30 or 20x40mm rectangular section welded pipes; 0.8/1.0/1.2/1.5mm thick square tubes.
Pole:48mm diameter round tubes in thickness of 1.0/1.2/1.5/2.0mm. Typically, standard round tubes are available, topped with a plastic cap or rainproof cover.
Surface anti-corrosion treatment for frame fence mesh:
Frame fence mesh products are produced by welding galvanized wire or hot-dipped galvanized steel wire after forming, then dipped in plastic; or low-carbon steel
Black silk welding directly dipped in plastic coating(PE); or first weld into shape and then apply electroplating + dipping in plastic; galvanized + spraying plastic; spraying paint, etc.
Frame fence net installation accessories: The mesh panels and posts of the assembled frame are secured with screws and various special metal clips, or connected with binding wire. The screws used are anti-theft automatic. The accessories for the frame fence net can also be specifically designed according to the different requirements of the customer.
