Usage:

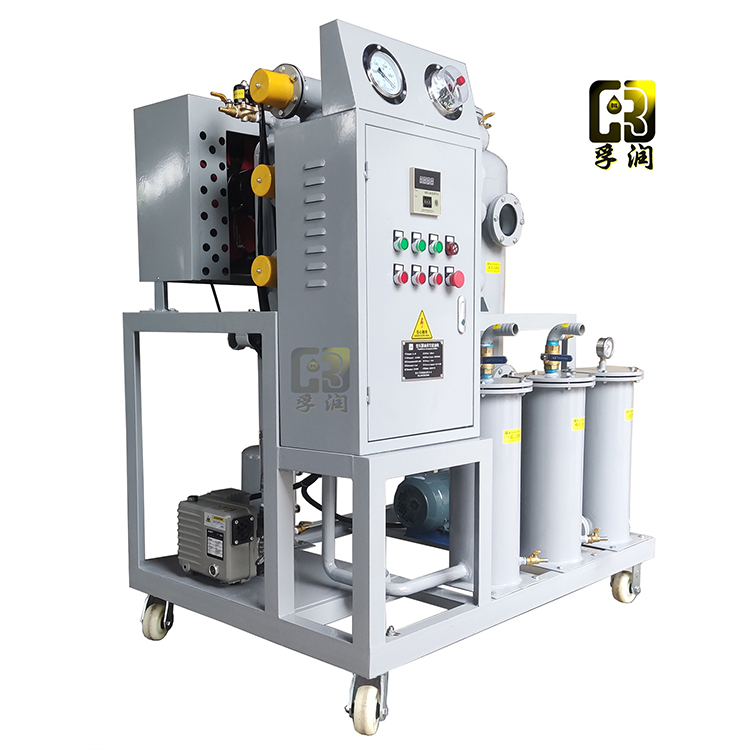

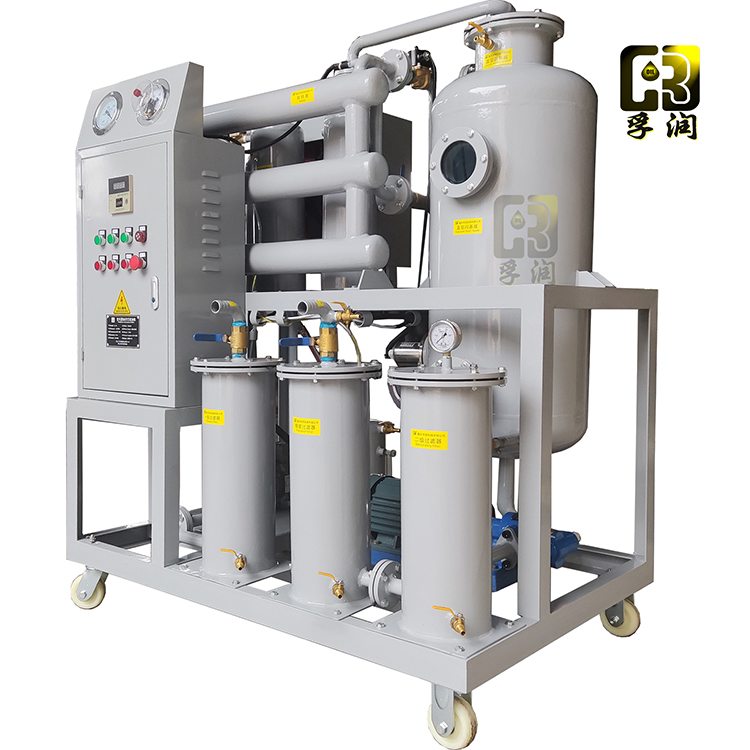

The ZL series transformer oil vacuum degassing filter is a new type of oil purification equipment developed and produced by Chongqing Fu Run Machinery Co., Ltd. utilizing vacuum drying principles, separation engineering, and precise filtration technology. It is an ideal device for filtering and purifying severely deteriorated and aged insulating oil.

The ZL series transformer oil vacuum filter is suitable for power plants, power stations, electric power companies, transformer industries, metallurgy, petrochemical, machinery, and other industries. Mainly used for various insulating oils, such as high-voltage transformers, current transformers, capacitors, circuit breakers, oil switches, and other transformer oils for purification. This equipment can purify degraded transformer, transformer, and oil switch transformer oils without interrupting power supply. It not only degases, dehydrates, and removes impurities but also has the function of removing impurities, acid value, and reducing dielectric loss in insulating oils, restoring the oil's service performance.

Features:

High-efficiency degassing and dehydration system, utilizing three-dimensional flash vaporization technology, quickly removes moisture and gases from oil.

The heating system utilizes an optimized pipeline design to ensure even heating and stable oil temperature.

Precision filtration system, multi-stage filtration with increasing density, high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.

Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and superior configuration ensure high-performance equipment operation.

Online oil filtering, capable of unattended operation; operating status indicated by indicator lights.

User-friendly design, low noise, easy to operate, long maintenance intervals, low energy consumption, cost-effective operation.

The entire unit is equipped with interlocked safety protection, with the oil filling and heating systems interlocked to prevent adverse effects from incorrect operation.

Filter core replacement indicator, filter core saturation shutdown device.

Features a leakage and overloading shutdown device to protect the motor.

Sequence and phase loss protection features, sudden shutdown safety mechanism.

Optional Modes:

PLC intelligent control, touch screen operation, and dynamic display are available as options according to user requirements.

Choose online moisture measurement instrument, online pressure resistance value tester.

Optional water ring vacuum pump available.

Optional flow meters with cumulative function.

The complete structure can be made into mobile, fixed, trailer-mounted (half or full axle), fully enclosed, awning-style, canvas tent, and open-style.

*The appearance, dimensions, and technical specifications of the equipment are for reference only and may vary slightly with the continuous development of the product. Please refer to the actual product for accuracy.*
