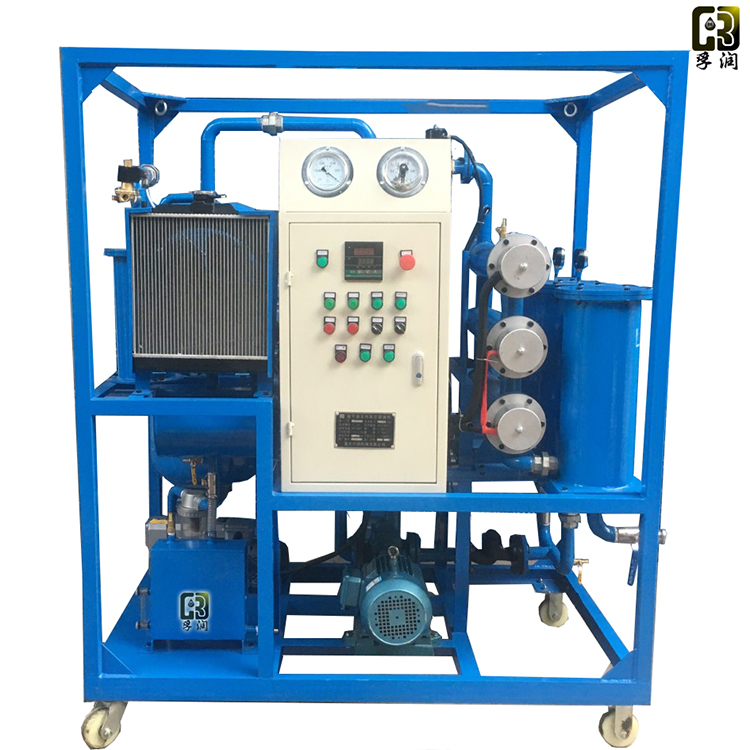

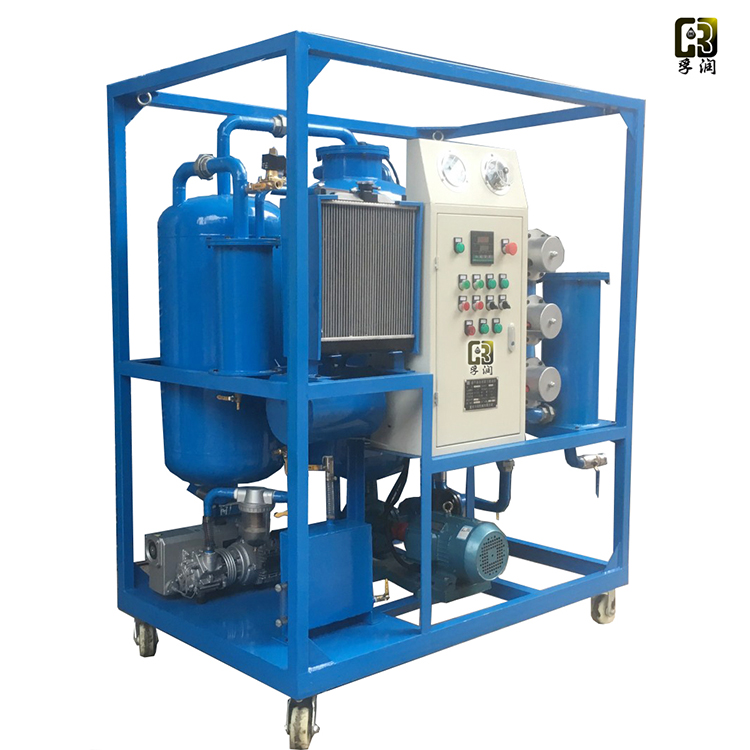

TY Series Turbine Oil (Steam Turbine Oil) Vacuum Filtration Machine

Usage:

TY Series Turbine Oil (Steam Turbine Oil) Vacuum Filtration Machine, specifically designed for purifying turbine oil (steam turbine oil) and low-viscosity circulating lubricating oil in generator sets. Suitable for industries such as power, chemical, petroleum, metallurgy, mining, railway, aviation, shipping, and machine processing. Mainly targets contaminated oil to remove water, gases, acid value, mechanical impurities, and solid particles. Solves the issue of rusting on various components, failure of speed regulation, and the inability of the oil to function effectively due to dirtiness, caused by issues such as loose shaft seals, steam leakage in steam seals, leaks in the cool oilers, and poor water-removing effect of the oil purification equipment in existing generator sets.

TY Series Turbine Oil Vacuum Filtration Machine, in addition to removing water, breaking emulsions, and purifying filtration, can also be connected in series with a power generation set for online operation. It regularly clears various solid particles and mechanical impurities affecting the normal operation of the oil in the pipeline and equipment of the power generation set. The turbine oil (turbine oil) treated by the clean oil machine meets the quality standard for turbine oil during power plant operation, GB/T 7596-2000.

Features:

This series of equipment utilizes reinforced oleophilic and hydrophobic technology, altering the oil-water interface. It combines the advantages of gravity separation, vaporization, coalescence, and vacuum separation into one.

Highly efficient in removing impurities, large-area and deep-layer precision filter materials can remove fine particles from oil.

Dehydration and degassing systems, utilizing three-dimensional evaporation technology and multi-level oil-water separation techniques, quickly separate moisture and gases from the oil.

The heating system features an optimized pipeline design for even heating and stable oil temperature.

Precision filter system, multi-stage filtration with increasing encryption, high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.

Advanced automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and superior configuration ensure high-performance operation of the equipment.

Available with explosion-proof devices upon customer's request, explosion-proof grades include ExdII BT4, ExdII CT4.

Online oil filtering, can operate unmanned, with operating status indicated by indicator lights.

User-friendly design, low noise, easy to operate, long maintenance intervals, low energy consumption, cost-saving operation.

The entire unit is equipped with interlocked safety protection, with the oil filling and heating systems interlocked to prevent adverse effects from incorrect operation.

Filter element replacement indicator, filter element saturation shutdown device.

Features a leakage and overload shutdown device to protect the motor.

Sequence and phase loss protection features, with a sudden shutdown safety mechanism.

※ The equipment's appearance, dimensions, and technical specifications are for reference only and may vary slightly with the continuous development of the product. Please refer to the actual product.

Four: Workflow

During operation, the vacuum oil purifier first feeds the contaminated oil into an initial filter to remove larger mechanical impurities. The oil then enters an electric heater, where it is heated to reduce viscosity. Subsequently, the oil is separated from large water content through coalescence and sedimentation. Finally, through a series of actions including painting, flash vaporization, and atomization, the water in the oil is converted from a liquid to a vapor state, condensed into liquid droplets through the gas pipeline, and then discharged. At this point, the oil passes through an oil pump and through a two-stage filter and a precision filter via the oil pipeline, resulting in oil that is free of impurities and water. This oil meets the standards for recycled oil use and can be reused, thereby saving oil costs. For deep purification and filtration of the oil, it can be introduced into a regeneration tank to regenerate degraded oil, removing acid value, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)

V. Schematic of Vacuum Filtration Oil Machine
